KINO-G410 Min i-ITX Mo th e rb o a rd

P a g e 48

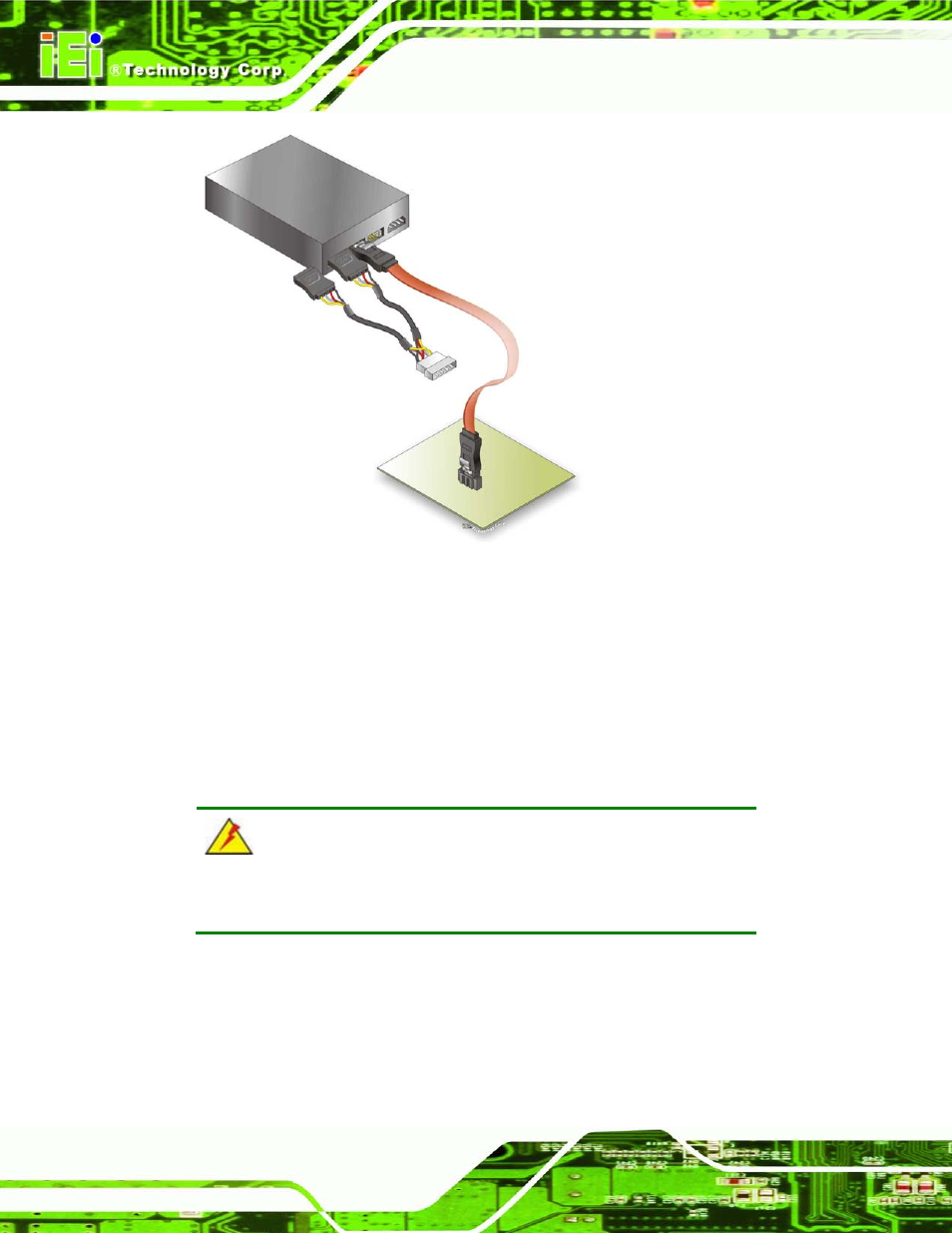

Figure 4-11: SATA Power Drive Connection

4.5.2 US B Ca b le (Du a l P o rt) with S lo t Bra c ke t

The KINO-G410 is shipped with a dual port USB 2.0 cable. To connect the USB cable

connector, please follow the steps below.

S te p 1:

Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

S te p 2:

Align the connectors. The cable has two connectors. Correctly align pin 1on

each cable connector with pin 1 on the KINO-G410 USB connector.
