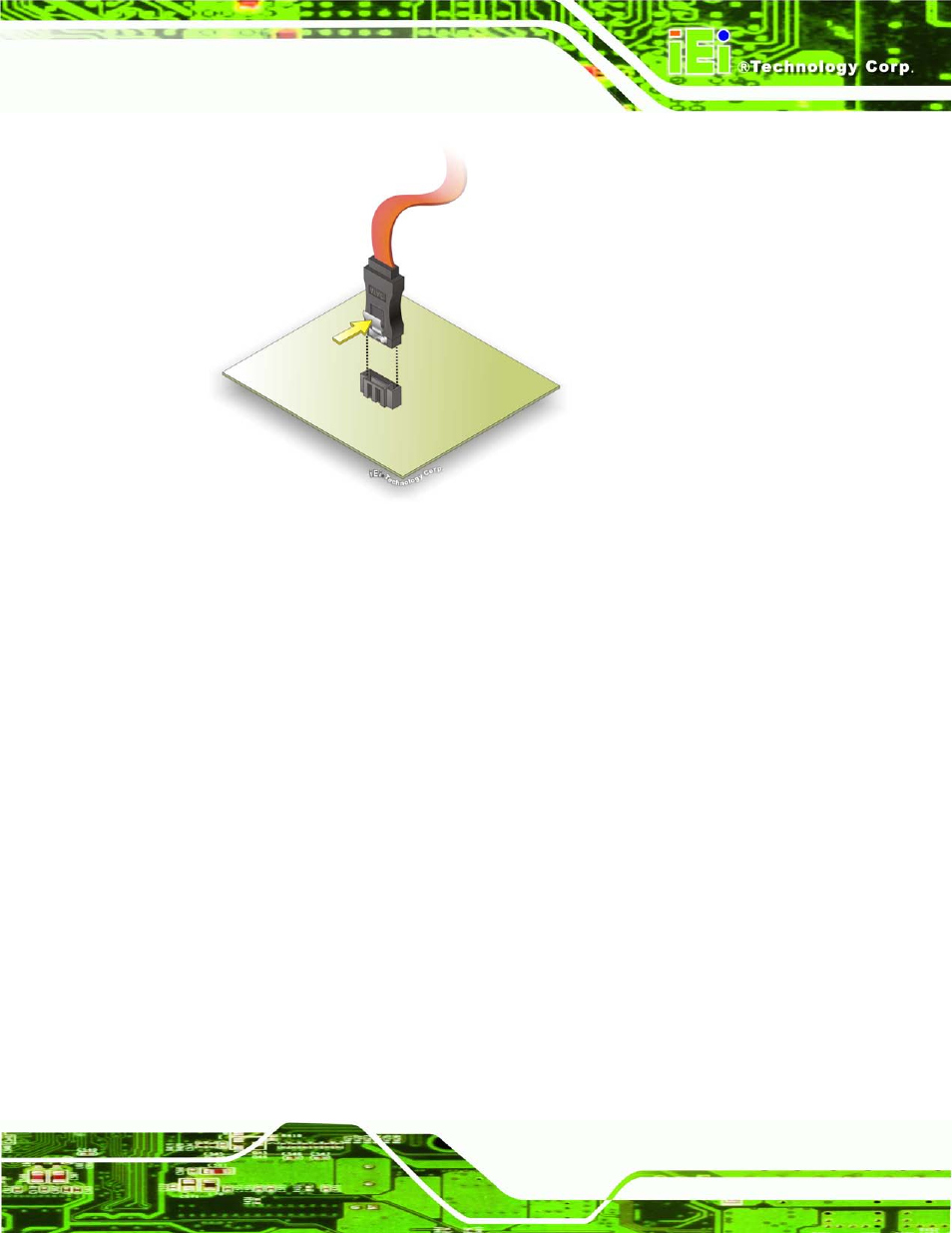

Figure 4-10: SATA Drive Cable Connection

S te p 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 4-11.

S te p 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See Figure 4-11.
