KINO-G410 Min i-ITX Mo th e rb o a rd

P a g e 30

3.3 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c to r P a n e l

The figure below shows the external peripheral interface connector (EPIC) panel. The

EPIC panel consists of the following:

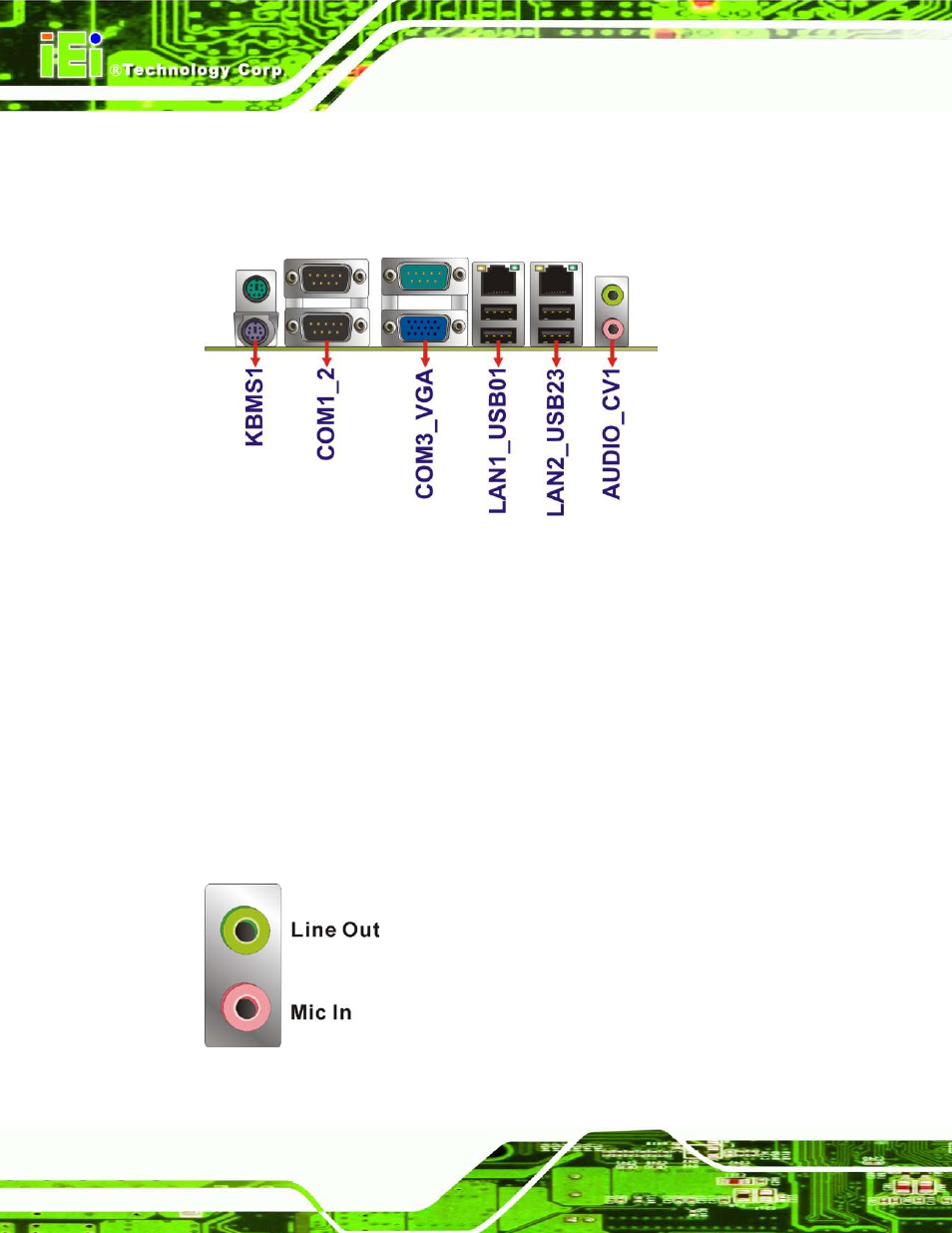

Figure 3-18: External Peripheral Interface Connector

3.3.1 Au d io Co n n e c to r

CN La b e l:

AUDIO_CV1

CN Typ e :

Audio jacks

CN Lo c a tio n :

See Figure 3-18

The audio jacks connect to external audio devices.

Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

Microphone (Pink): Connects a microphone.

Figure 3-19: Audio Connector
