KINO-G410 Min i-ITX Mo th e rb o a rd
P a g e 24
3.2.10 RS -232 S e ria l P o rt Co n n e c to r
CN La b e l: COM4, COM5
CN Typ e : 10-pin header
CN Lo c a tio n : See Figure 3-11
CN P in o u ts : See Table 3-11
This connector provides RS-232 communications.

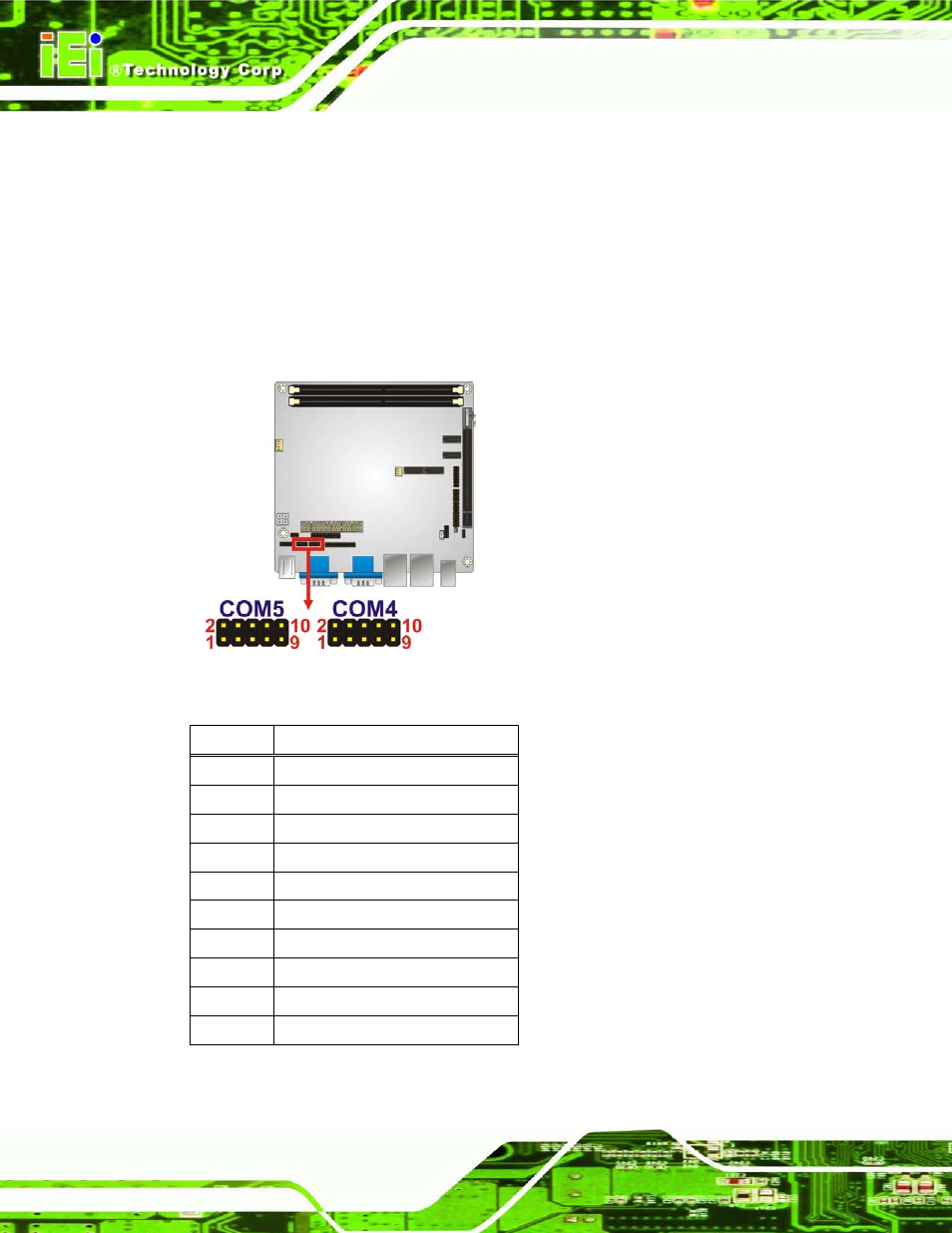

Figure 3-11: Serial Port Connector Location
Pin Description
1 Data Carrier Direct (DCD)
2 Receive Data (RXD)
3 Transmit Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request To Send (RTS)
8 Clear To Send (CTS)
9 Ring Indicator (RI)
10 GND
Table 3-11: Serial Port Connector Pinouts
