Pin Description
1 Battery+ (+3V)
2 Ground
Table 3-3: Battery Connector Pinouts
3.2.2 CP U Fa n Co n n e c to r
CN La b e l: CP U_FAN1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 3-3
CN P in o u ts : See Table 3-4
The fan connector attaches to a CPU cooling fan.

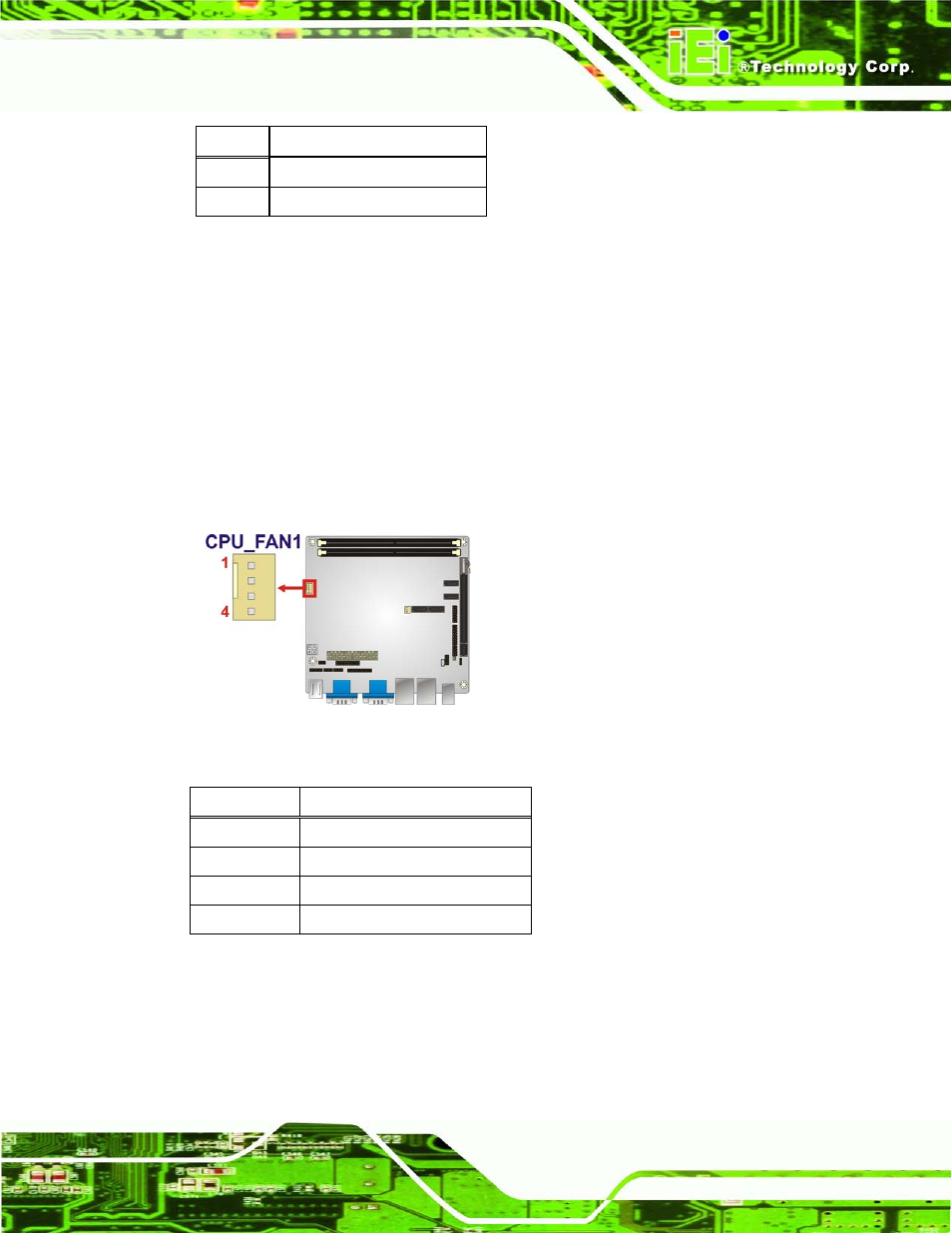

Figure 3-3: CPU Fan Connector Location
Pin Description
1 GND
2 +12 V
3 Fan In
4 Fan Control
Table 3-4: CPU Fan Connector Pinouts
