KINO-G410 Min i-ITX Mo th e rb o a rd
P a g e 33
3.3.5 US B Co n n e c to r
CN La b e l: US B01, US B23
CN Typ e : USB port
CN Lo c a tio n : See Figure 3-18
CN P in o u ts : See Table 3-20
The USB connector can be connected to a USB device.
Pin Description Pin Description
1 +5 V 2 +5 V
3 DATA- 4 DATA-
5 DATA+ 6 DATA+
7 GND 8 GND
Table 3-20: USB Port Pinouts
3.3.6 VGA Co n n e c to r
CN La b e l: VGA1
CN Typ e : 15-pin Female
CN Lo c a tio n : See Figure 3-18
CN P in o u ts : See Figure 3-22 and Table 3-21
The VGA connector connects to a monitor that accepts a standard VGA input.

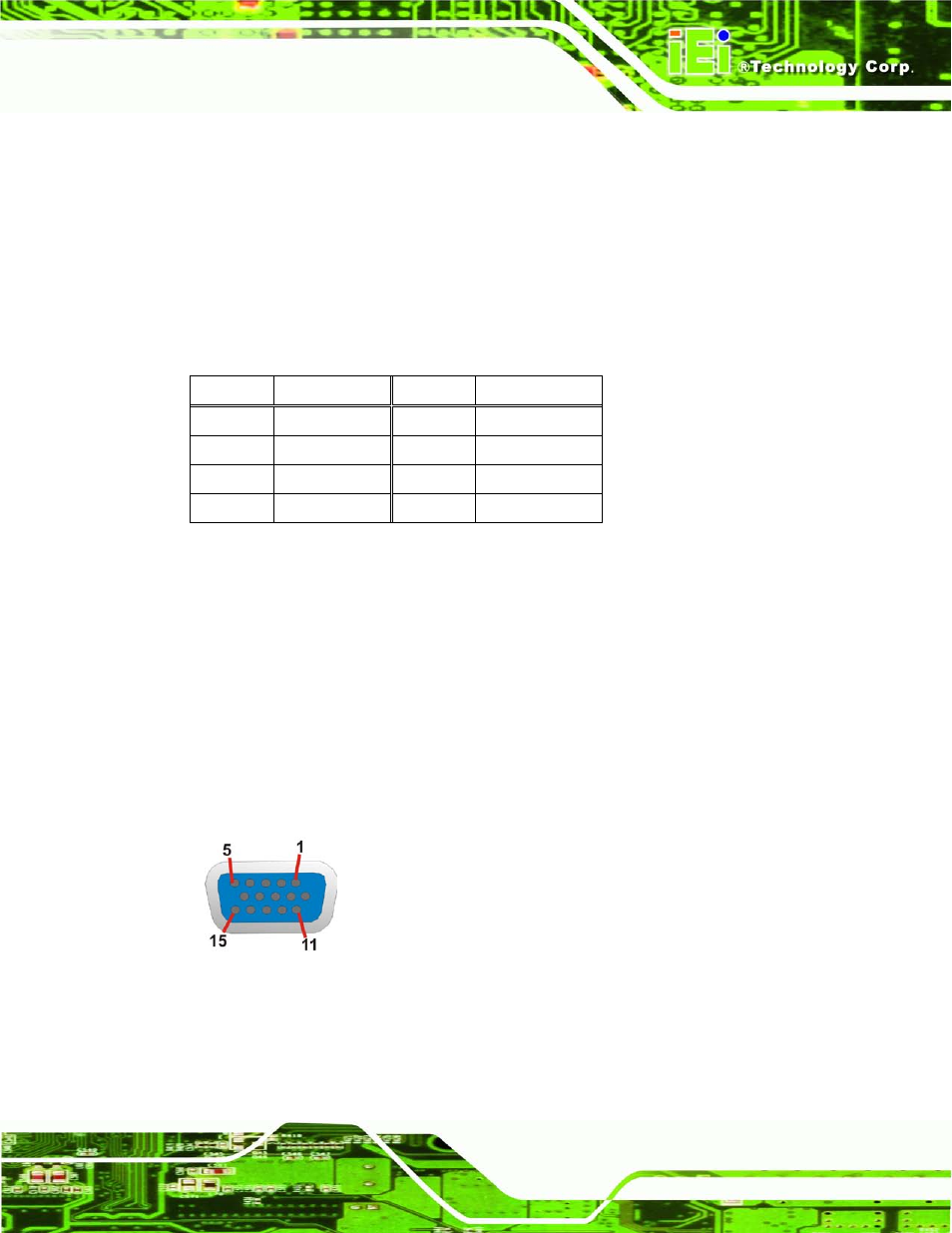

Figure 3-22: VGA Connector
