KINO-G410 Min i-ITX Mo th e rb o a rd
P a g e 31
3.3.2 Ke yb o a rd /Mo u s e Co n n e c to r
CN La b e l: KBMS 1
CN Typ e : PS/2
CN Lo c a tio n : See Figure 3-18
CN P in o u ts : See Table 3-17, Figure 3-20
The keyboard and mouse connector is a standard PS/2 connector.

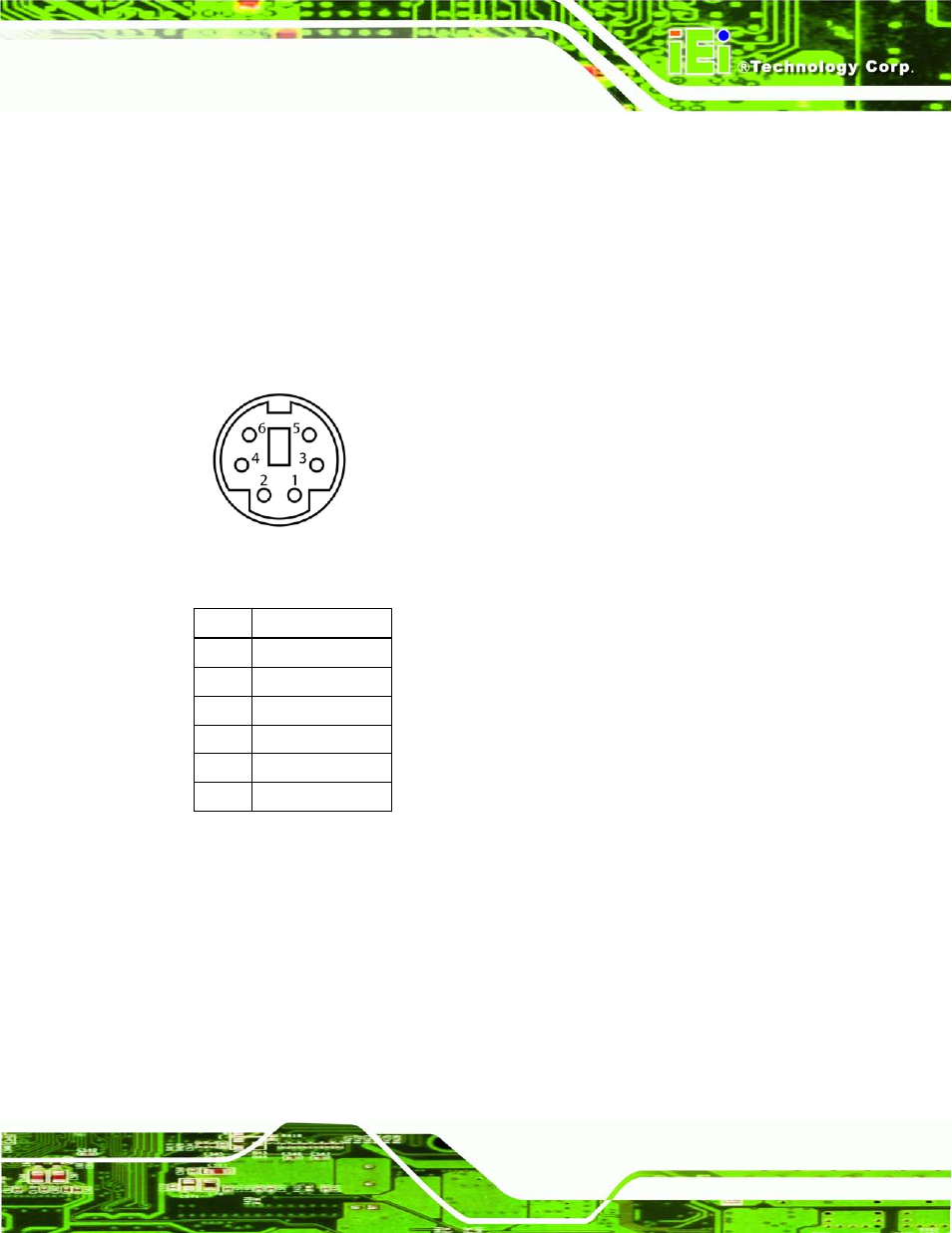

Figure 3-20: PS/2 Pinout and Configuration
Pin Description
1 KB DATA
2 MS DATA
3 GND
4 VCC (+5V)
5 KB CLOCK
6 MS CLOCK
Table 3-17: Keyboard Connector Pinouts
3.3.3 LAN Co n n e c to r
CN La b e l: LAN1, LAN2
CN Typ e : RJ-45
CN Lo c a tio n : See Figure 3-18
CN P in o u ts : See Table 3-18
The LAN connector connects to a local network.
