KINO-G410 Min i-ITX Mo th e rb o a rd
P a g e 16
Co n n e c to r Typ e La b e l
Audio connector Audio jack AUDIO_CV1
Keyboard/Mouse connector PS/2 KBMS1
LAN connector RJ-45 LAN1, LAN2
Serial port connector DB-9 COM1, COM2,
COM3
USB connector USB port USB01, USB23
VGA connector 15-pin Female VGA1
Table 3–2: External Peripheral Connectors
3.2 In te rn a l P e rip h e ra l Co n n e c to rs
The section describes all of the connectors on the KINO-G410.
3.2.1 Ba tte ry Co n n e c to r
CN La b e l: BAT1
CN Typ e : 2-pin wafer
CN Lo c a tio n : See Figure 3-2
CN P in o u ts : See Table 3-3
This is connected to the system battery. The battery provides power to the system clock to
retain the time when power is turned off.

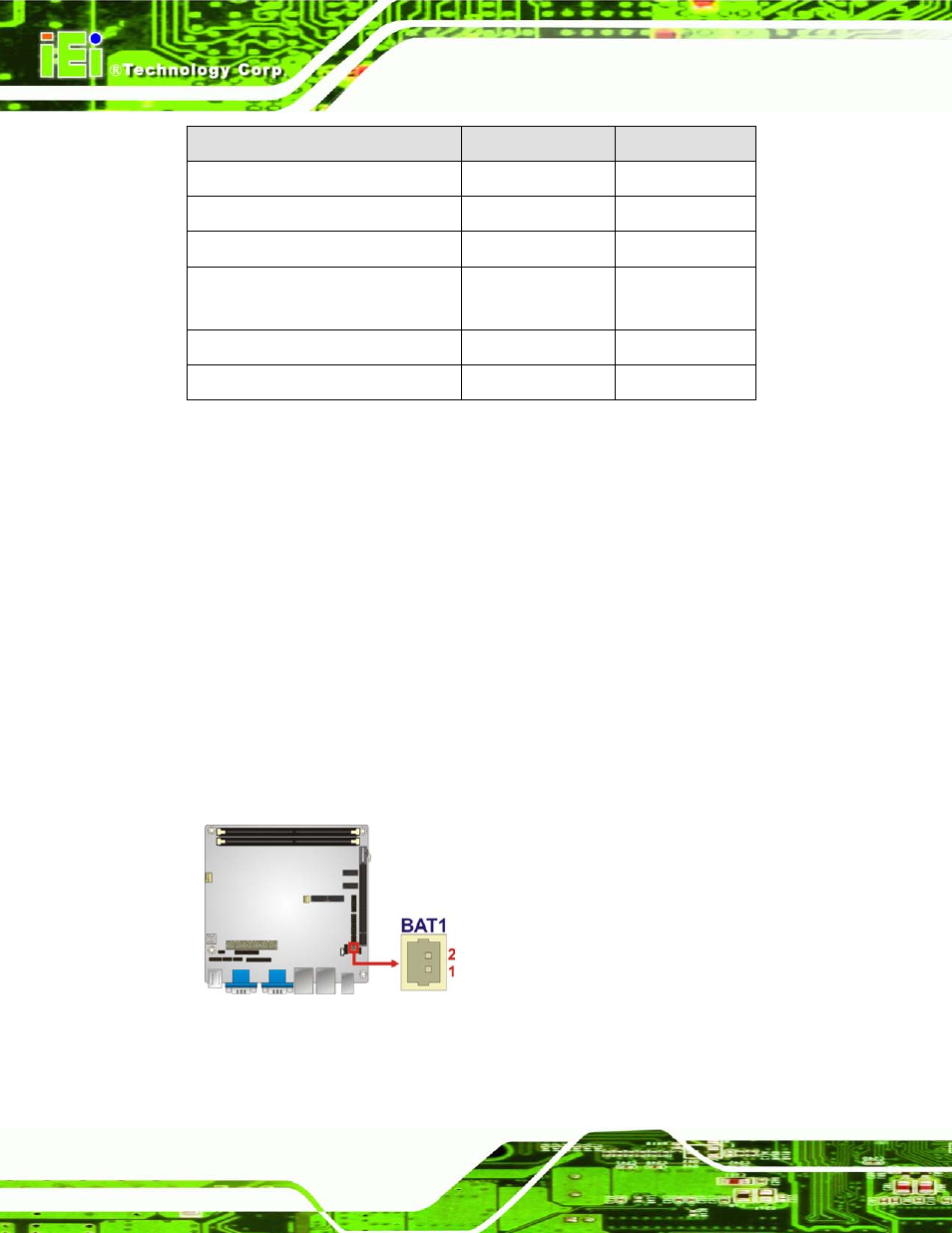

Figure 3-2: Battery Connector Location
