KINO-G410 Min i-ITX Mo th e rb o a rd
P a g e 18
3.2.3 S ys te m Fa n Co n n e c to r
CN La b e l: S YS _FAN1
CN Typ e : 3-pin wafer
CN Lo c a tio n : See Figure 3-4
CN P in o u ts : See Table 3-5
The fan connector attaches to a system cooling fan.

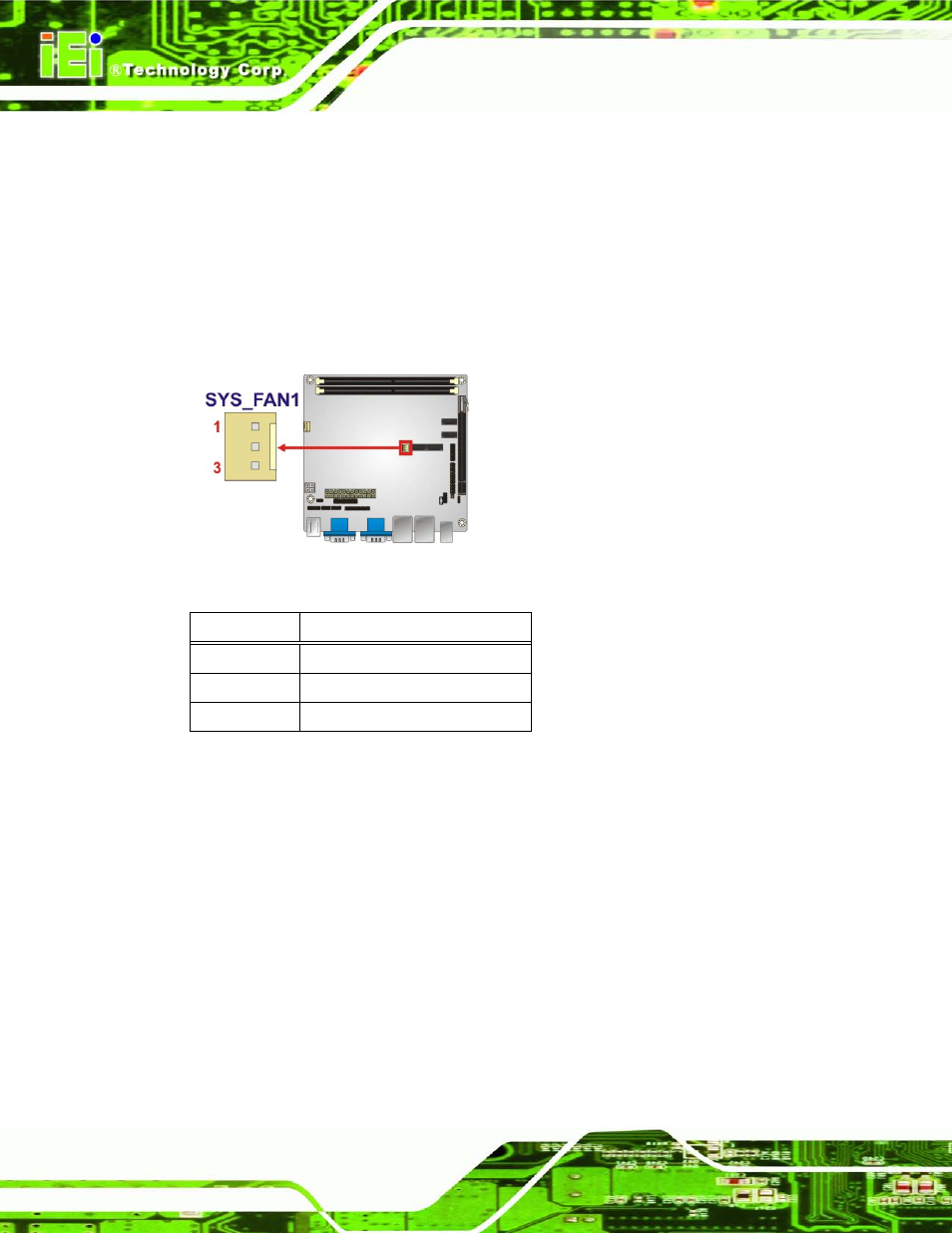

Figure 3-4: CPU Fan Connector Location
Pin Description
1 Fan In
2 VCC_FAN
3 GND
Table 3-5: CPU Fan Connector Pinouts
3.2.4 CP U P o we r In p u t Co n n e c to r
CN La b e l: CP U12V1
CN Typ e : 4-pin connector
CN Lo c a tio n : See Figure 3-5
CN P in o u ts : See Table 3-6
The CPU power input connector provides power to the CPU.
