Page 140: C.5 oth e r in fo rm a tio n

KINO-G410 Min i-ITX Mo th e rb o a rd

P a g e 128

C.5 Oth e r In fo rm a tio n

C.5.1 Us in g AHCI Mo d e o r ALi M5283 / VIA VT6421A Co n tro lle r

When the system uses AHCI mode or some specific SATA controllers such as ALi M5283

or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key

recovery. Please follow the steps below to install the SATA RAID/AHCI driver.

S te p 1:

Copy the SATA RAID/AHCI driver to a floppy disk and insert the floppy disk into

a USB floppy disk drive. The SATA RAID/AHCI driver must be especially

designed for the on-board SATA controller.

S te p 2:

Connect the USB floppy disk drive to the system.

S te p 3:

Insert the One Key Recovery CD into the system and boot the system from the

CD.

S te p 4:

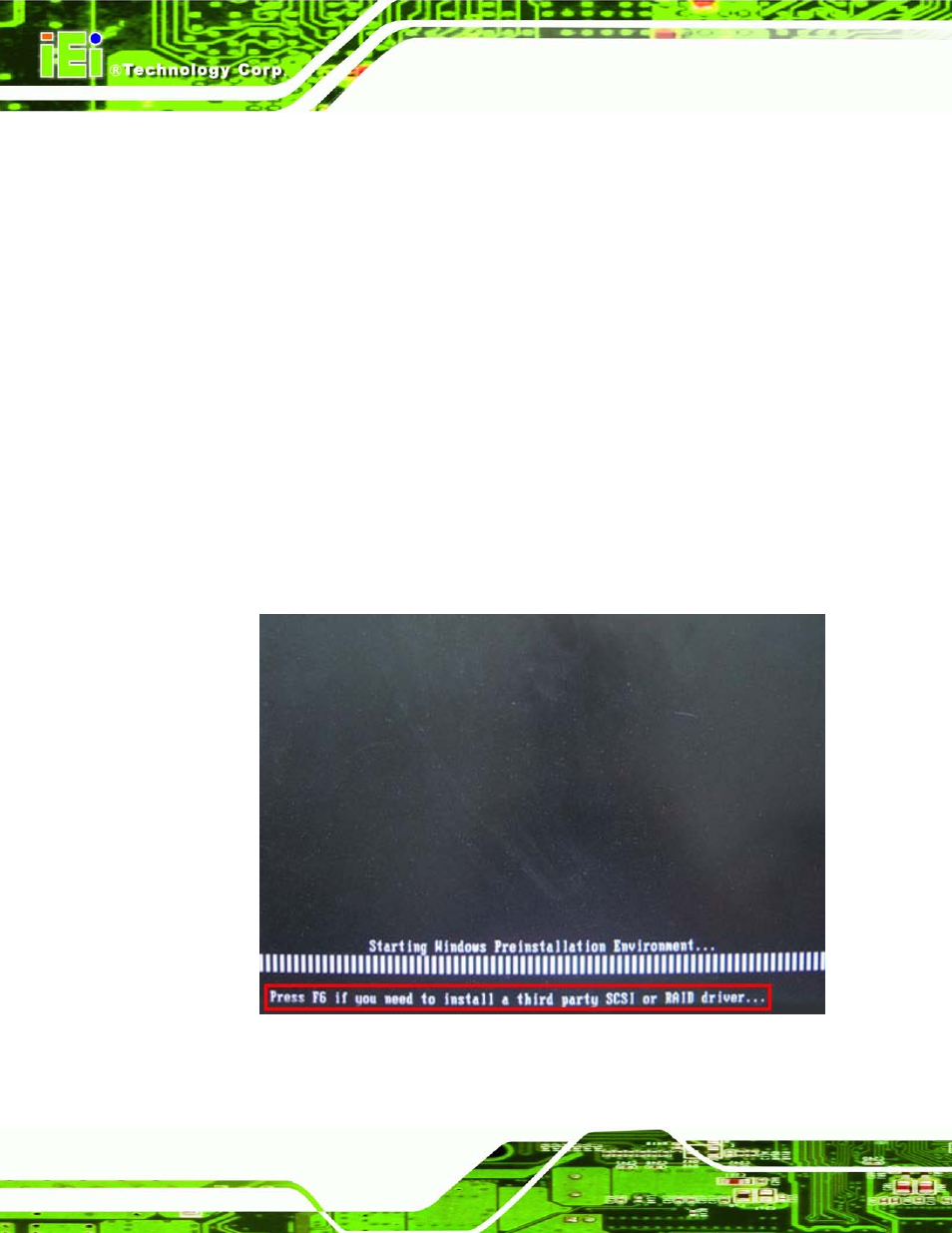

When launching the recovery tool, press <F6>.
