Pin Description Pin Description
1 +3.3V 2 GND
3 CS# 4 CLOCK
5 SO 6 SI
7 NC 8 NC
Table 3-14: SPI Flash Connector
3.2.15 US B Co n n e c to rs
CN La b e l: US B45, US B67
CN Typ e : 8-pin header
CN Lo c a tio n : See Figure 3-16
CN P in o u ts : See Table 3-15
The USB connectors connect to USB devices. Each pin header provides two USB ports.

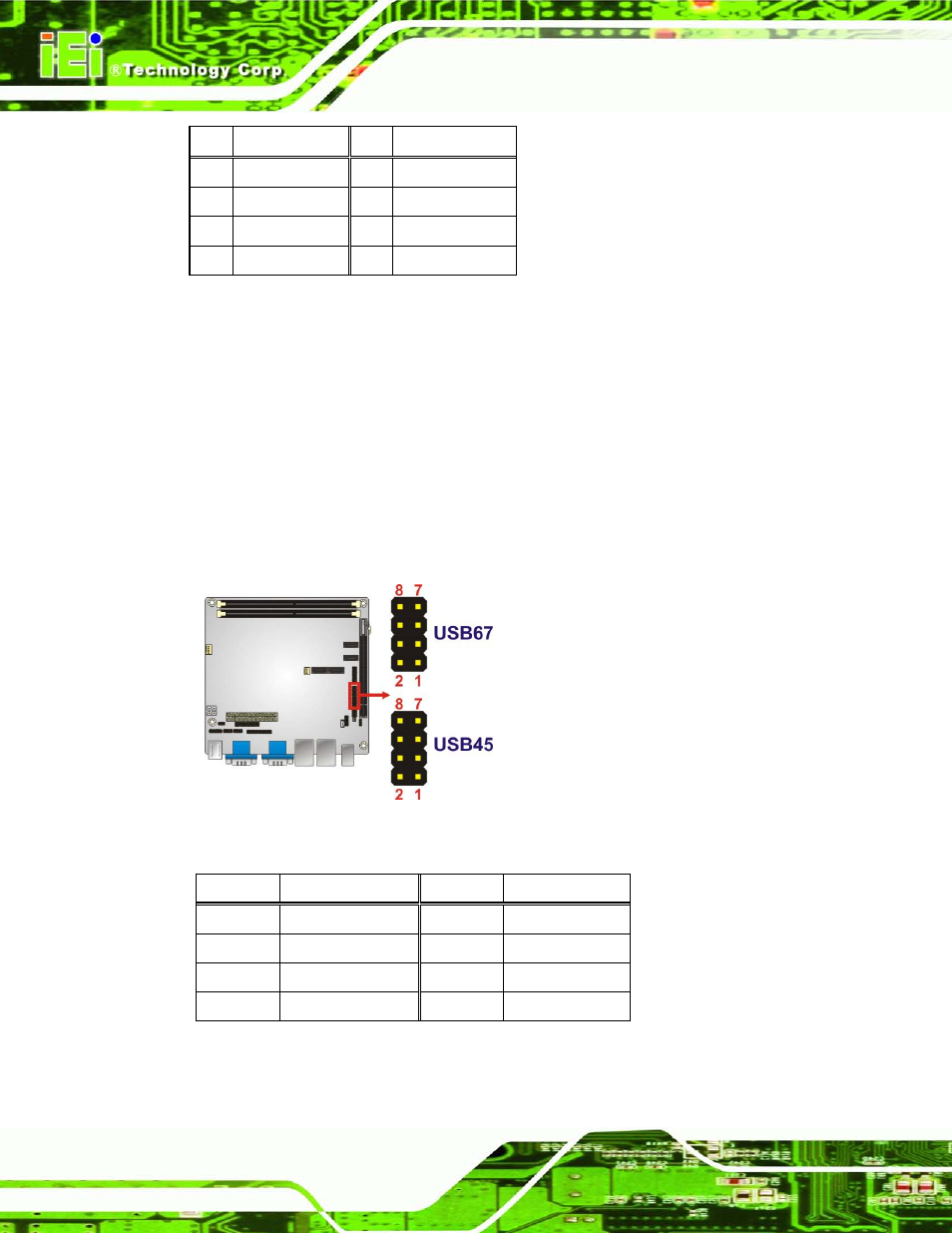

Figure 3-16: USB Connector Pinout Locations
Pin Description Pin Description
1 +5V 2 GND
3 DATA1- 4 DATA2+
5 DATA1+ 6 DATA2-
7 GND 8 +5V
Table 3-15: USB Port Connector Pinouts
