KINO-G410 Min i-ITX Mo th e rb o a rd

P a g e 26

3.2.12 S ATA Drive Co n n e c to rs

CN La b e l:

S ATA1, S ATA2, S ATA3, S ATA4

CN Typ e :

7-pin SATA drive connectors

CN Lo c a tio n :

See Figure 3-13

The SATA drive connectors can be connected to SATA 3Gb/s drives.

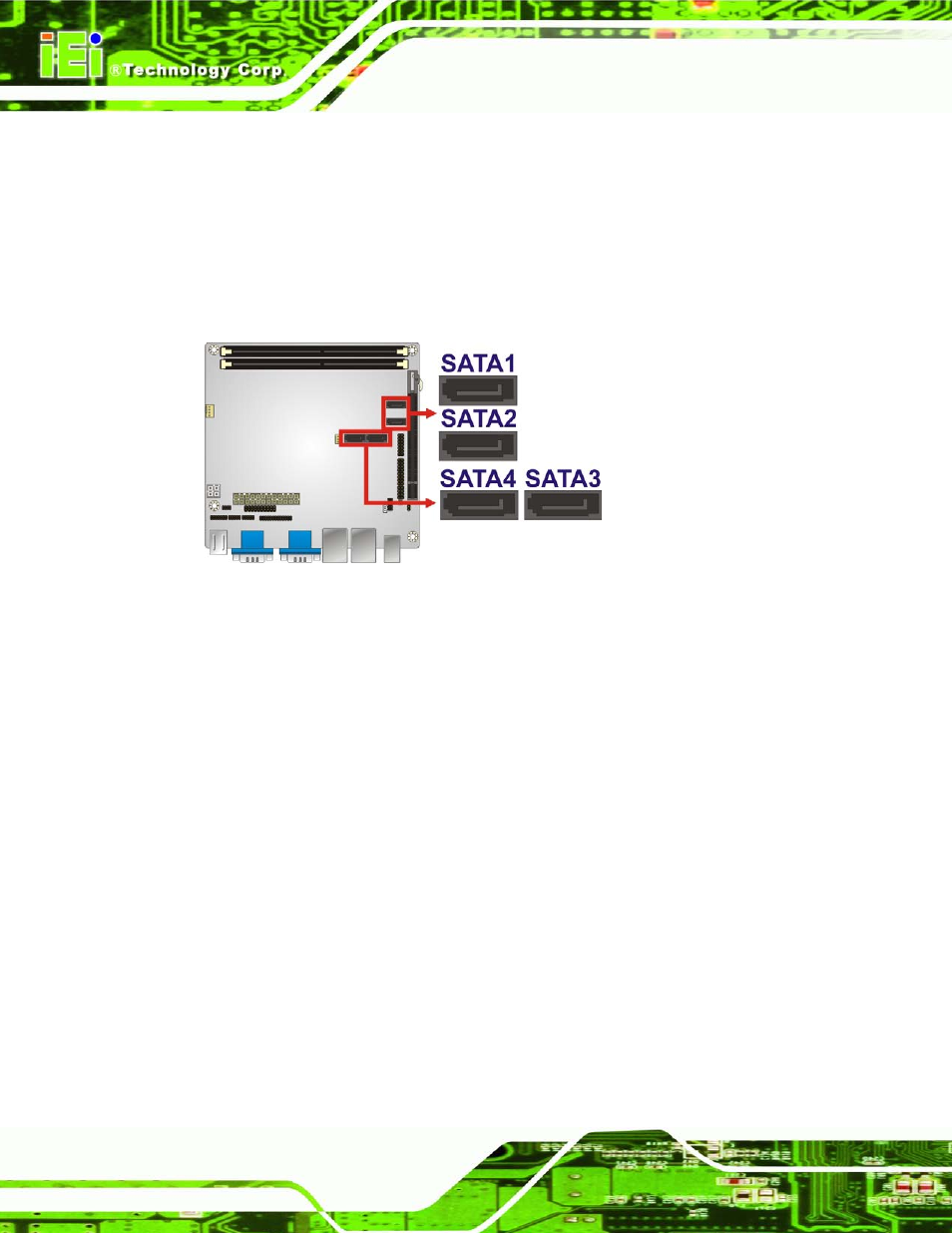

Figure 3-13: SATA Drive Connector Location

3.2.13 S MBu s Co n n e c to r

CN La b e l:

CN1

CN Typ e :

4-pin wafer

CN Lo c a tio n :

See Figure 3-14

CN P in o u ts :

See Table 3-13

The SMBus (System Management Bus) connector provides low-speed system

management communications.
