IEM-945GSE ETX 3.0 Module
Page 60
6.3.4 W83627H Hardware Health
The Hardware Health Configuration menu (
5
BIOS Menu 7) shows the operating
temperature, fan speeds and system voltages.

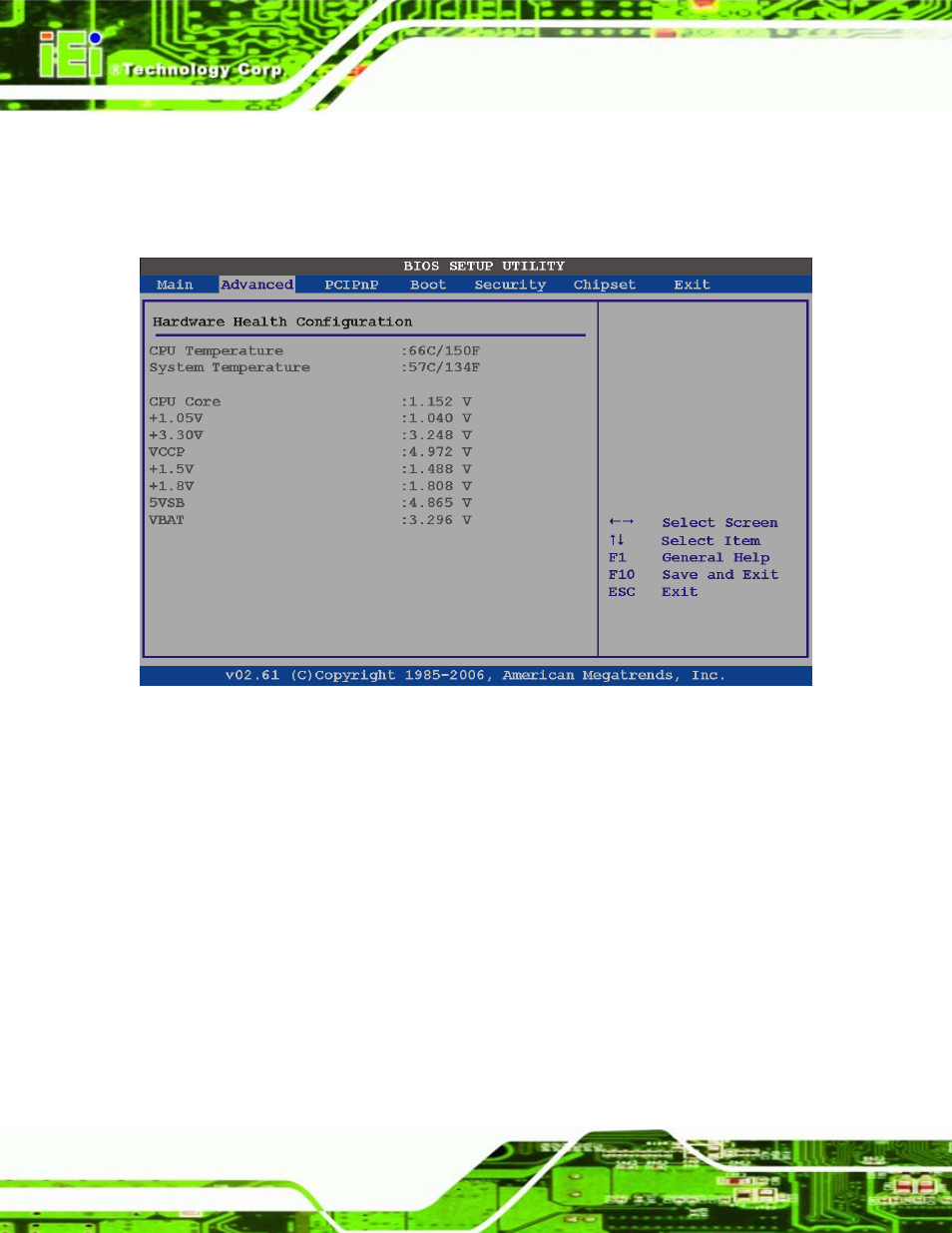

BIOS Menu 7: Hardware Health Configuration
The following system parameters and values are shown. The system parameters that are
monitored are:
ƒ Temperature:
o CPU temperature
o System temperature
ƒ Voltages:
o CPU core
o +1.05V
o +3.30V
o VCCP
o +1.5V
