IEM-945GSE ETX 3.0 Module
Page 42
5.2 SO-DIMM Installation
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 5-1.

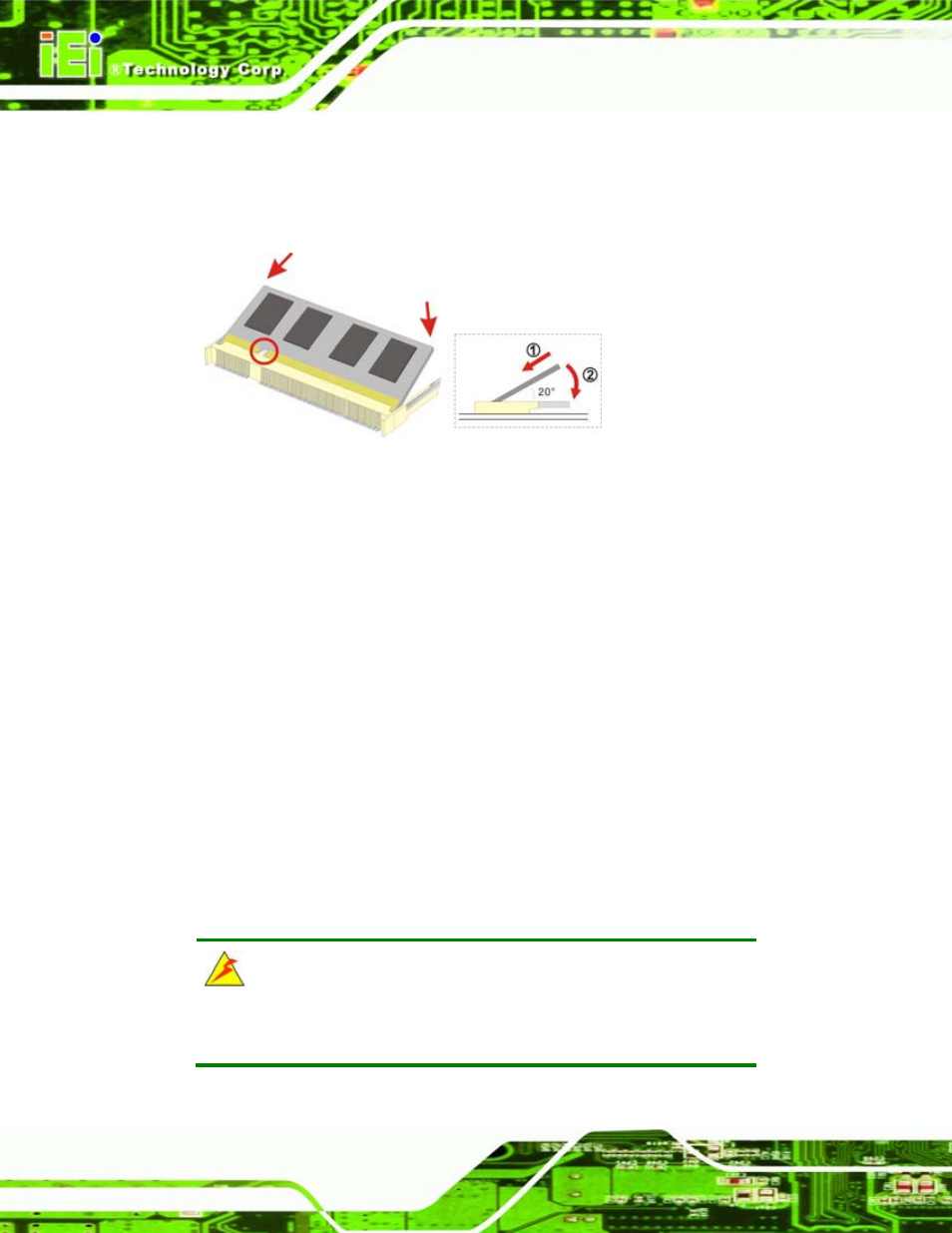

Figure 5-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the IEM-945GSE on an anti-static pad.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket.
Step 3: Insert the SO-DIMM. Push the SO-DIMM chip into the socket at an angle. (See
Figure 5-1)
Step 4: Open the SO-DIMM socket arms. Gently pull the arms of the SO-DIMM socket
out and push the rear of the SO-DIMM down. (See Figure 5-1)
Step 5: Secure the SO-DIMM. Release the arms on the SO-DIMM socket. They clip into
place and secure the SO-DIMM in the socket. Step 0:
5.3 Mounting the IEM-945GSE
WARNING!
Never run the embedded module without an appropriate heat sink.
