IEM-945GSE ETX 3.0 Module
Page 31

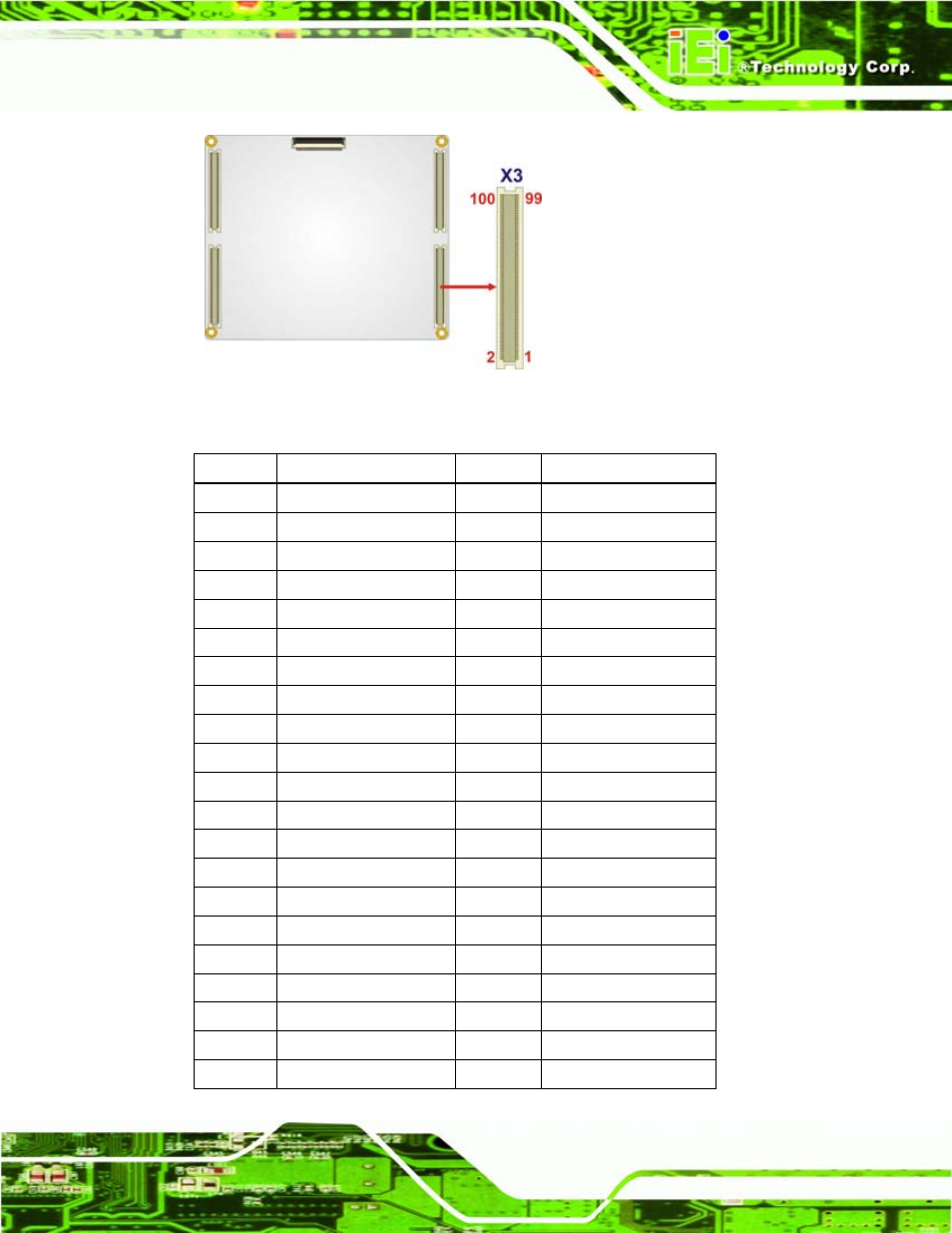

Figure 4-5: ETX 3.0 Connector X3 Location
Pin No. Description Pin No. Description
1 GND 2 GND
3
VGA_R
4
VGA_B
5 HSYNC 6 VGA_G
7 VSYNC 8 DDCK
9 NC 10 DDDA
11 TTL_B6 12 DOTCLK
13 TTL_B7 14 LCD_EN
15 GND 16 GND
17
TTL_B3
18
TTL_B5
19 TTL_B2 20 TTL_B4
21 GND 22 GND
23 TTL_G4 24 TTL_G7
25 TTL_G5 26 TTL_G6
27 GND 28 GND
29
TTL_R6/LVD2-
30
TTL_G3/LVDCK+
31 TTL_R7/LVD2+ 32 TTL_G2/LVDCK-
33 GND 34 GND
35 TTL_R3/LVD0+ 36 TTL_R5/LVD1+
37 TTL_R2/LVD0- 38 TTL_R4/LVD1-
39 VCC5 40 VCC5
41
JILI_DAT
42
GPIO
