IEM-945GSE ETX 3.0 Module

Page 104

7.6 Audio Driver Installation

There is no audio driver on the IEM-945GSE. To add audio capabilities to the

IEM-945GSE, connect a HD Audio kit or AC’97 audio kit available from IEI. Follow the

installation applicable to the installed audio kit.

7.6.1 AC’97 Driver Installation

To install the chipset driver, please do the following.

Step 46:

Access the driver list shown in Figure 7-3. (See Section 7.2)

Step 47:

Click “4-Audio”

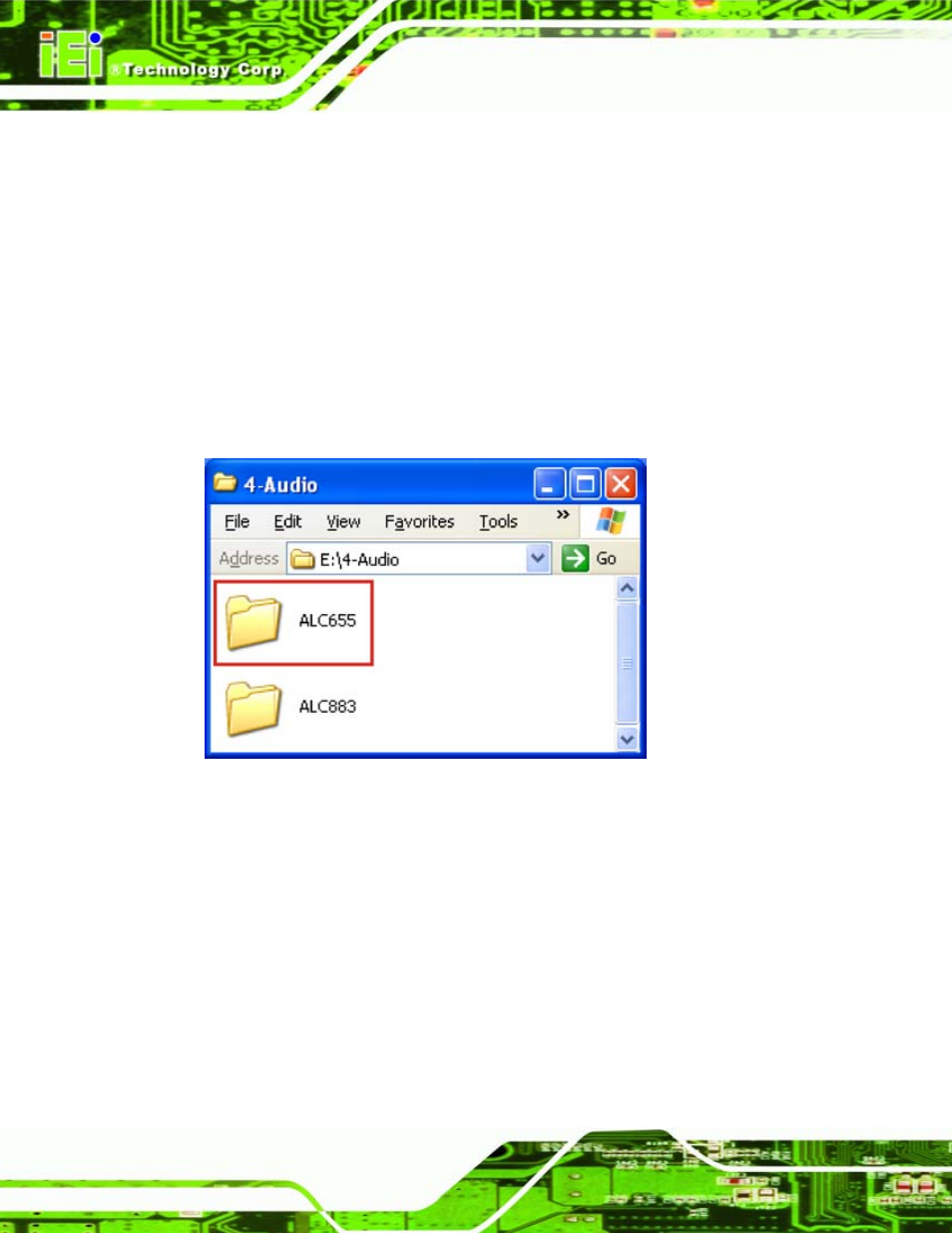

Figure 7-20: AC'97 Audio
