IEM-945GSE ETX 3.0 Module
Page 37

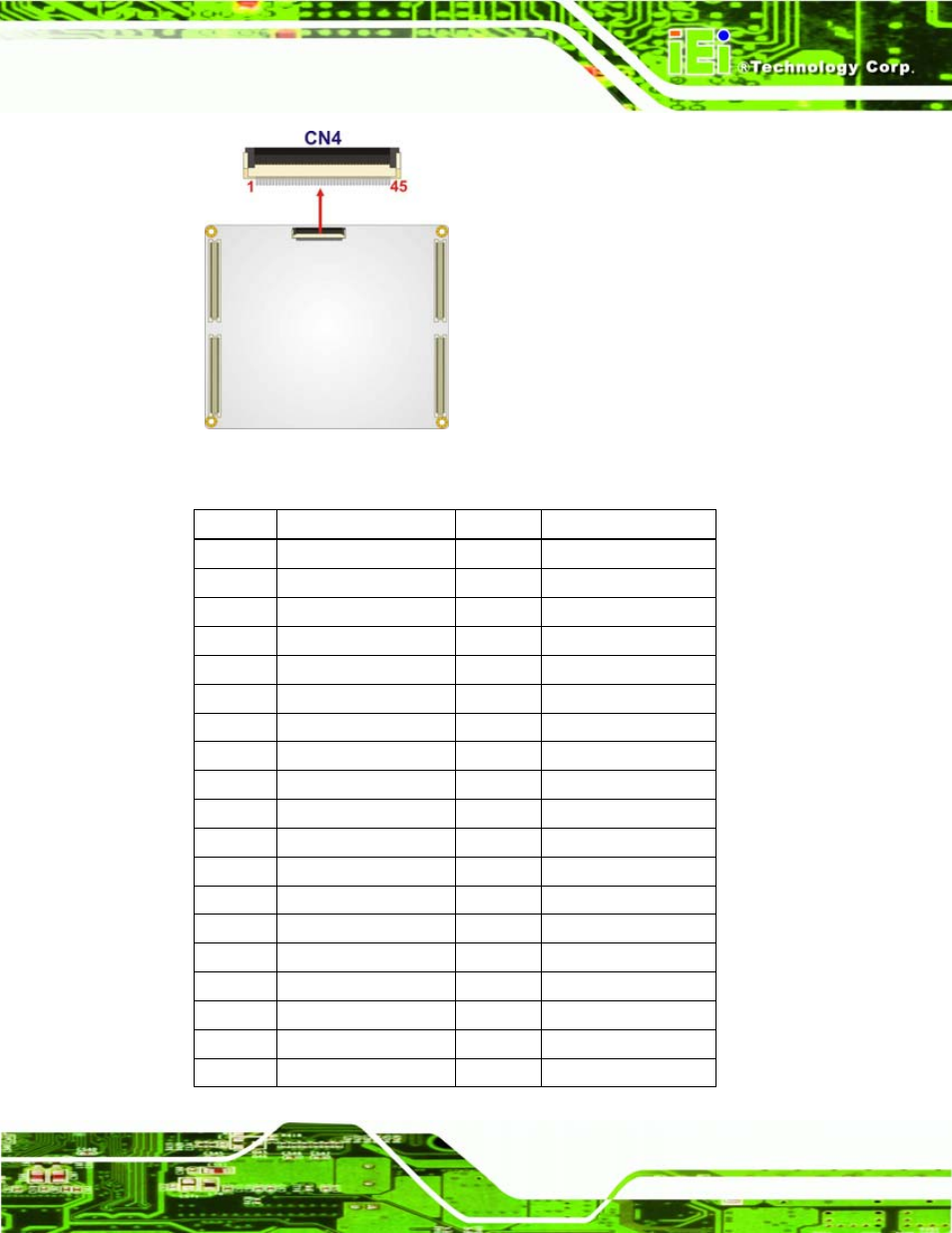

Figure 4-9: SDVO Connector Location
Pin No. Description Pin No. Description
1 GND 2 NC
3 NC 4 GND
5 NC 6 SDVOB_BLUE#
7 GND 8 SDVOB_BLUE
9 NC 10 GND
11 NC 12 SDVOB_RED#
13 GND 14 SDVOB_RED
15 SDVOB_CLK# 16 GND
17 SDVOB_CLK 18 SDVO_FLDSTALL#
19 GND 20 SDVO_FLDSTALL
21 SDVOB_GREEN# 22 GND
23 SDVOB_GREEN 24 SDVO_TVCLKIN#
25 GND 26 SDVO_TVCLKIN
27 NC 28 GND
29 NC 30 SDVO_CLK
31 GND 32 SDVO_DATA
33 SDVOB_INT# 34 PCIRST#
35 SDVOB_INT 36 VCC5
37 GND 38 VCC5
