CN Location: See Figure 4-8
The SO-DIMM socket is for installing SO-DIMM memory.

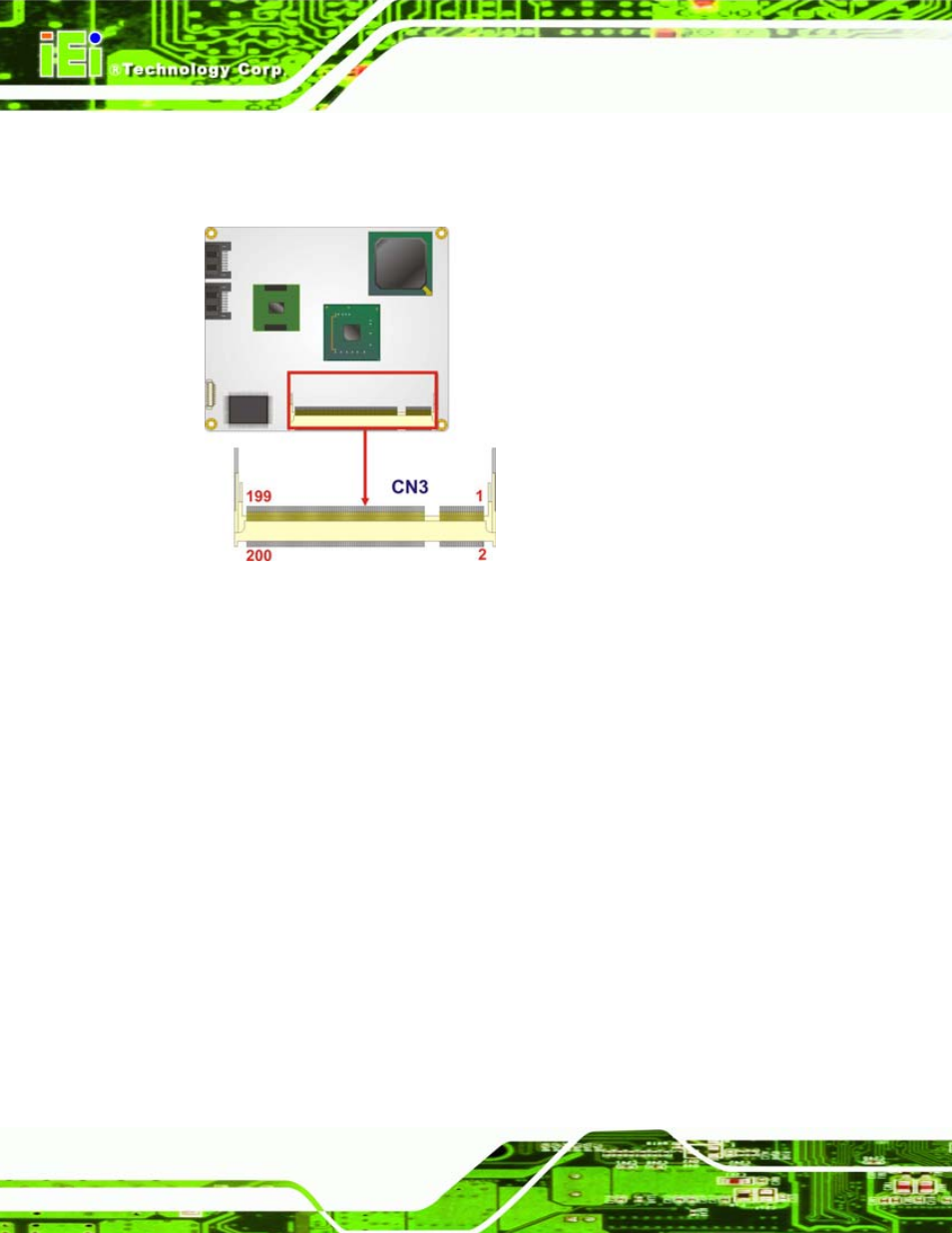

Figure 4-8: SO-DIMM Connector Location
4.2.7 SDVO Connector
CN Label: CN4
CN Type: 45-pin flat connector
CN Location: See Figure 4-9
CN Pinouts: See Table 4-6
The SDVO connector provides an external interface to the SDVO.
