IEM-945GSE ETX 3.0 Module

Page 25

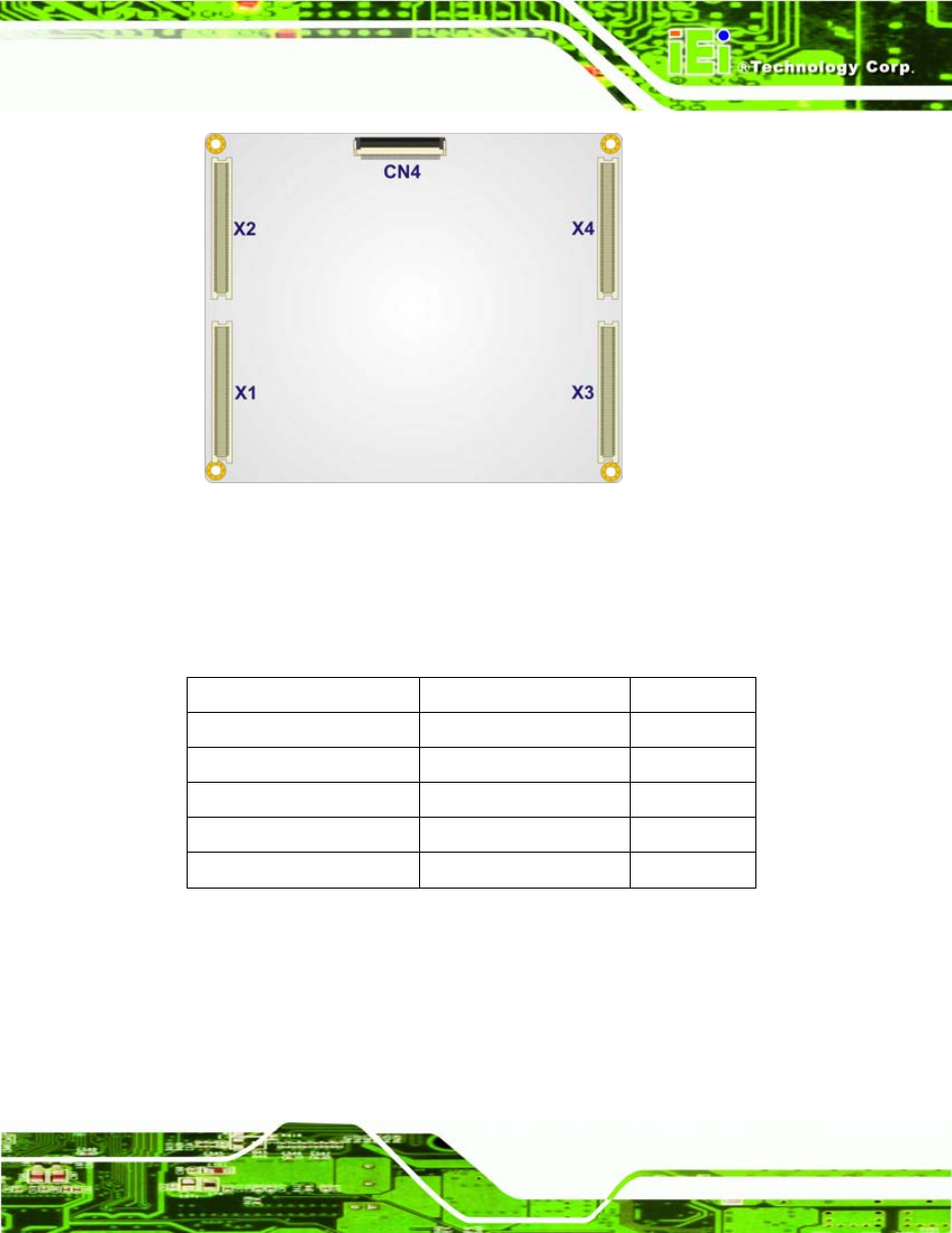

Figure 4-2: Connector and Jumper Locations

4.1.2 Peripheral Interface Connectors

Table 4-1 shows a list of the interface connectors on the IEM-945GSE Detailed

descriptions of these connectors can be found in Section 4.2.

Connector

Type

Label

ETX connector

ETX connector

X1, X2, X3, X4

SATA connectors

SATA connector

CN1, CN2

SO-DIMM socket

SO-DIMM socket

CN3

SDVO connector

Flat connector

CN4

SPI programming connector

6-pin connector

CN5

Table 4-1: IEM-945GSE Interface Connectors

4.2 ETX Interface Connectors

The IEM-945GSE embedded module has standard four standard ETX interface

connectors on the reverse side of the board. The location of the pins and the pinout

descriptions are given below.
