IEM-945GSE ETX 3.0 Module

Page 24

4.1 Peripheral Interface Connectors

Section 4.1.1 shows interface connector locations. Section 4.1.2 lists all the interface

connectors seen in Section 4.1.1.

4.1.1 Layout

Figure 4-1 shows the on-board peripheral connectors, backplane peripheral connectors

and on-board jumpers.

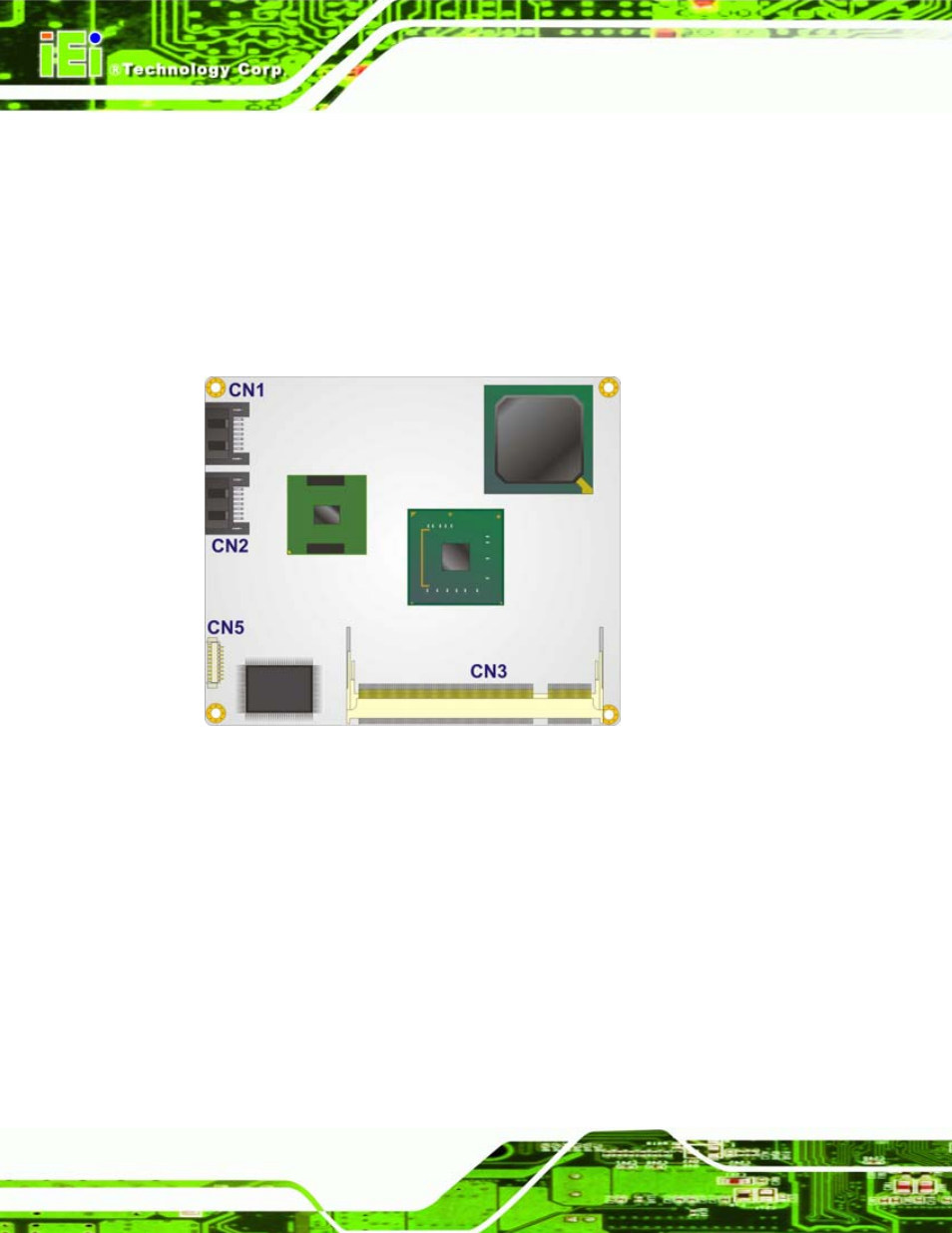

Figure 4-1: Connector and Jumper Locations (Front Side)
