IEM-945GSE ETX 3.0 Module
Page 4

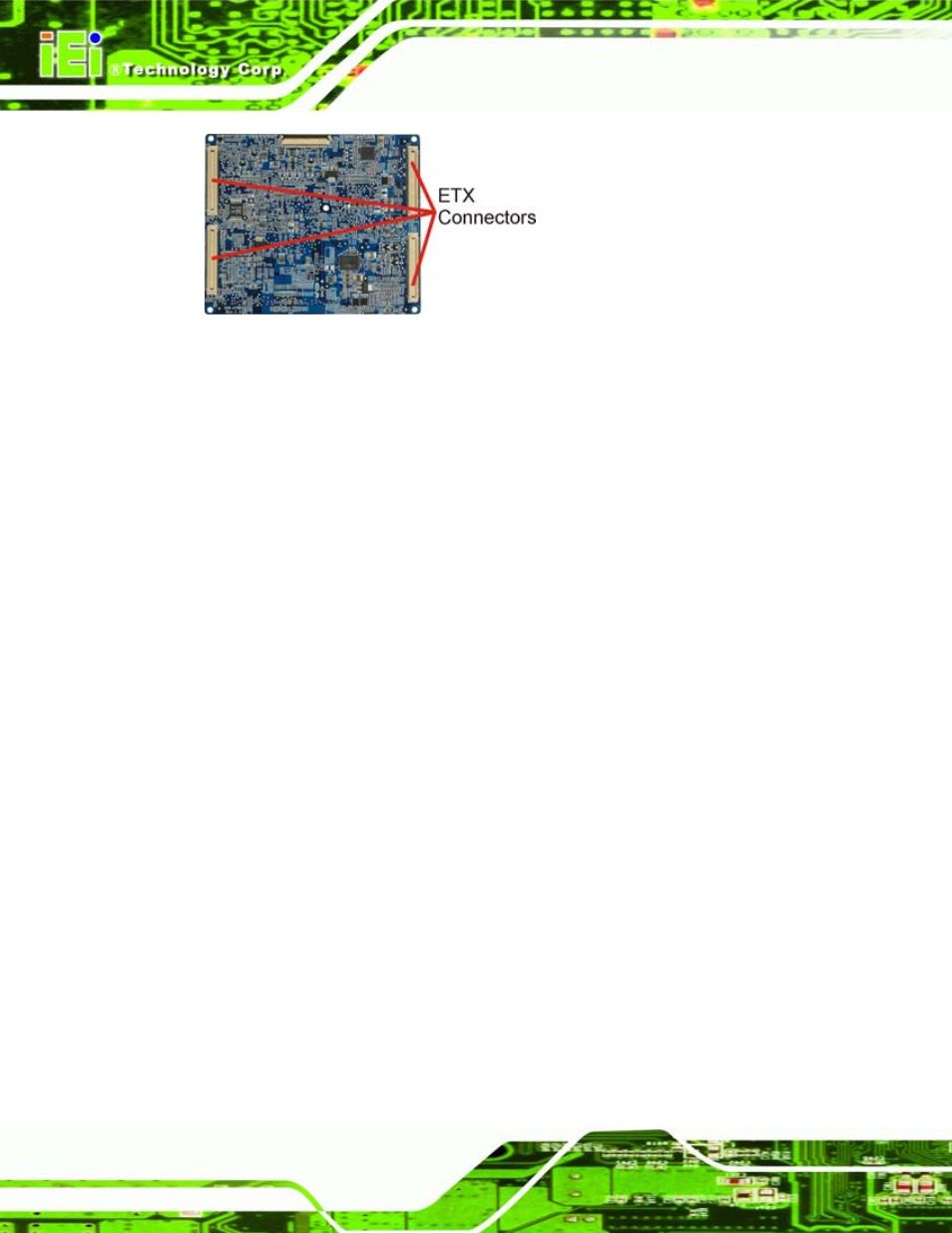

Figure 1-3: IEM-945GSE Overview (Reverse Side)
1.5.1 Connectors
The IEM-945GSE has the following interface connectors on-board:
ƒ 4 x ETX connectors (X1, X2, X3 and X4)
ƒ 1 x SO-DIMM socket
ƒ 2 x SATA connectors
1.5.2 IO Interface Support
The IEM-945GSE embedded module supports the following IO interfaces on the
baseboard:
ƒ 1 x Audio
ƒ 1 x Ethernet
ƒ 1 x IDE
ƒ 1 x ISA
ƒ 1 x LPT
ƒ 1 x LVDS
ƒ 4 x PCI
ƒ 1 x PS/2
ƒ 2 x RS-232
ƒ 1 x SDVO (Optional)
ƒ 4 x USB 2.0
ƒ 1 x VGA
