IEM-945GSE ETX 3.0 Module
Page 35
Pin No. Description Pin No. Description
87 NC 88 IDE_D6
89 RING# 90 CBLID
91 LAN_RX- 92 IDE_D8
93 LAN_RX+ 94 NC
95 LAN_TX- 96 IDE_D7
97 LAN_TX+ 98 HDRST#
99 GND 100 GND
Table 4-5: ETX 3.0 Connector X4 Pin Definitions
4.2.5 SATA Connector
CN Label: CN1, CN2
CN Type: SATA connector
CN Location: See Figure 4-7
The SATA connectors are for attaching SATA hard drives.

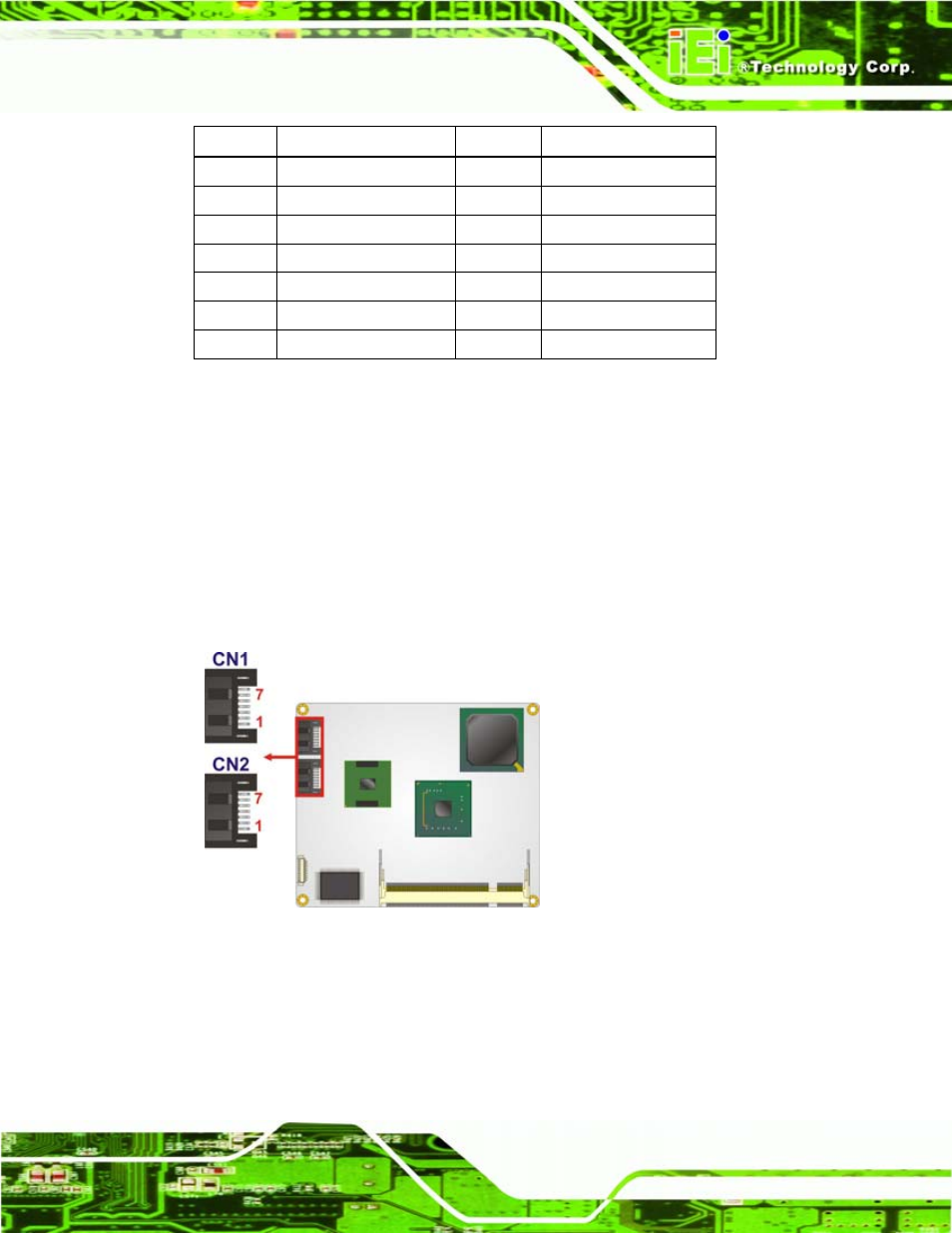

Figure 4-7: SATA Connector Location
4.2.6 SO-DIMM Connector
CN Label: CN3
CN Type: SO-DIMM connector
