IEM-945GSE ETX 3.0 Module

Page 11

2.3 Embedded 1.6 GHz Intel® ATOM™ N270 Processor

The IEM-945GSE comes with an embedded 45 nm 1.6 GHz Intel® ATOM™ N270

processor. The processor connects to the Intel® 945GSE Northbridge through the FSB.

The processor is shown in Figure 2-4 below.

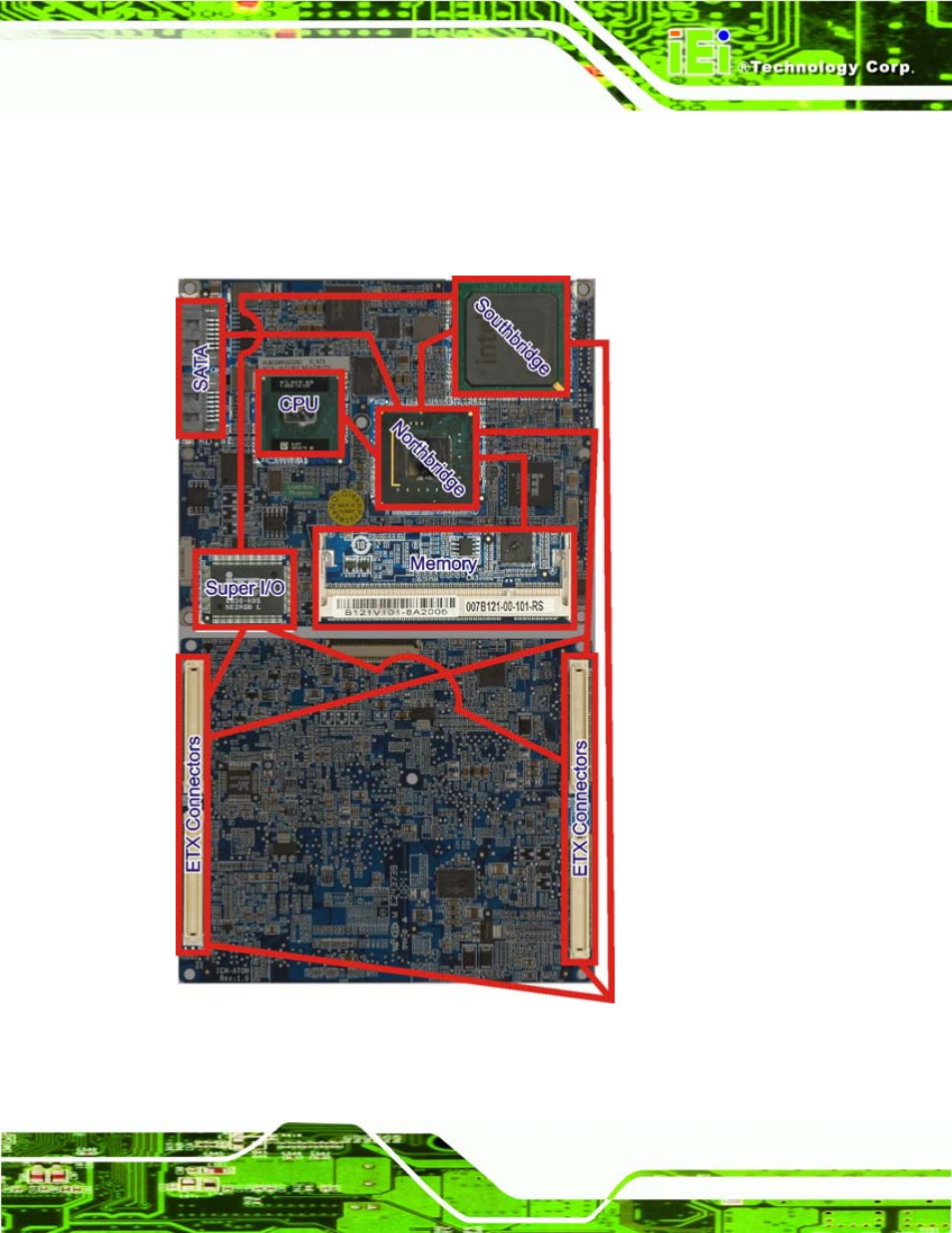

Figure 2-4: Connections
