2.2 Data Flow

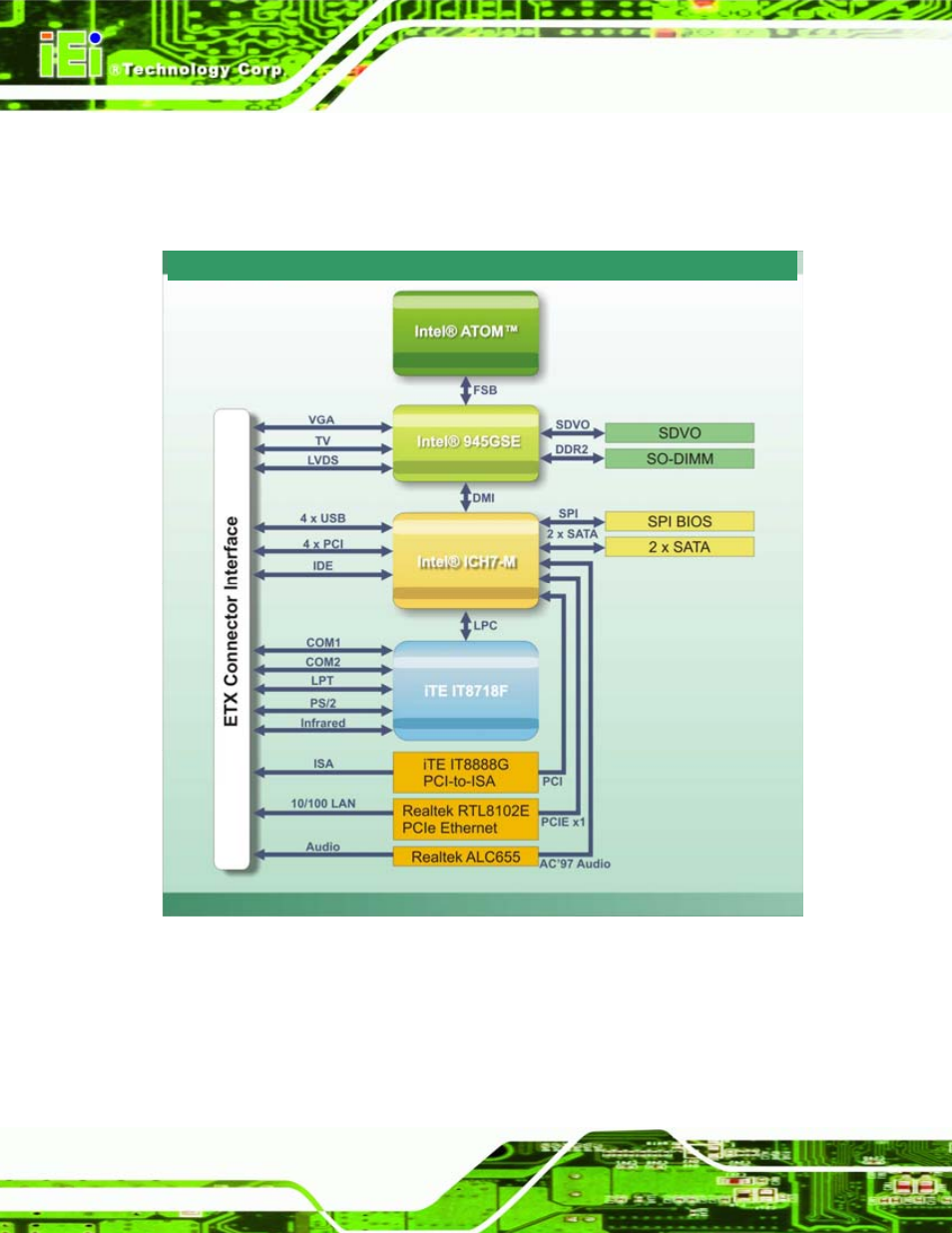

Figure 2-3 shows the data flow between the two on-board chipsets and other components

installed on the motherboard and described in the following sections of this chapter.

Figure 2-3: Data Flow Block Diagram
