ICE-945GSE COM Express Type 2 Module
Page 30
CN Type: 220-pin COM Express connector
CN Location: See Figure 4-4
CN Pinouts: See Table 4-3
The standard COM Express connector locations and pinouts are shown below.

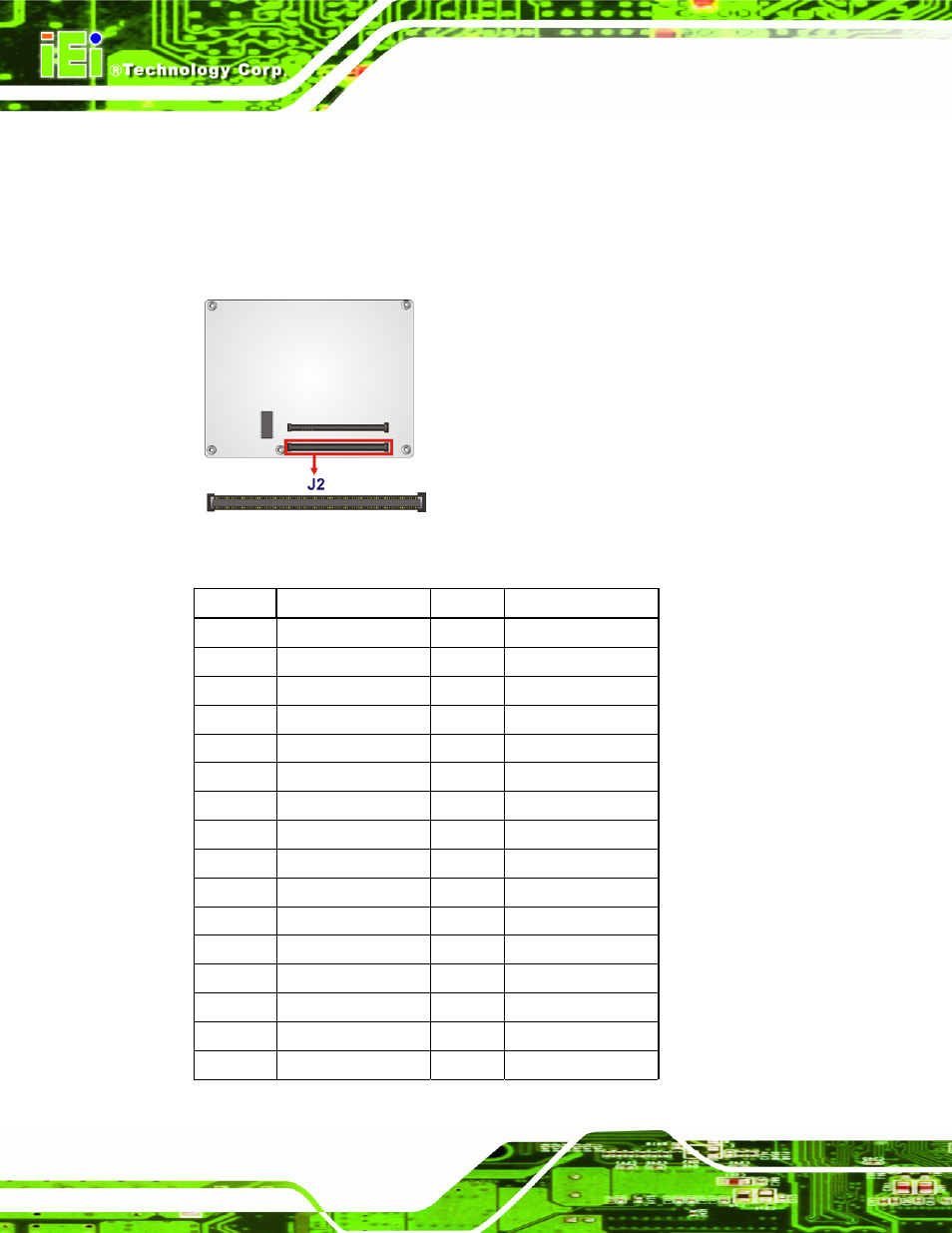

Figure 4-4: COM Express Connector AB Location
Pin No. Description Pin No. Description
A1 GND B1 GND
A2 GBE0_MDI3- B2 GBE0_ACT#
A3 GBE0_MDI3+ B3 LPC_FRAME#
A4 GBE0_LINK100# B4 LPC_AD0
A5 GBE0_LINK1000# B5 LPC_AD1
A6 GBE0_MDI2- B6 LPC_AD2
A7 GBE0_MDI2+ B7 LPC_AD3
A8 GBE0_LINK# B8 LPC_DRQ0#
A9 GBE0_MDI1- B9 LPC_DRQ1#
A10 GBE0_MDI1+ B10 LPC_CLK
A11 GND B11 GND
A12 GBE0_MDI0- B12 PWRBTN#
A13 GBE0_MDI0+ B13 SMB_CK
A14 GBE0_CTREF B14 SMB_DAT
A15 SUS_S3# B15 SMB_ALERT#
A16 SATA0_TX+ B16 SATA1_TX+
