ICE-945GSE COM Express Type 2 Module
Page 2
1.1 Overview

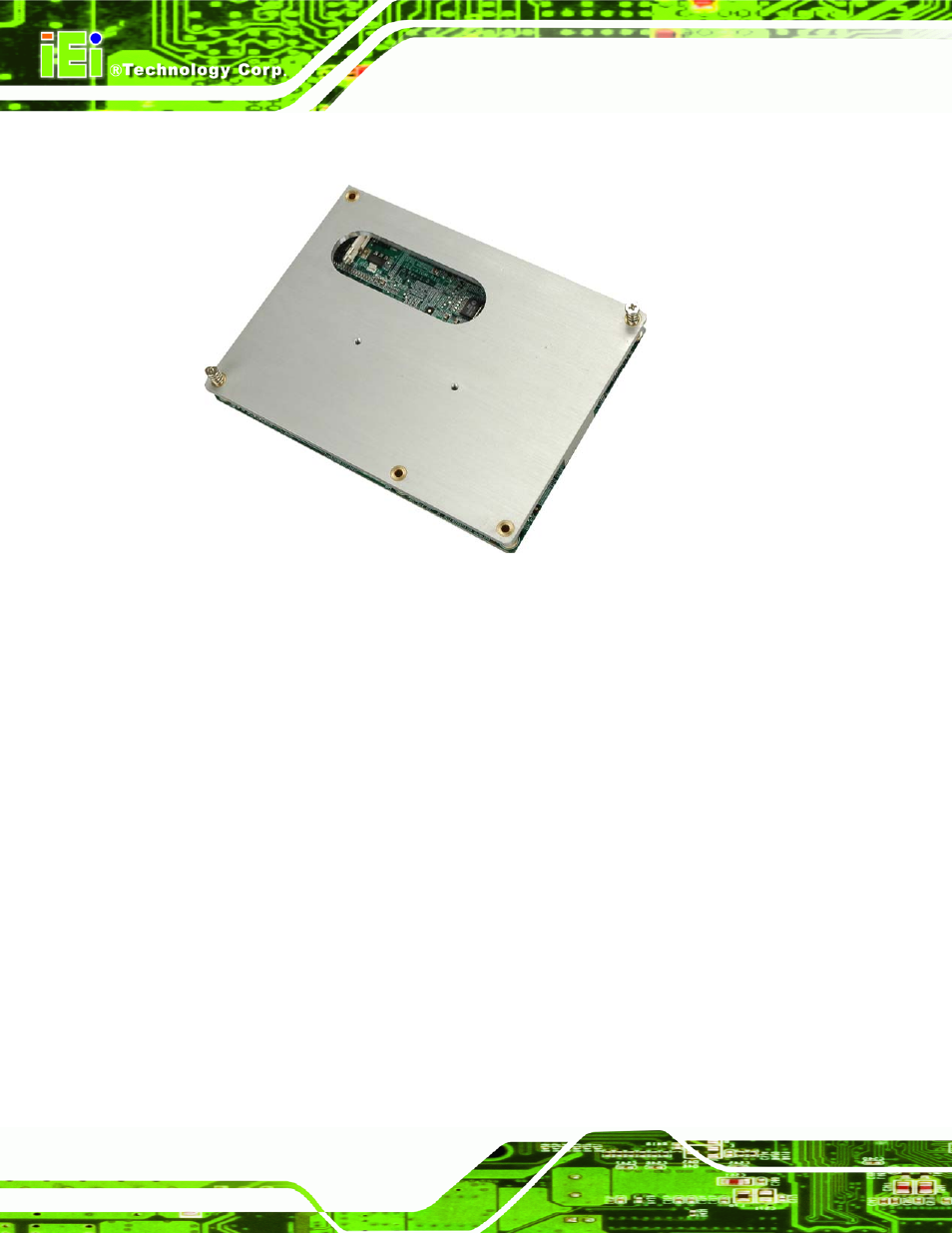

Figure 1–1: ICE-945GSE
The ICE-945GSE COM Express module provides the main processing chips and is
connected to a compatible COM Express carrier board. The ICE-945GSE is equipped with
an 1.6 GHz Intel® ATOM™ N270 CPU, Intel® 945GSE Northbridge and Intel® ICH7M
Southbridge and provides multiple modern serial I/O options, while offering limited support
for legacy I/Os. The COM Express standard allows the COM Express carrier board to be
designed, while leaving the choice of processor till the later stages of design. The
ICE-945GSE provides a low power option with the full range of modern I/O options. The
ICE-945GSE embedded module is designed for flexible integration by system developers
into customized platform devices.
1.2 Applications
The ICE-945GSE is designed to a COM Express carrier board for being embedded in
customized baseboards for flexible applications.
