ICE-945GSE COM Express Type 2 Module
Page 11
2.3 Embedded 1.6 GHz Intel® ATOM™ N270 Processor
The ICE-945GSE comes with an embedded 45 nm 1.6 GHz Intel® ATOM™ N270
processor. The processor connects to the Intel® 945GSE Northbridge through the FSB.

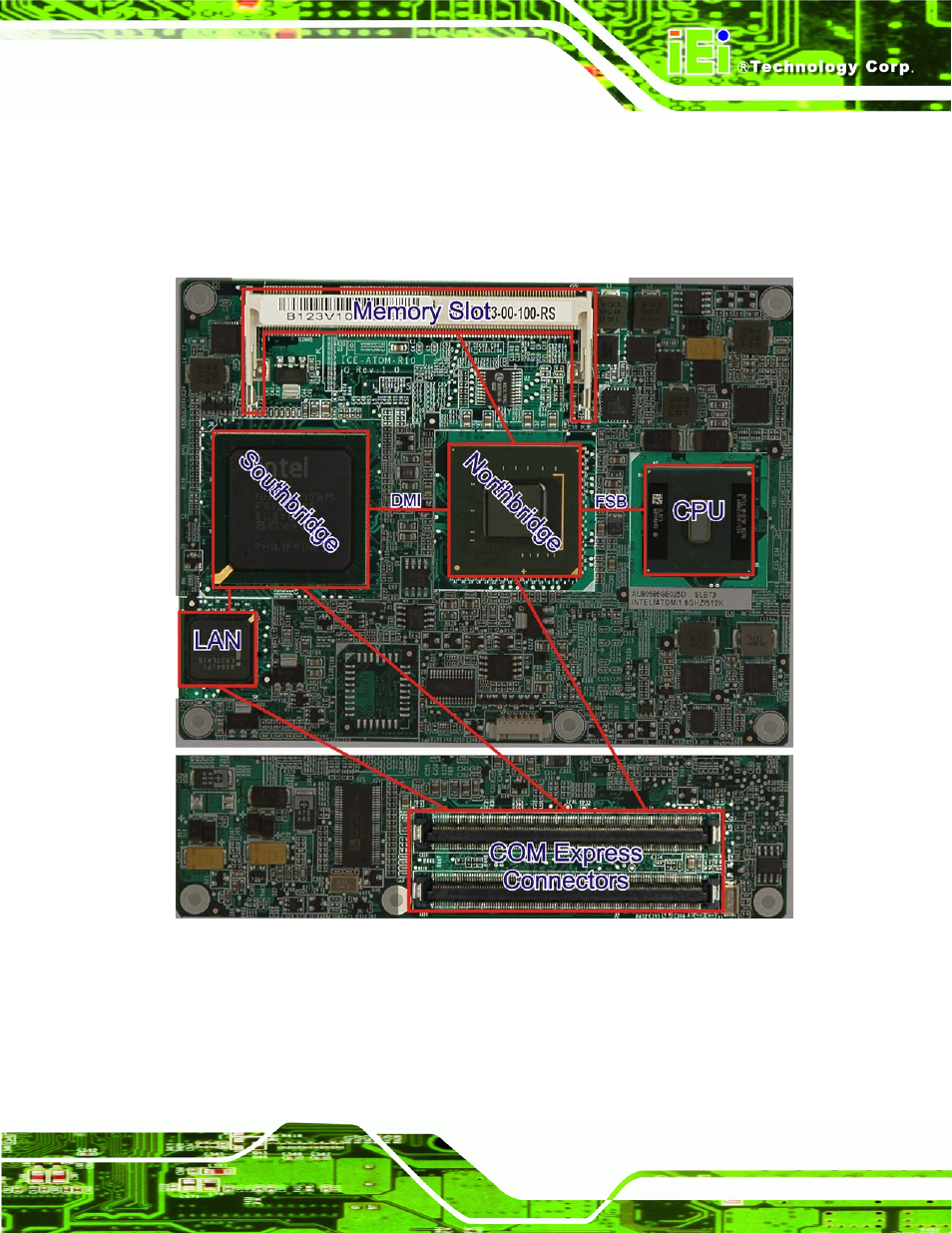

The processor is shown in Figure 2-4 below.
Figure 2-4: Connections
Some of the features of the 1.6 GHz Intel® ATOM™ N270 are listed below
On-die, primary 32-kB instructions cache and 24-kB write-back data cache
400/533 MHz source-synchronous front side bus (FSB)
2-Threads support
