ICE-945GSE COM Express Type 2 Module

Page 25

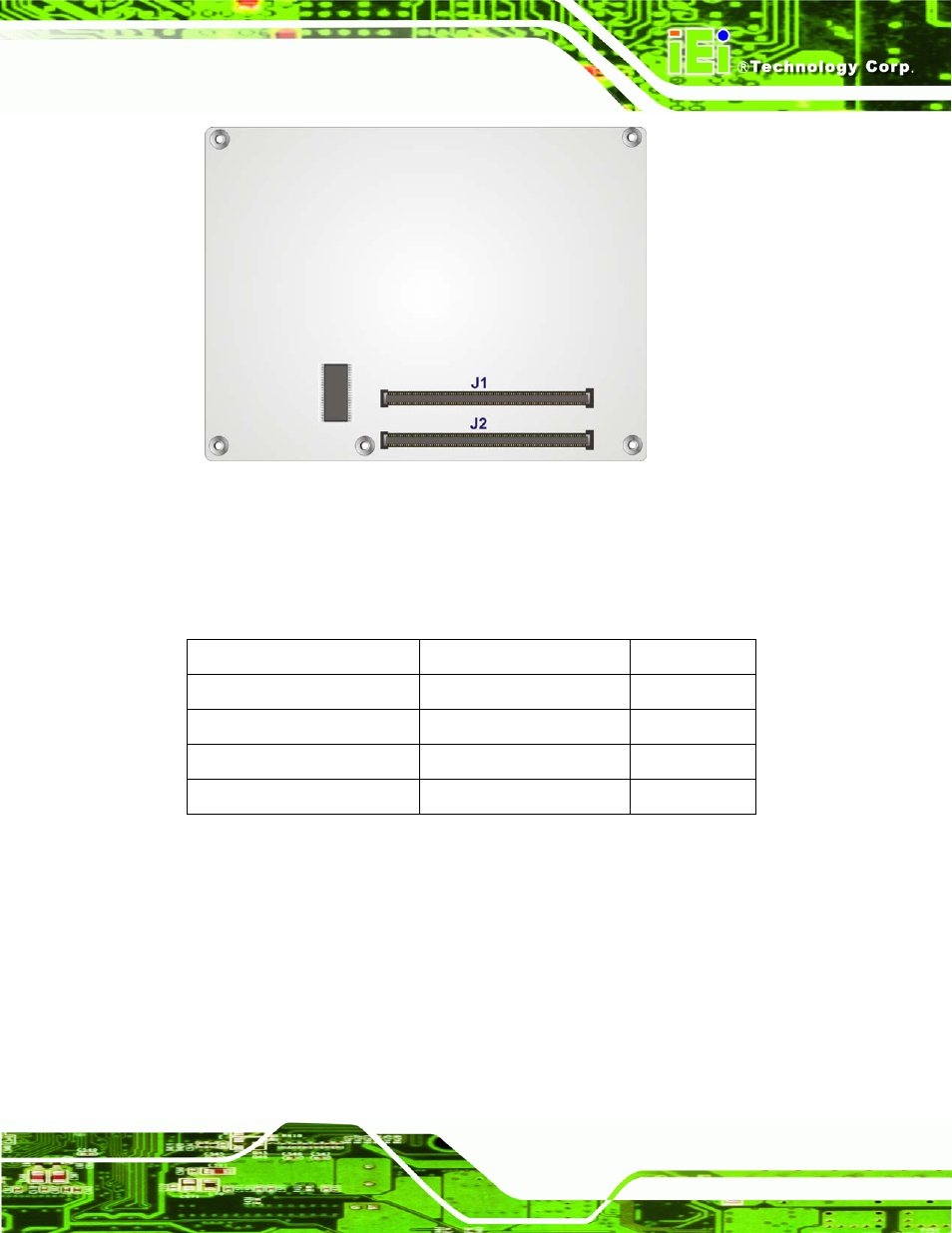

Figure 4-2: Connector and Jumper Locations

4.1.2 Peripheral Interface Connectors

Table 4-1 shows a list of the interface connectors on the ICE-945GSE Detailed

descriptions of these connectors can be found in Section 4.2.

Connector

Type

Label

COM Express connector CD

COM Express connector

J1

COM Express connector AB

COM Express connector

J2

SO-DIMM socket

SO-DIMM socket

DIMM1

SPI programming connector

6-pin connector

SPI1

Table 4-1: ICE-945GSE Interface Connectors

4.2 Peripheral Interface Connectors

The location of the pins and the pinout descriptions of the peripheral interface connectors

are given below.

4.2.1 COM Express Connector CD

CN Label:

J1

CN Type:

220-pin COM Express connector
