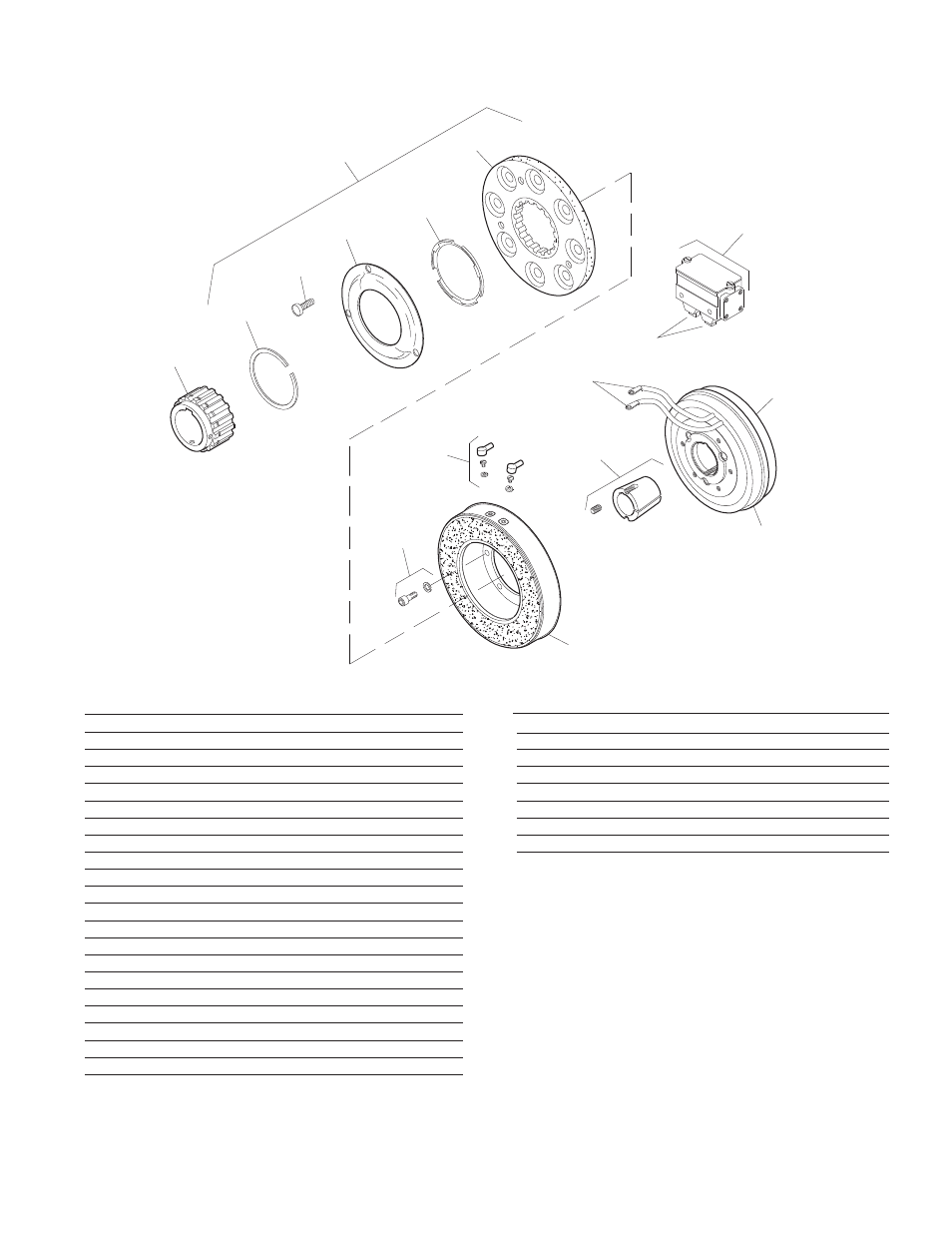

PCC-500 Clutch Coupling Heavy Duty Drawing I-25543
How to Order:
1. Specify Bore Size for Item 1 and Item 5.
2. Specify Voltage for Item 6.
3. See P-1234 for Power Supplies.
Example:
PCC-500 Clutch Coupling per I-25543 - 90 Volt
3/4" Armature Hub Bore 1" Bushing Bore
These units meet standards set forth in UL508 and are
listed under guide card #NMTR2, file #59164.
These units are CSA certified under file #LR11543.
2
1
2-2
2-5
2-4
2-3
2-1
4
4-1
3-1
3-2
6-1 5
7
6
3
Shipped Assembled
Item Description Part Number Qty.
1 Armature Hub 1
3/4" Bore 5200-541-002
7/8" Bore 5200-541-003
15/16" Bore 5200-541-004
1" Bore 5200-541-005
1-1/8" Bore 5200-541-006
1-1/4" Bore 5200-541-007
2 Armature Assembly 5230-111-002 1
2-1 Armature 5230-111-001 2
2-2 Retainer Ring 748-0355 1
2-3 Autogap Spring 808-0412 1
2-4 Retainer Plate 748-0364 1
2-5 Screw 797-0028 3
3 Magnet Hub 5300-541-001 1
3-1 Collector Ring 5300-749-001 1
3-2 Collector Ring Mounting Acc. 5300-101-002 1
4 Brushholder 5300-178-001 1
4-1 Brush 176-0001 4
5 Bushing
1/2" to 1-1/4" Bore 180-0116 to 180-0128* 2
Item Description Part Number Qty.
6 Magnet 1
6 Volt 5300-631-002
24 Volt 5300-631-003
90 Volt 5300-631-005
6-1 Terminal Accessory 5311-101-001 1
7 Mounting Accessory 5102-101-001 2
*See page 34 for specific part numbers.
Warner Electric • 800-825-9050 819-0484 29
