Warner Electric • 800-825-9050 819-0484 11

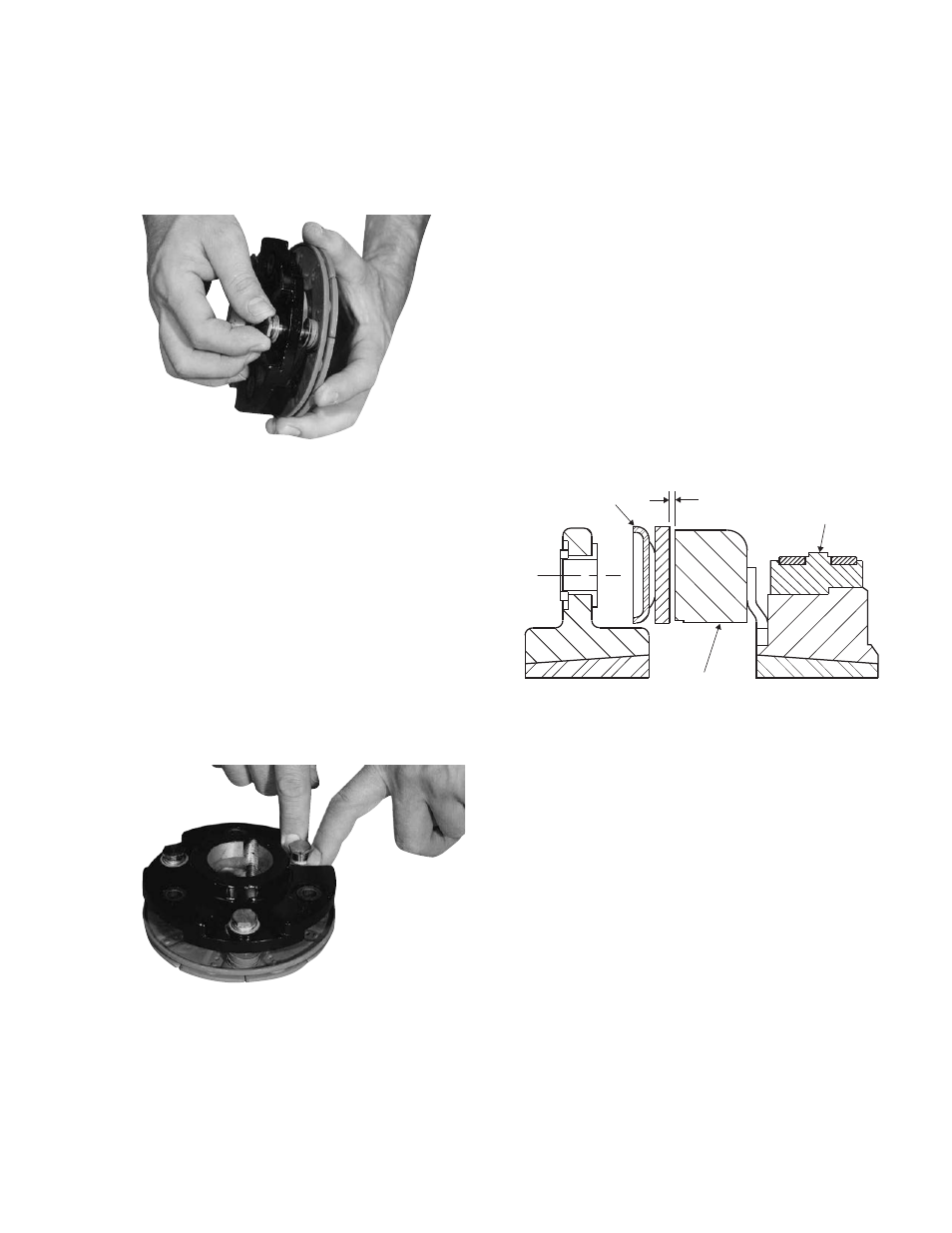

Step 4 Insert assembled drive pins through
armature hub and straight springs and into
the threaded armature bosses. Apply grade
"AA" Loctite Sealant on drive pin threads
(Figure 8)
Step 5 Tighten these (3) drive pins until shoulders of
pins are against face of armature bosses.
Since threads are class No. 3 fit, pins may
seem to bind.
Note: Alternately tighten each drive pin a
few turns at a time.
Step 6 Compress the retainers against the
armature hub and check to see that the
armature hub is held tightly to the armature
bosses.
Note: This position must not be disturbed
during completion of assembly.
(Figure 9)
Figure 8
Figure 9
1/32-inch
Magnet
Armature
Magnet Hub
Figure 10
