5 Warner Electric • 800-825-9050 P-226 • 819-0355
A. For Washdown Models Only
1. Place a gasket between reducer and
clutch/brake; select correct gasket to match
brake end configuration. See Figure 5.

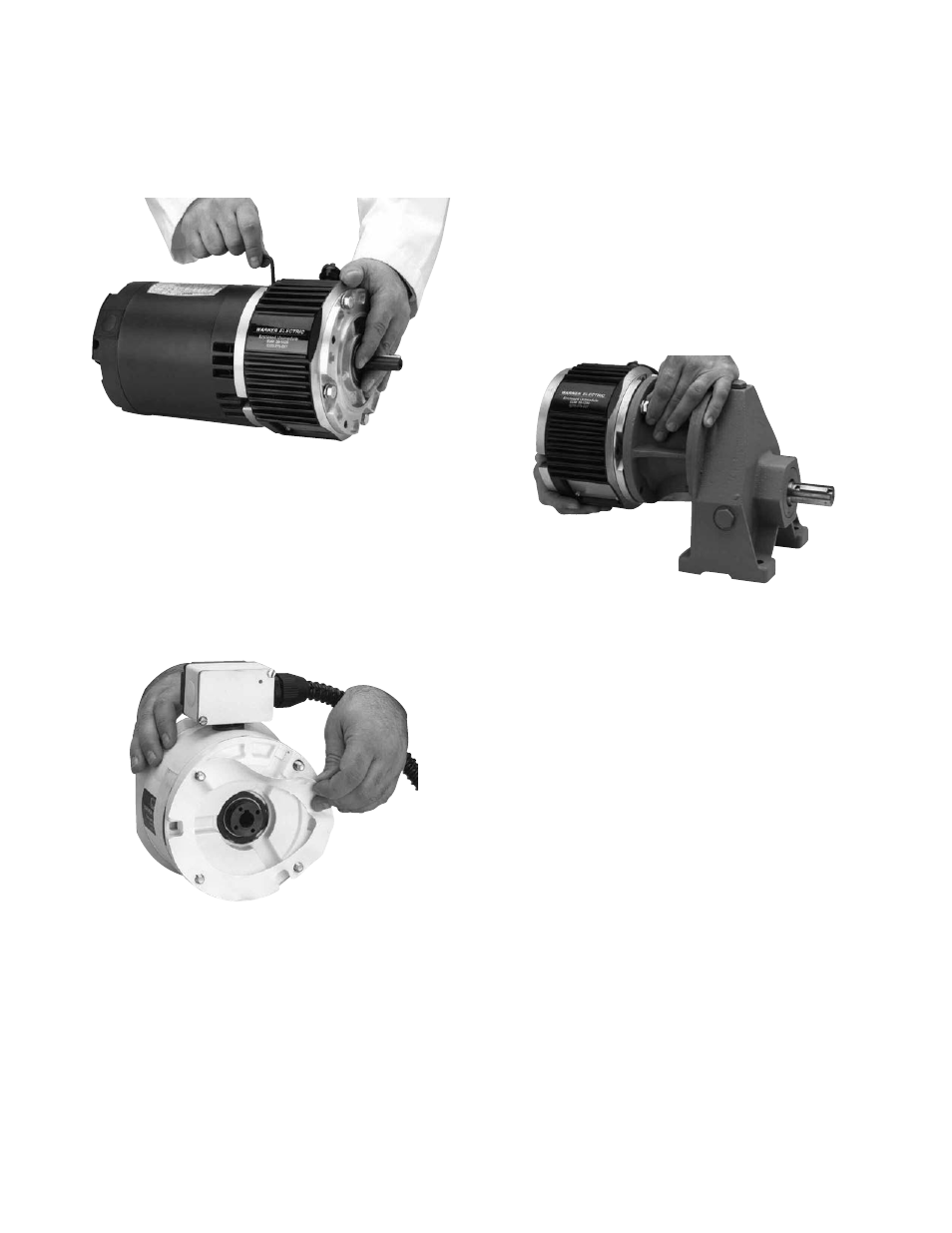

Figure 5
B. For All UniModule Models
1. Align output shaft and key of UniModule
with corresponding shaft hole and keyway
of reducer. Slide assembly together,
matching pilot diameter on UniModule with
a pilot diameter on reducer. See Figure 6.
Figure 6
2. Bolt UniModule to reducer flange. The four
bolts required (3/8-16 UNC-2A) are normally
furnished with the reducer. Tighten to 18 to
22 ft. lbs. torque for 50 and 180 size, 40 to
45 ft. lbs. torque for 210 and 215 sizes.
Step5:Installing the Base Mount on 2030
UniModules
A. For All UniModule Models
1. Mount each UniModule so that base is
located below ventilation holes. A pilot
diameter on end of each UniModule mates
with pilot diameters on base. See Figure 7.
2. Secure base to UniModule with the bolts
provided. Tighten to 18 to 22 ft. lbs. torque
for 50 and 180 sizes, 40 to 45 ft. lbs. torque
for 210 and 215 sizes.
Figure 7
Step6: Installing the Motor Mount (M)
Motor Mount (M) can be installed to output end of
UniModule to provide a foot mounting for
complete assembly of UniModule and motor.
A. For All UniModule Models
Sizes 50, 100 and 180
1. Remove the four set screws plugging the
mounting holes. Remove the two long hex
head bolts from side of UniModule toward
ventilation holes.
2. Mount UniModule on Motor Mount so base
of Motor Mount is underneath UniModule
and motor. See Figure 8. A pilot diameter on
UniModule mates with a pilot diameter on
Motor Mount.
3. Secure Motor Mount in place with two
longer mounting bolts. Tighten to 30 to 35
ft. lbs. torque and two shorter bolts tighten
18 to 22 ft. lbs. torque, all provided in kit.
Sizes 210 and 215
1. Mount UniModule on Motor Mount so base
of Motor Mount is underneath UniModule
