EnclosedUniModuleCombinations

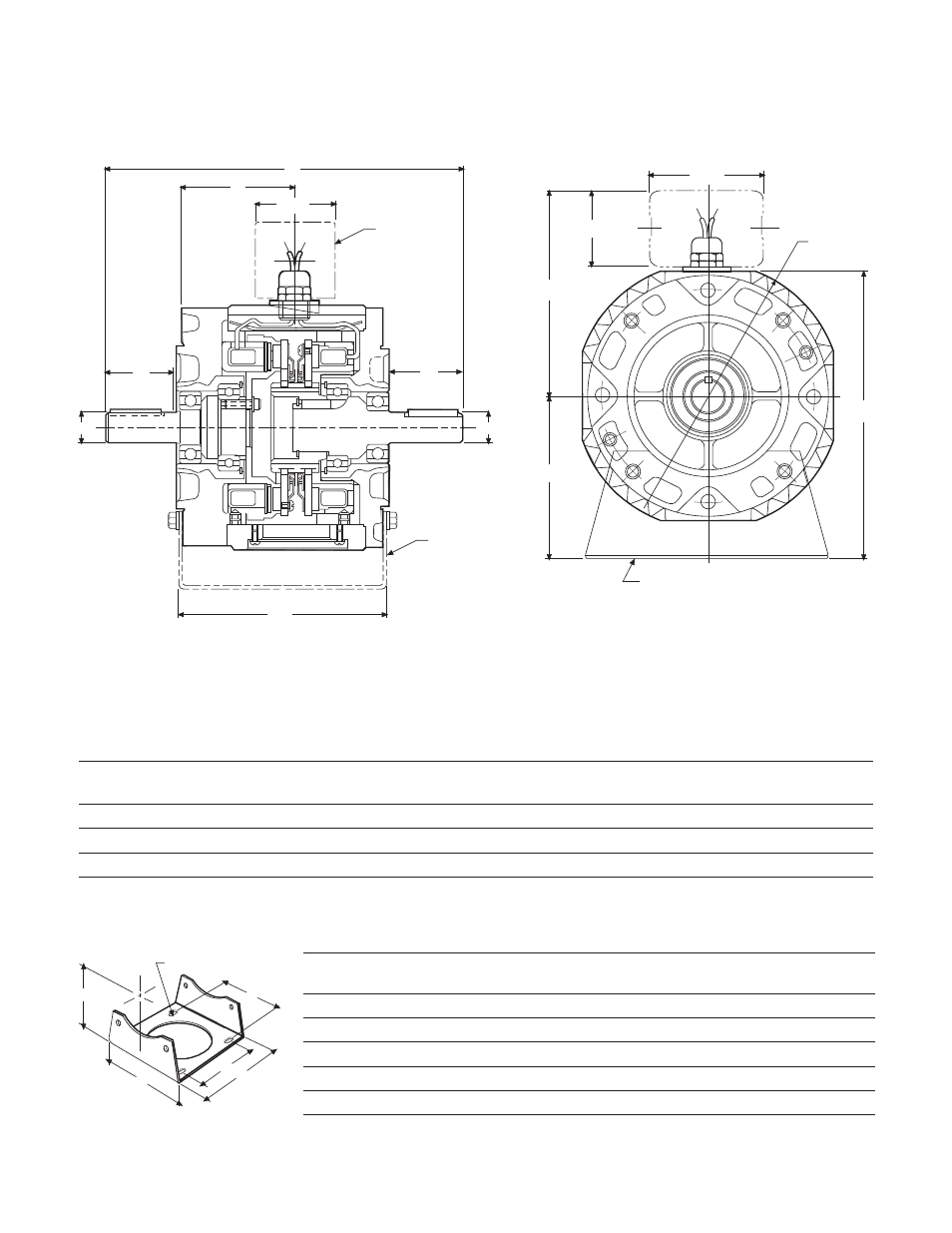

DimensionsEUM-2030
C
min.
D
30
Input
Clutch
B
Optional
Base Mount
D
C
min.
Optional
Conduit Box
A
F
2.203
3.125
2.188
E
G
H
Optional
Base Mount
EUM2030 Base mounted UniModules
E
Size A B C D EUM EUM-W F G H I
50 9.516 5.719 1.813 .625 7.270 6.915 3.164 5.936 3.670 7.119
180 9.516 5.719 1.890 .875 7.270 6.915 3.164 5.936 4.484 8.119
210 12.969 7.719 2.500 1.125 10.000 10.00 4.514 7.146 5.234 10.234
Note: Washdown UniModules (EUM-W) do not have a finned housing.
E
F (4) slots
A
D
C
B
Base(B)
PartNo.
Size A B C D E F EUM EUM-W
50 6.000 5.000 5.672 4.000 2.171 .750 x .406 5370-101-062 5370-101-046
100 6.000 5.000 5.672 4.000 2.171 .750 x .406 5370-101-062 5370-101-046
180 6.625 5.000 5.672 4.000 3.000 .750 x .406 5370-101-002 5370-101-047
210 9.000 7.750 8.203 6.000 3.375 .750 x .531 5371-101-001 5371-101-025
215 9.000 7.750 8.203 6.000 3.385 .750 x .531 5371-101-001 5371-101-025
