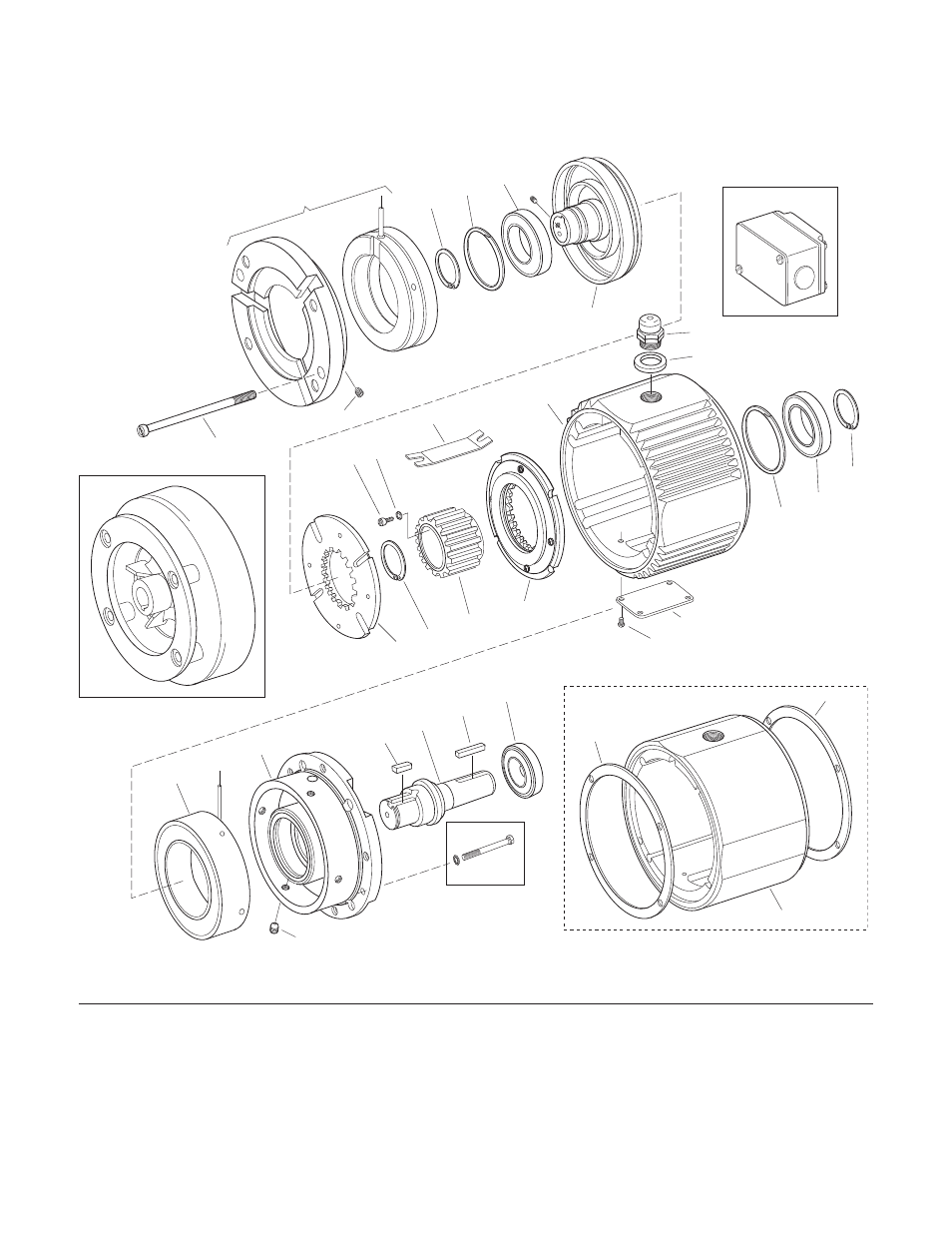

EnclosedUniModulePartsList
1020Combinations
10
19
9a
17
17a
18
11a
11
Optional
21
21W
5
4
23
1
3
2
1
14
20
20W
22
6a
13a
13
7a
6b
7b
16a
16
16W
2a
Optional
12
12W
9a
8
9
26W
26W
14W
Optional
15
15W
Specifications
EUM-50
EUM-100
EUM-180
EUM-210
EUM-215
Voltage – DC
6, 24 or 90
6, 24 or 90
6, 24 or 90
6, 24 or 90
6, 24 or 90
Static Torque – lb.ft.
16
30
30
95
95
Maximum Speed – RPM
3600
3600
3600
3600
3600
Average Weight – lbs.
10.0
13.2
13.2
30.6
30.6
Total cycled inertia
– WR
2
(lb.ft.
2
)
.017
.041
.041
.20
.202
