18 Warner Electric • 800-825-9050 P-213 • 819-0303

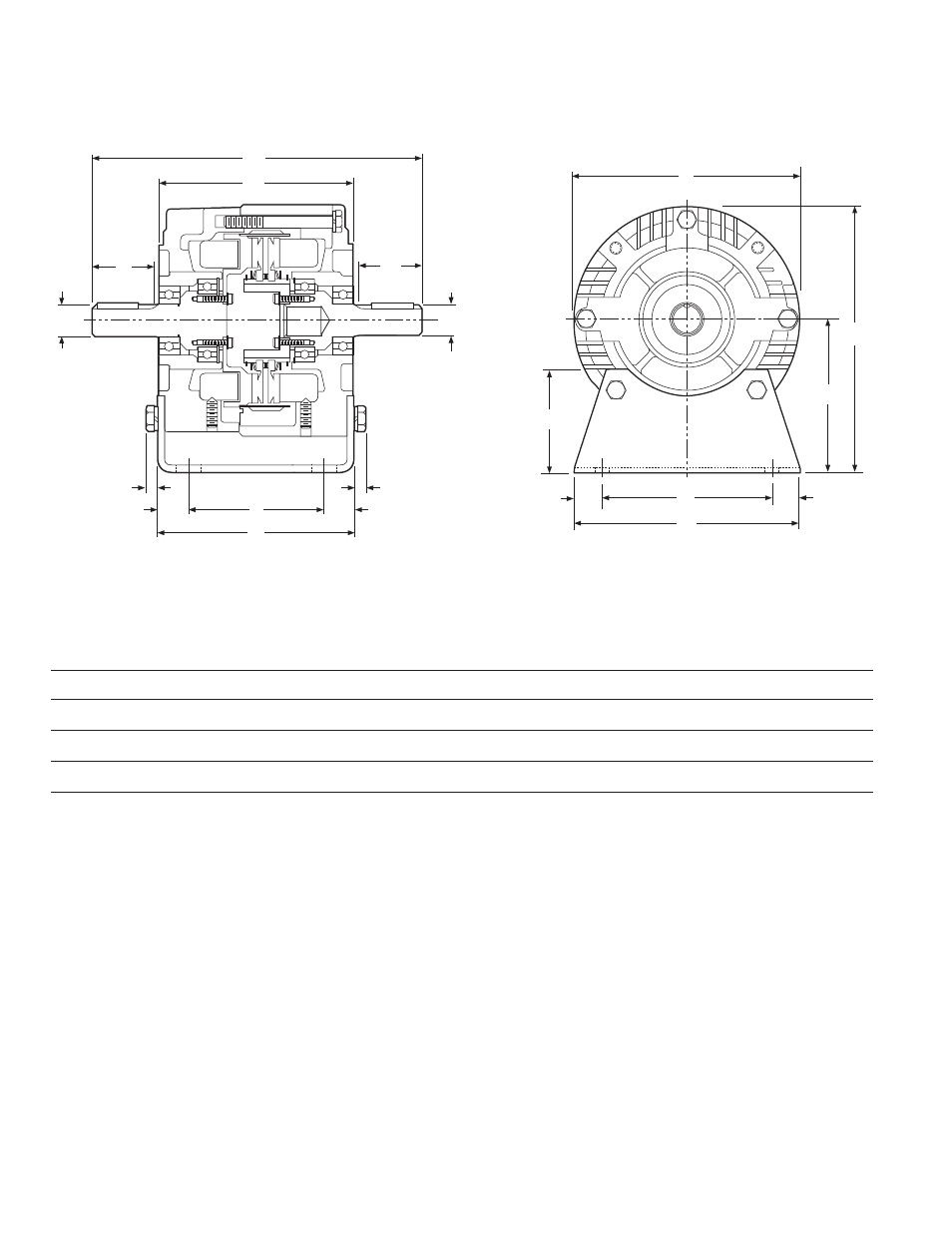

EM-20/30 Brake/Input Clutch Combination
EM-20/30-B Brake/Input Clutch Combination – Base Mounted
All dimensions are nominal, unless otherwise noted.
Size A B C Min. D E F G H I J K L M N O
50 5.719 9.516 1.813 .625 5.672 .844 4.000 .344 6.688 3.500 6.844 2.000 6.000 .500 5.000
100 5.719 9.516 1.813 .625 5.672 .844 4.000 .344 6.688 3.500 6.844 2.000 6.000 .500 5.000
180 5.719 9.656 1.891 .875 5.672 .844 4.000 .344 6.688 4.500 7.844 3.000 6.625 .813 5.000
210 7.719 12.969 2.500 1.125 8.203 1.094 6.000 .438 9.688 5.250 9.906 3.375 9.000 .625 7.750
D
C
H
F G
E
F
H
D
C
A
B
M
O N N
J
K
L
I
30
Input Clutch
Module
20
Brake
Module
Note: Mounting base is optional and is ordered separately.
Input Clutch (30) module and Brake Module (20) are
ordered separately.
