All dimensions are nominal, unless otherwise noted.
Size A B C D E I J K L M N O NEMA Frame Size
50 6.750 4.844 1.813 6.750 .625 6.688 3.500 6.844 2.000 6.000 .500 5.000 56C/48Y*
100 6.750 4.844 1.813 6.750 .625 6.688 3.500 6.844 2.000 6.000 .500 5.000 56C/48Y**
180 6.828 4.844 1.891 6.750 .875 6.688 4.500 7.844 3.000 6.625 .813 5.000 182C/143TC
184C/145TC
210 8.891 5.922 2.500 9.250 1.125 9.688 5.250 9.906 3.375 9.000 .625 7.750 213C/182TC
215C/184TC

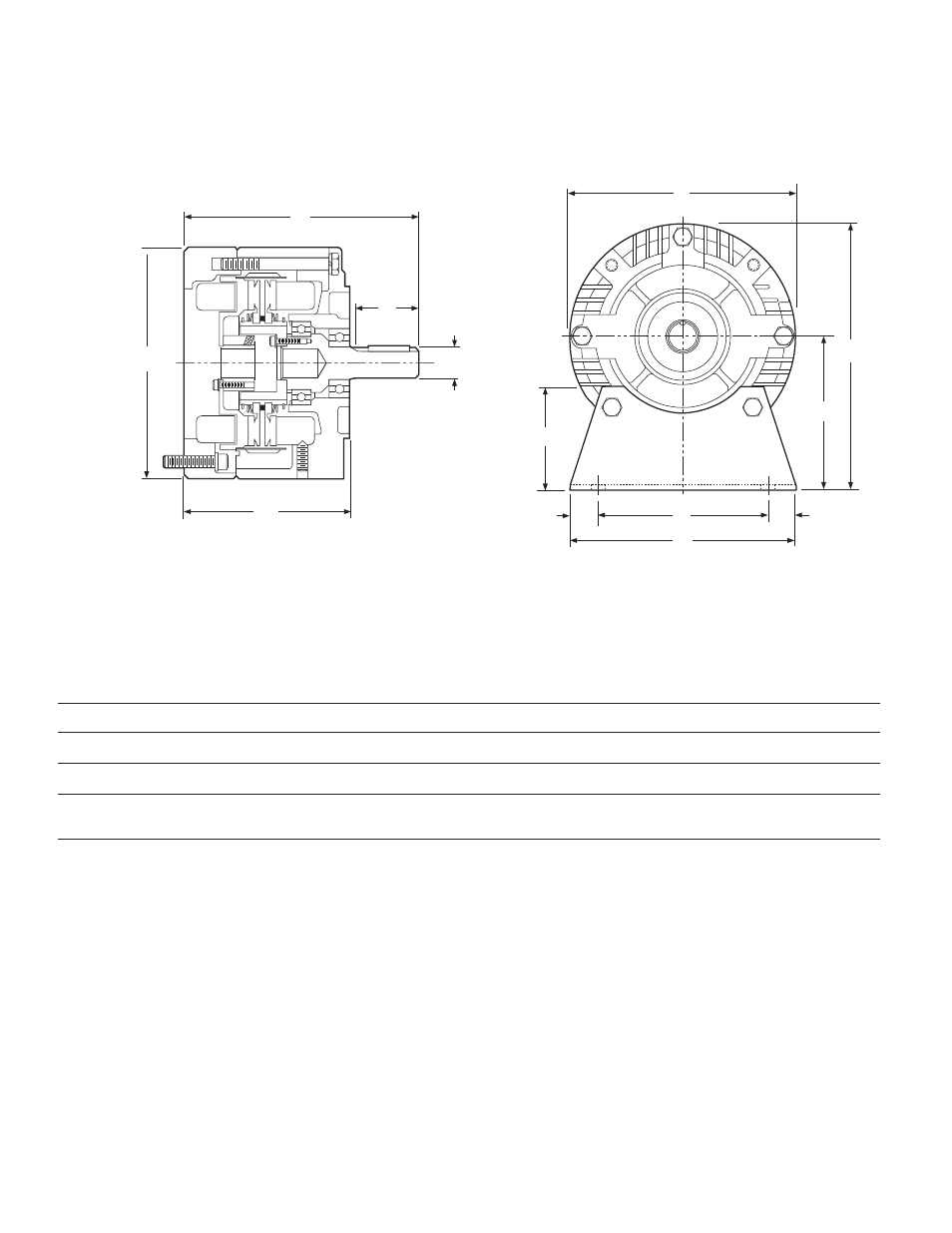

EM-10/20 Clutch/Brake Combination
A A
D
B
C
E E
10
Motor Clutch
Module
20
Brake
Module
* For 56C/48Y Frame motors 3/4 HP and smaller the EM-100 size
may be used where extended life is desirable.
** EM-100 size is recommended for motors 1 HP and larger.
For NEMA standard frame sizes, see page 20.
M
O N N
J
K
L
I
Note: Mounting base is optional and is ordered separately.
Motor Clutch (10) and Output Clutch (20) are ordered separately.
