10
Curtis PMC 1207/1207A Manual 3
INSTALLATION AND WIRING: 1207
MOUNTING
The 1207 controller can be oriented in any position, but the location should be
carefully chosen to keep the controller as clean and dry as possible. If a clean
mounting location cannot be found, a cover must be used to shield the
controller from water and contaminants.
To ensure full rated output power, the controller should be fastened to a
clean, flat metal surface with three screws. The case outline and mounting hole
dimensions are shown in Figure 2. The controller should be mounted with
sufficient clearance to allow the sliding cover to be opened, providing access to
2
2 — INSTALLATION & WIRING: 1207 Controller
66 (2.60)
28 (1.10)
122
(4.80)
152 (6.00)
165 (6.50)
127 (5.00)
SLIDING
COVER
6.5 (0.25)
22 (0.85)
60
(2.35)
4.8 (0.19)
21 Ч 16 Ч 1.5
(0.83 Ч 0.63 Ч 0.06);
8.4 (0.33) dia. hole thru
6.6 (0.26) dia.,
3 plcs
Dimensions in millimeters and (inches)
CL

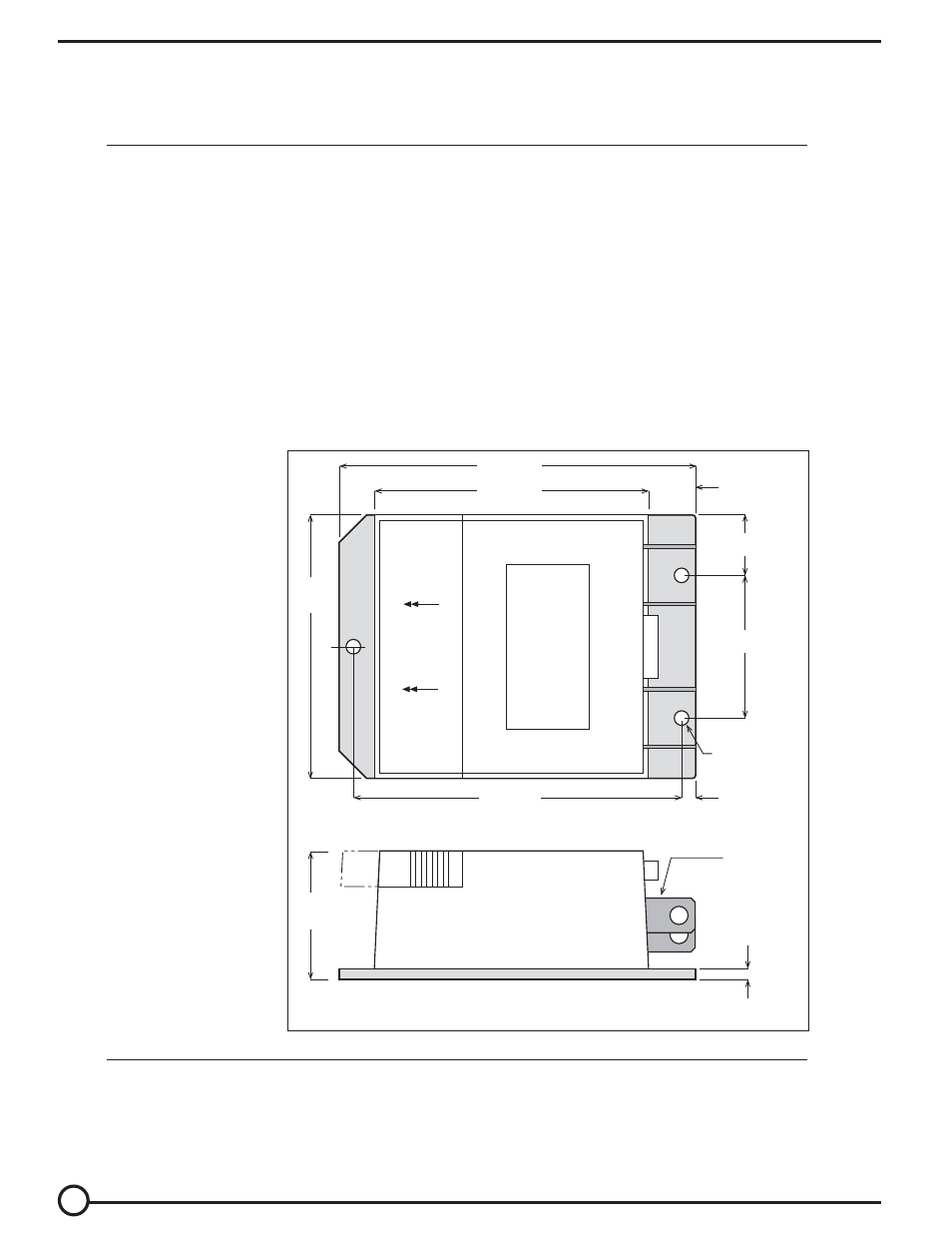

Fig. 2 Mounting
dimensions,
Curtis PMC 1207
controller.
