ADP30x Probe

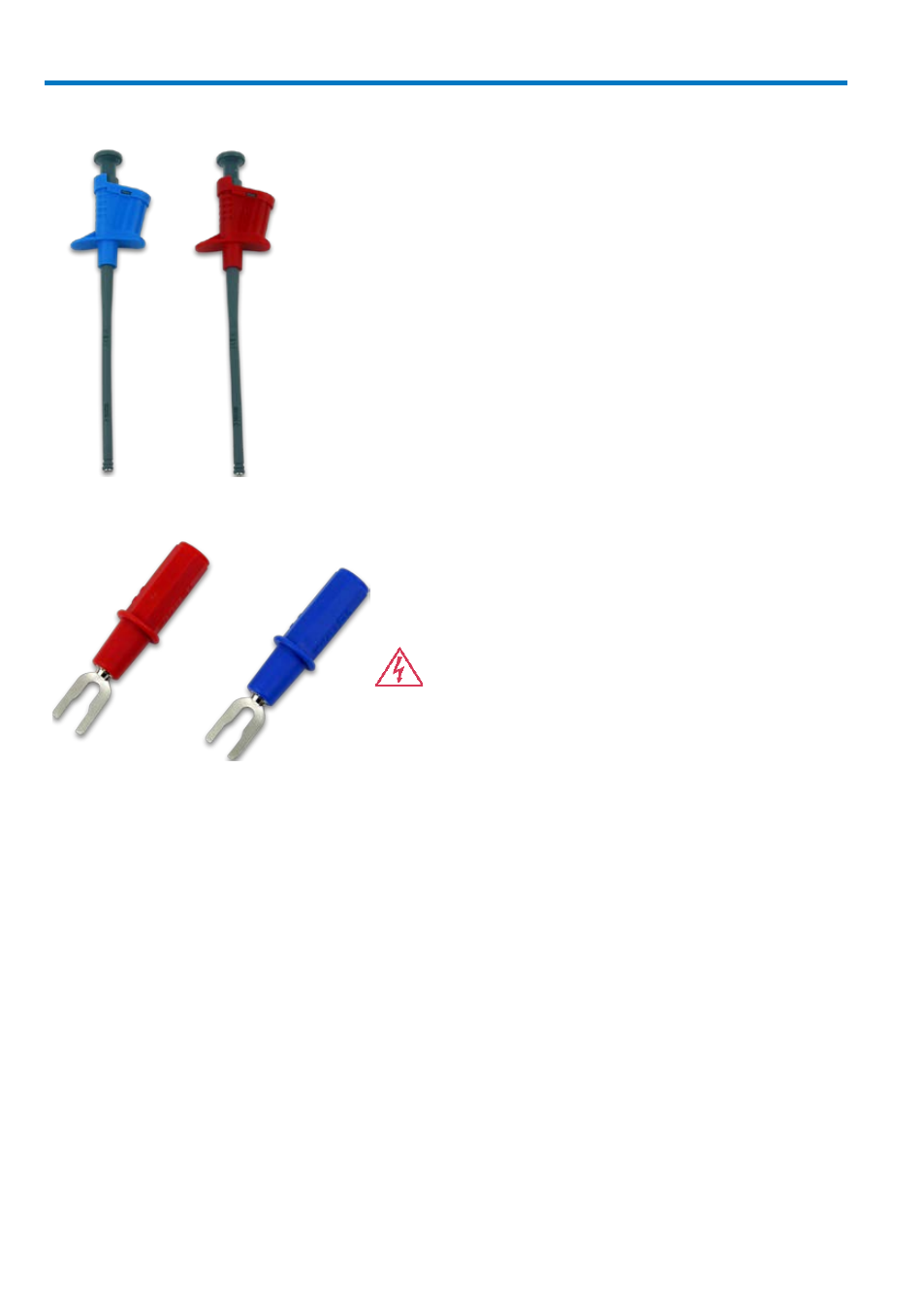

Plunger Clamp Clip (1 Red, 1 Blue)
Insulated, 1000 V, CAT III. Designed for
attaching to hard-to-reach test points, the
entire body is fully insulated. The overall
length is 160 mm (6.3 inch). The clamp can grab
leads, pins and wires up to 5 mm (0.2 inch) in
diameter.
Spade Terminal
Insulated, 1000 V, CAT II. Designed to connect
to terminal strips, posts, and screws, the
overall length is 65 mm (2.55 inch).
WARNING. To avoid injury or death due
to electric shock, do not connect or
disconnect probe input leads to the Spade
Terminals while they are connected to a
voltage source. Spade Terminals must not be
used as hand-held accessories; they are meant
to be used as a permanent installation in a test
set up.
Soft Accessory Case
This can be used to carry probes and accessories. It can also be mounted on your
oscilloscope for storing all your accessories and manuals. See Appendix B for
installation instructions.
