Foot Mode Operation
continued
3. Press the Foot Pedal 24 to run the motor from start to a maximum speed (set by the speed
control knob).
4. To increase speed, release foot pedal and allow motor to stop. Dial in new maximum speed
and proceed.
In Foot Pedal Mode the micromotor will not exceed the preset speed.
Changing from Foot to Hand Mode
1. Press Hand/Foot selector switch, 10.
2. Press Motor On/Off switch, 3 and select a speed using the control knob 7.
Auto Cruise Mode
When the Foot Pedal is used, the Auto Cruise feature allows the speed to be maintained when the
Foot Pedal is NOT pressed. Activate by pressing the Auto Cruise Switch 5 while keeping the Foot
Pedal depressed, for 2 seconds at the desired speed. Deactivate by pressing the Foot Pedal.
5
3
4
8
9
5
6
7
10
11
12
15
14
16
13
1
2
18
17
20
19
23
25 24 26
21 22

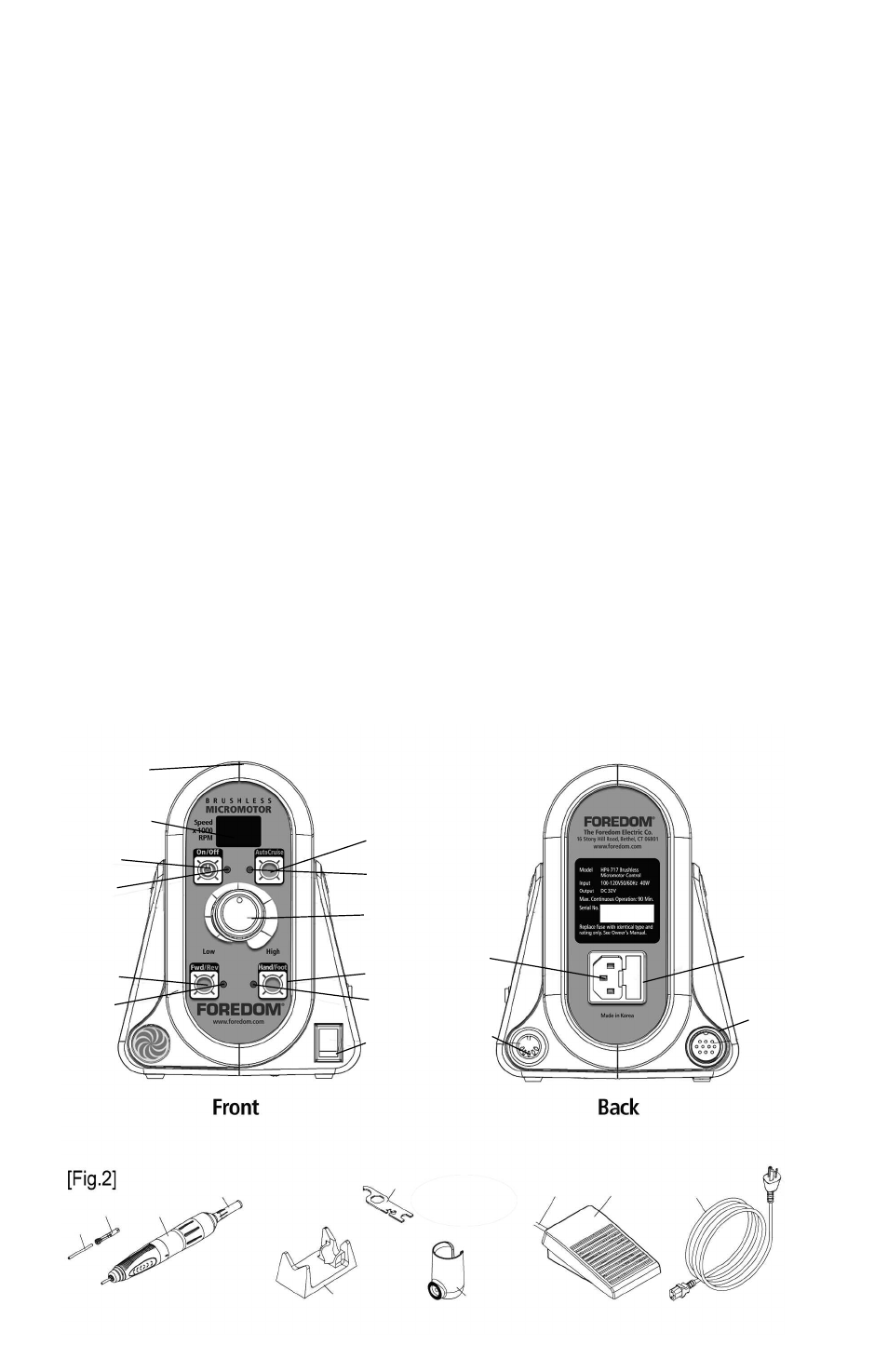

Components
1
Control Unit (HP4-717)
2
Speed Display
3 Motor On/Off Switch
4
Motor On Indicator Light
5
Auto Cruise Switch
6
Auto Cruise On Indicator Light
7 Speed Control Knob
8
Forward/Reverse Selector Switch
9
Forward/Reverse Indicator Light
19
Handpiece (Brushless DC
micromotor H.MH-150)
20 Handpiece Motor Cord
21
Handpiece Cradle
(No. HP4-933)
22
Handpiece Holder
23
Chuck Wrench
24
Foot Pedal (HP7-7060)
25
Foot Pedal Cord
26
Power Cord
10 Hand/Foot Selector Switch
11
Hand/Foot Indicator Light
12
Power On/Off Switch & Light
13 Handpiece Plug Outlet
14
Foot Pedal Plug Outlet
15
Power Cord Plug Outlet
16
Fuse Holder with spare fuse
17 Test Bur
18
3/32 ″ Collet (1/8″ is optional)
Collet part numbers and sizes
are listed on page 7.
