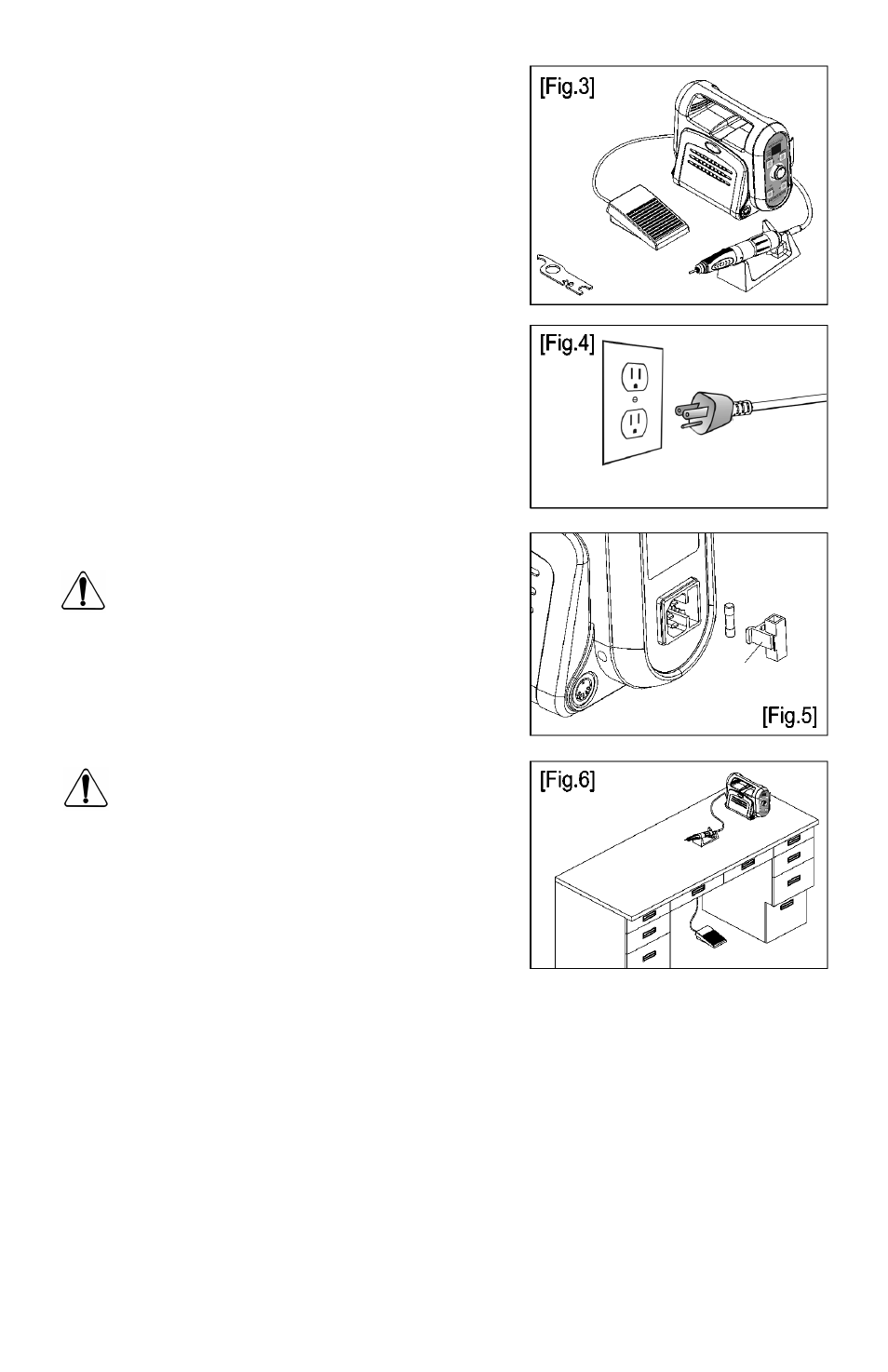

AC Power Input (Fig. 4)
1. Check the label on the rear of the Control Unit to
make sure that the electrical specifications match
your AC power.
2. If the fuse needs to be replaced ( Fig. 6), replace it
with identical type and rating only– 5x20mm,SLO-
BLOW, 3.15A, 250V. For a 230V Micromotor use a
5x20mm,SLO-BLOW, 1.6A, 250V. The Fuse Holder 16
contains a spare fuse (Fig. 5).
CAUTION
•
Never plug or unplug the Power Cord with wet
hands to avoid electric shock.
•
Use only with a grounded AC power receptacle.
Installation
CAUTION
•
The Control Unit should rest on a flat, steady
surface. Avoid blocking the ventilation openings in
the bottom of the case.
•
Use the Control Unit in locations that have a
temperature below 100ºF. Avoid excessively dusty,
hot or humid locations.
Complete Kit (Fig. 3)
Control Unit, Power Cord
Handpiece
Handpiece Holder,
Phillips Screw, Washer
Foot Pedal
Handpiece Cradle
Chuck wrench
16
3
