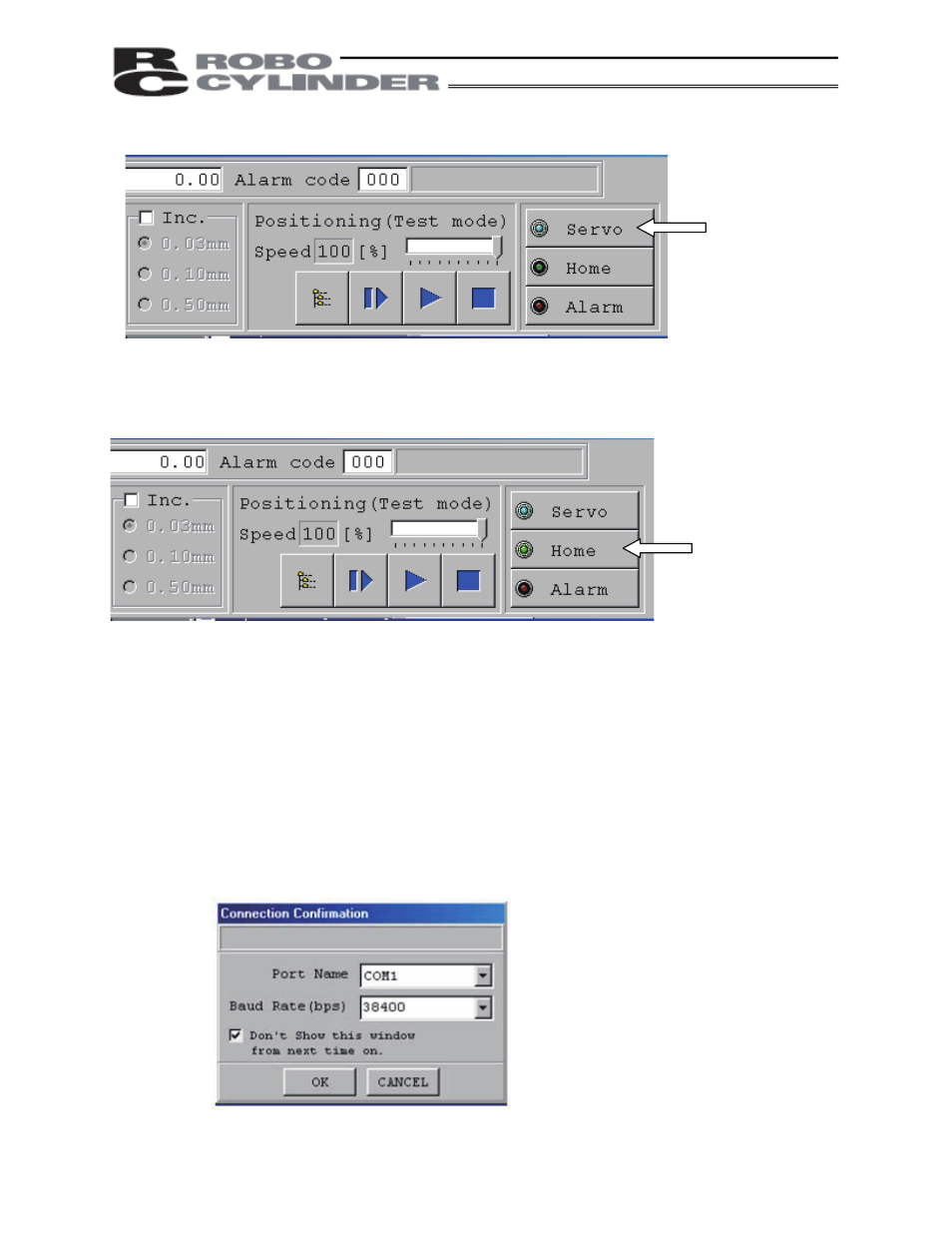

(7) Click

Servo.

The servo lamp should illuminate in blue when Servo is clicked.

(8) Click

Home.

The home lamp should illuminate in blue when home return is completed.

An absolute reset has been executed.

x PSEL
Perform an absolute reset based on the following procedure using “X-SEL PC Software (V7.04.00.00 ~).”
(1) Supply the main power (24 VDC) to the controller and the simple absolute unit.

If there is no item to be adjusted other than “ABS unit encoder error (2)” and the panel unit is
connected, the 7-segment LED will display “E41C.”

(2) Bring the X-SEL PC software online to communicate with the controller (connect the controller and the

PC using a dedicated communication cable).

(3) When the [Confirm Connection] dialog box is displayed, adjust the communication port setting

according to the PC in use. Click the [OK] button. (The baud rate is automatically recognized even if
you do not specify it.)
