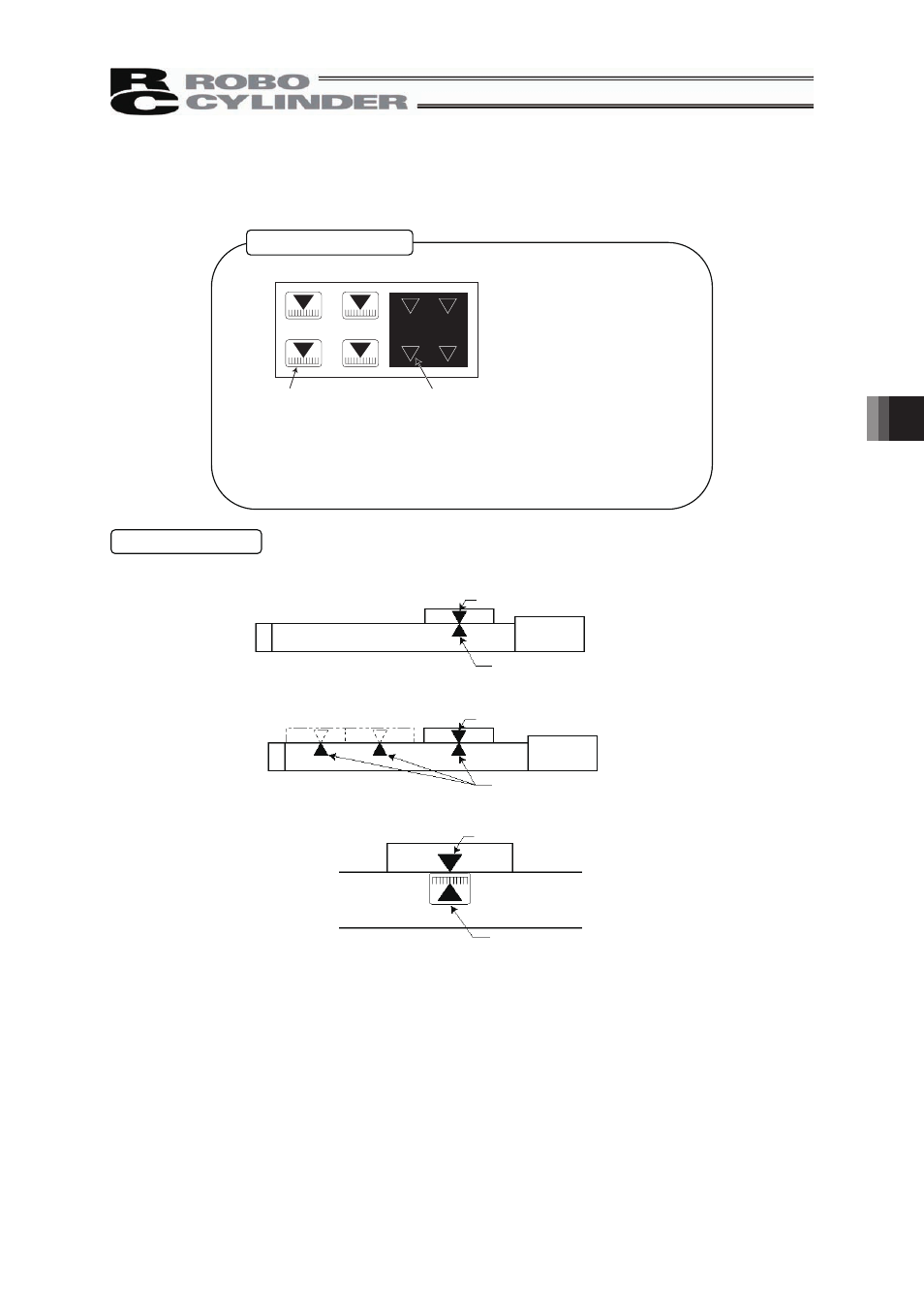

6. How to use the home mark

Please affix these marks to the actuator as home markers as needed.

Home mark sticker

Home mark scale × 4 Home mark × 4

(Scale: 1 mm graduation mark, 10 mm width)

•

Peel off the marks from the base sheet.

Note 1. Every mark has sticky back.

2. Remove smear and stain from the surface.

3. Avoid label or nameplate as a marking location.

Contents of sticker

× 1 sheet

Example of Use

1) Used to indicate the direction of actuator home

On the slider

On the base near home position

Motor

2) Used as stop positions

Motor

On the slider

At stop positions on the base

3) Used for position deviation check

On the base

On the slider

• Place the marks when the actuator is stopped at home position.
