Securitron EXD - Manual (Page 7)

PN# 500-13350
Page 7 Rev. E, 11/11
Switch 1: This sets the amount of time for
release delay. In the factory set (Off)
position, release delay is set for 15
seconds. Turning the switch On sets a 30
second release delay.
Switch 2 and 3: The combined position of
the 2 switches selects 4 different values
for nuisance delay.
MATRIX #1: Switch 2 Off; Switch 3 Off (factory set): nuisance delay disabled
MATRIX #2: Switch 2 On; Switch 3 Off: 1 second nuisance delay
MATRIX #3: Switch 2 Off; Switch 3 On: 2 second nuisance delay
MATRIX #4: Switch 2 On; Switch 3 On: 3 second nuisance delay
Switch 4: This implements BOCA timed relocking (see Section 4.4). In the factory set (Off)
position, standard relocking from a momentary reset switch is implemented. When the switch is
turned On, 30 second delayed BOCA relocking is set. Under some conditions, local authorities
may require a 45 second delayed BOCA relocking. The standard XDT board does not support
this. Contact the factory to order a modified board with the 45 second feature.

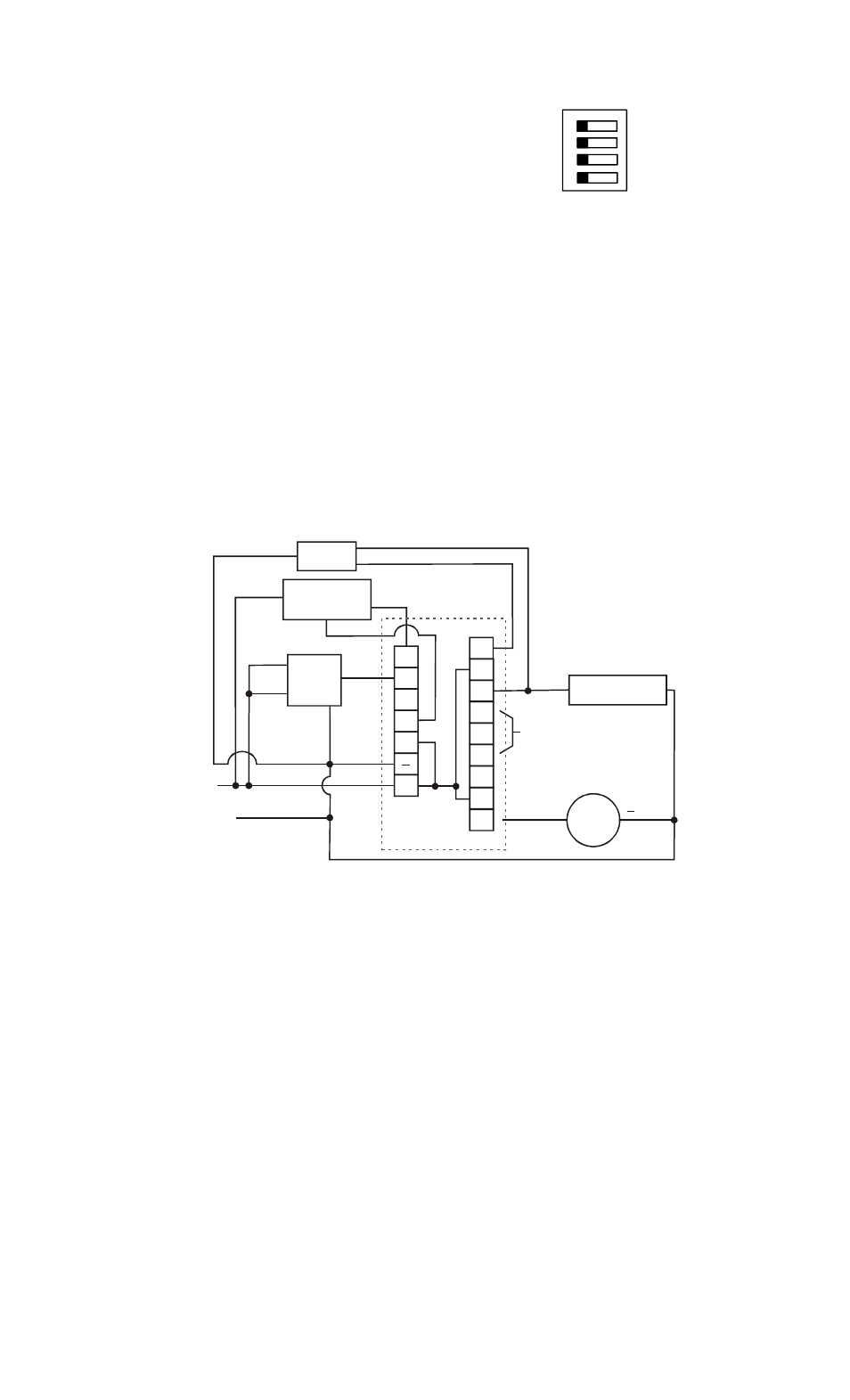

FIG 2: TYPICAL WIRING, EXD SYSTEM
WITH TOUCH SENSE BAR OR TOUCH SENSE PLATE
LED
MK
KEYSWITCH
TSB-3
OR
TSH
MAGNALOCK
NC
C3
NO
NC
C2
NO
NC
C1
NO
XDT BOARD
IF DOORSWITCH
REPLACES KEYSWITCH
IT MUST BE CLOSED
WHEN DOOR IS CLOSED
REMOTE ALARM
RELAY
RED
BL
A
C
K
SONA-
LERT
RED
GREEN
RED
GRN
WHT
RED
BL
A
C
K
+
V+
RS
IN
FE
BP
LS
+
BLACK
WHITE
BLUE
0V (NEG)
FR
O
M
PO
W
E
R
S
U
PP
LY
DIP
SWITCHES
0N
OF
F
1
2
3
4
FACTORY SETTINGS SHOWN IN BLACK
BOCA RELOCKING STANDARD RELOCKING
MATRIX (SEE TEXT)
MATRIX (SEE TEXT) MATRIX (SEE TEXT)
MATRIX (SEE TEXT)
15 SEC. RELEASE DELAY 30 SEC. RELEASE DELAY
