Securitron MCL-24 User Manual
Page 7
PN# 500-19100
Page 7
Rev. C, 04/11
B.
Preparation for Swinging Door and Pull Out Drawer Installations:
L
C
C
L
Ref. CL
.850
.750
1.875
1.875
C
L
L
C
.150
.950
Ref. CL
1.875
1.875
.50
For Sex Bolt
Drill .125 Diameter
Hole .300 Deep

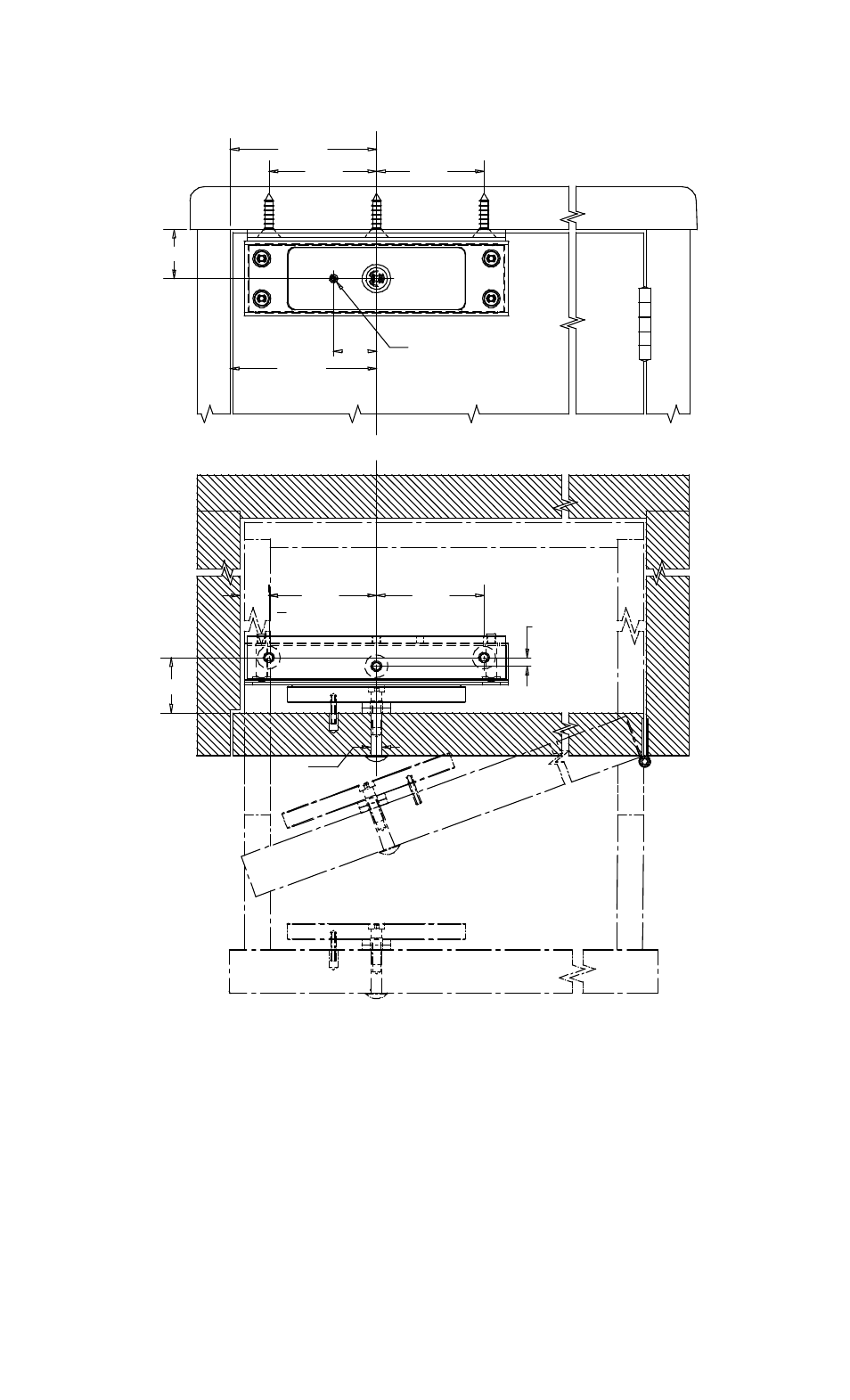

VIEW OF STRIKE INSTALLATION
FROM DOOR OF CABINET
FROM TOP OF CABINET
VIEW OF LOCK BODY INSTALLATION
NOT TO SCALE - DIMENSIONS IN INCHES
.203 Diameter
Hole Thru
