Securitron M82B - Manual (Page 4)

PN# 500-10420
Page 4
Rev. F, 02/11

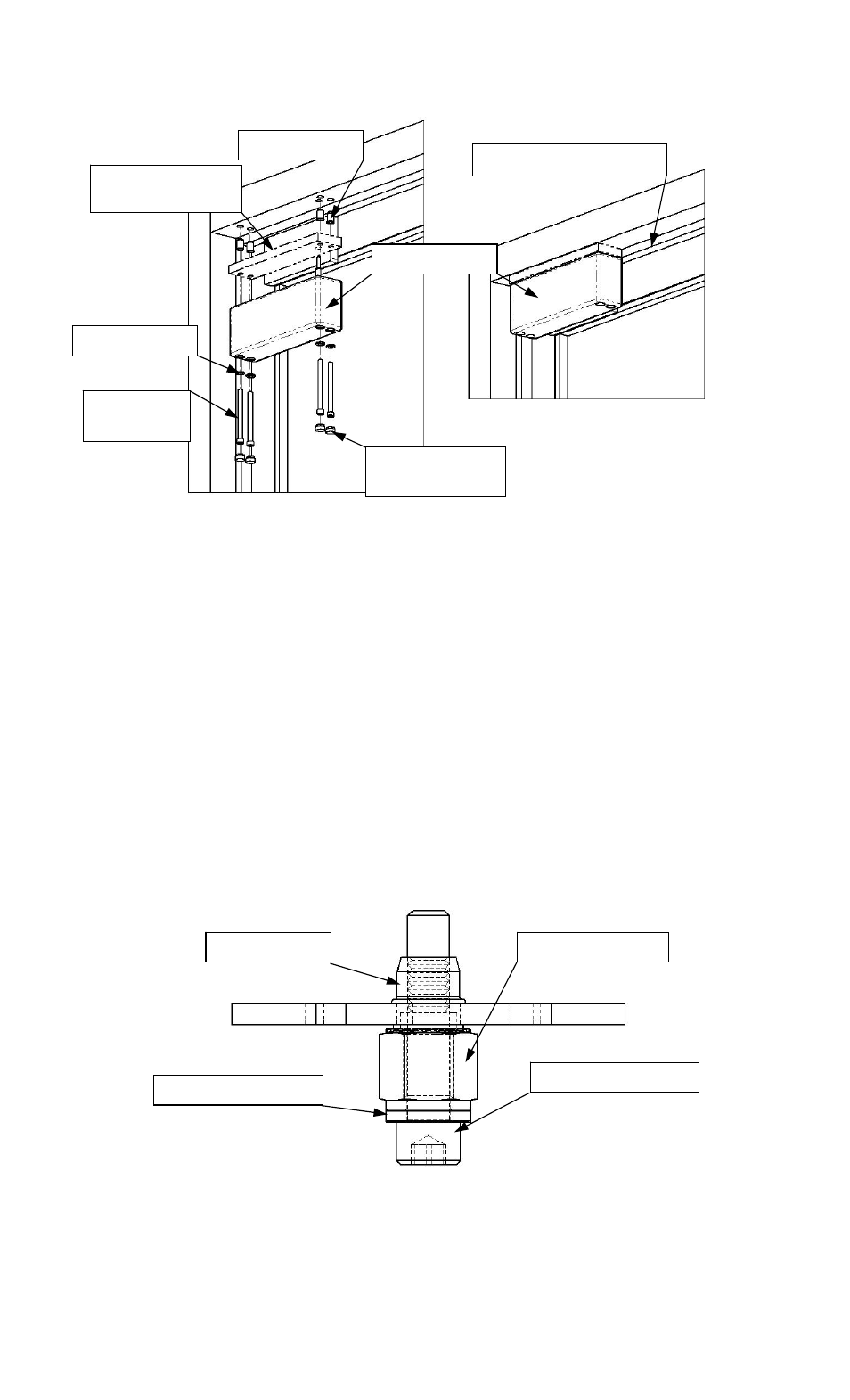

Figure 4 below illustrates a typical Magnalock out-swinging door installation.
Figure 4
Blind nuts MUST be used for mounting Magnalocks to aluminum and/or hollow metal frames.
These items are included with the Magnalock hardware pack.
NEVER USE SHEET METAL SCREWS TO MOUNT MAGNALOCKS
5.2.2 Blind Nut Installation
Install a blind nut into each of the 3/8” [9.5mm] hole using the blind nut collapsing tool
provided. Use the following instructions and Figure 5 for the installation of the blind nuts:
 Drill 3/8” [9.5mm] diameter mounting holes into the marked locations of the frame.
 Insert the assembled Blind Nut and Installation Tool into a mounting hole.
 Use 1/2” [13mm] box-end wrench for holding the Install Nut.
 Use a 3/16” [5.0mm] Hex Wrench with the Socket Cap Screw to collapse the Blind Nut.
 Remove the collapsing tool when finished.
 Check that the blind nut is collapsed properly.
 The collapsing tool is reusable for several blind nut installations.
Figure 5
Blind Nuts
Magnalock
Mounting Hole
Dress Plugs
ASB Bracket
(Not Included)
Mounting
Screws
Door Frame & Stop
Flat Washers
Blind Nut
2X Flat Washers
Socket Cap Screw
Install Nut
