Securitron M68 (L, S and LS with D and T Options) - Manual (Page 3)

PN# 500-21400
Page 3 Rev. B, 8/07
5.2. Door Lock Installation

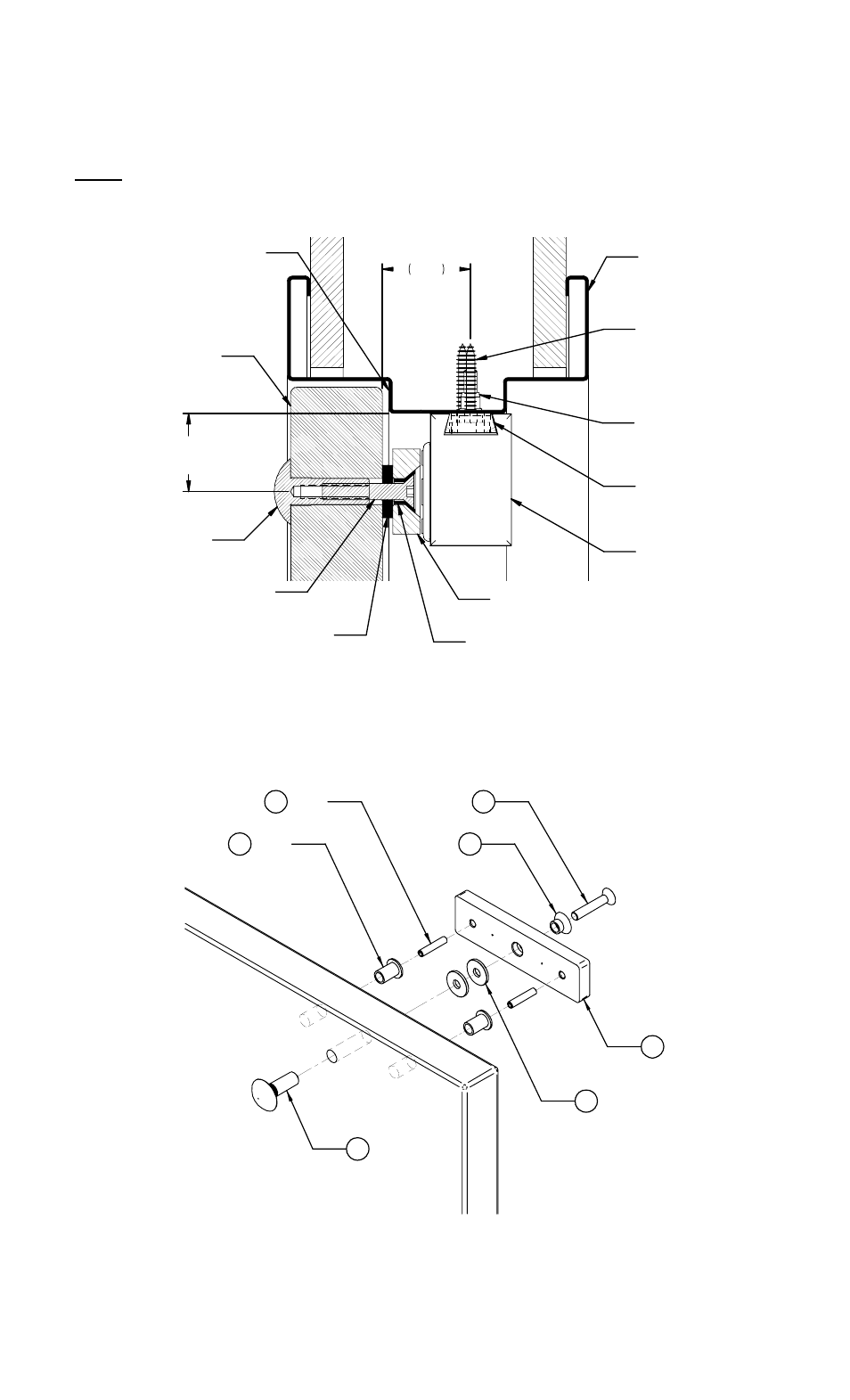

Figure 1 below is a typical cross section view of an M38 installed to a metal door frame in
the outswinging door mount configuration:
Note: Reference dimensions are in parenthesis – see the product mounting template for
clarification.
(1.50 [38.1mm] - M38)
(2.04 [51.8mm] - M68)
1.74
([44.2mm])
LOCK HOUSING
(M38 SHOWN)
LOCK MOUNT
BRACKET
5/16" STRIKE
MOUNTING SCREW
(DOOR FRAME)
(METAL)
(DOOR)
SEX BOLT
(DOOR STOP)
(2X) BLIND NUT &
1/4-20 X 1" LONG
MACHINE SCREW
(3X) #12 X 1-1/2"
LONG TYPE "A"
SCREW
STRIKE PLATE
(M38 SHOWN)
STRIKE BUSHING
(2-3X) RUBBER
WASHERS
Figure 1
5.2.1. Door Preparation
Figure 2 below is an exploded illustration of the assembly of the strike to the door:
1 (X2)
2 (X2)
4
5
3
6 (X3)
7
Figure 2
