Reese 59772 ROOF RACK ACCESSORY User Manual

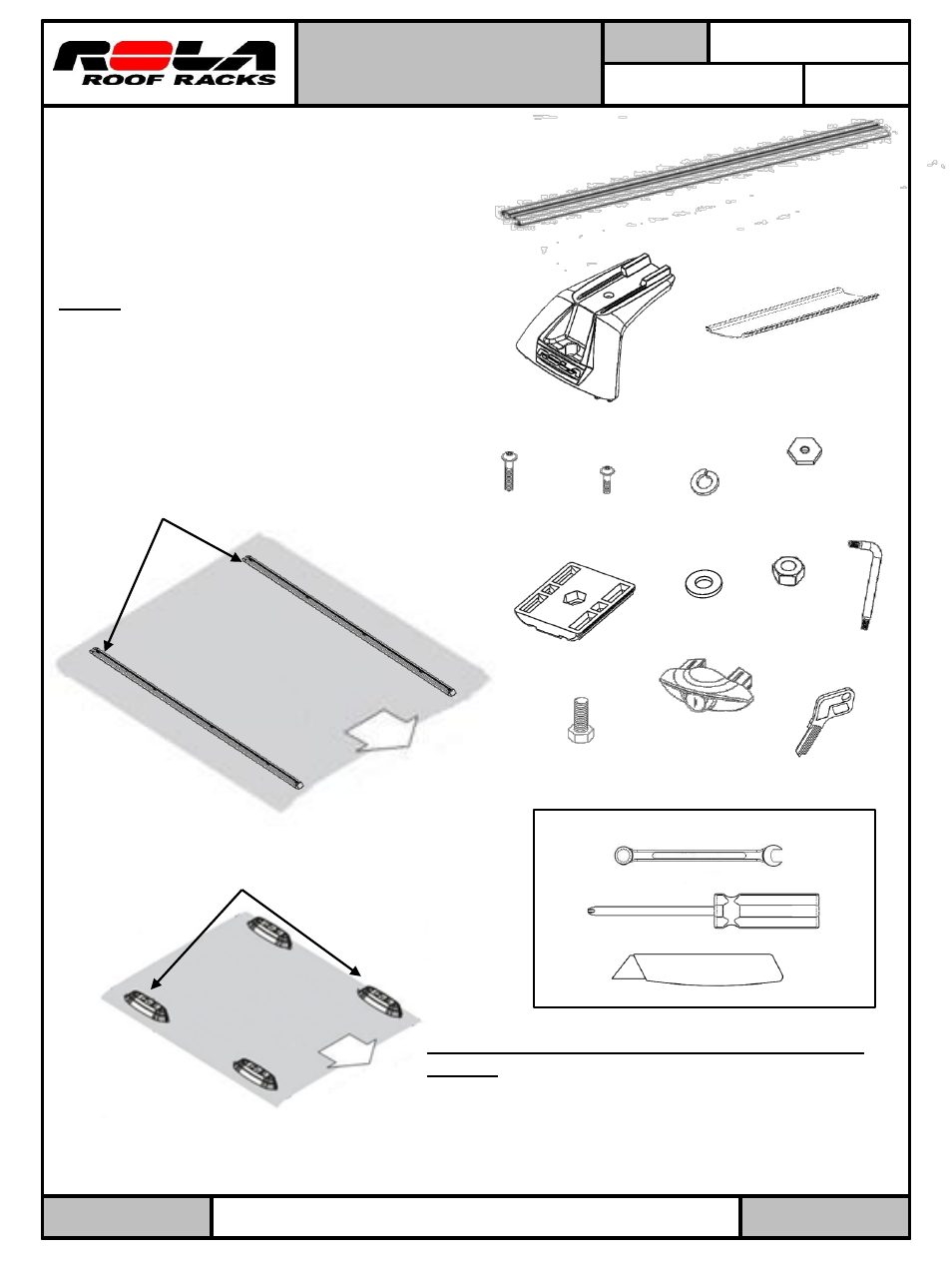

Pg 1 of 3, Parts list, Tools required

background image

PART No:

Fitting Instructions

APE (Anchor Point Extended)

Cross Bar Kits for Track & Direct

Mounting Systems




CARRYING CAPACITY:

Pg 1 of 3

75Kgs/

165 Lbs

Printed in China

Note: Prior to Assembly
Prior to assembling your cross bar kit check
that the kit contains all the parts you will need
to fit the cross bars. Refer to parts lists for
guidance.
Please read these instructions before assembly.

Step 1: Determine if you have a Direct or
Track mounting roof rack system. These
systems must be installed prior to installing
the cross bar kits. If it’s a Track Mounting
System (part numbers 59853, 59854, &
59855) follow steps 2 and 3. (Fig. 1) If it’s a
Direct Mounting System (part numbers
59753 & 59754) follow steps 4 and 5 (Fig. 2)

Step 2: Installing Cross Bars on a Track Mounting
System.
A.

Locate hardware bag labeled “Track Mount
Hardware”.

B. Assemble bolt M6x16 into End Support and thread

on M6 Hex nut brass onto bolt, (Fig. 3)

Bolt

M8 x 20mm

Qty 4

Clamp Plate

Qty 4

M8 Spring

Washer

Qty 4

M8 Washer

Qty 4

L Wrench

Qty 1

Direct Mount

Bolt M6 x 24mm

Qty 4

M8 Hex Nut

Qty 4

Cross Bar End Caps

Qty 4

13mm or adjustable wrench

Front of

vehicle

Vehicle’s roof

Fig. 1

Fig. 2

Parts list

End Cap Key

Qty 4

59772-3-4N REV 4-24-13

59772, 59773,

59774

Track Systems part numbers

59853

– 59854 - 59855

Direct Systems part numbers

59753

– 59754

End Support

Qty 4

Track Mount

Bolt M6 x 16mm

Qty 4

Cross Bars

Qty 2

Front of

vehicle

Vehicle’s roof

M6 Hex Nut

Brass

Qty 4

Under Cover

Qty 2

Phillips screw driver

Scissors or Blade

Tools required
