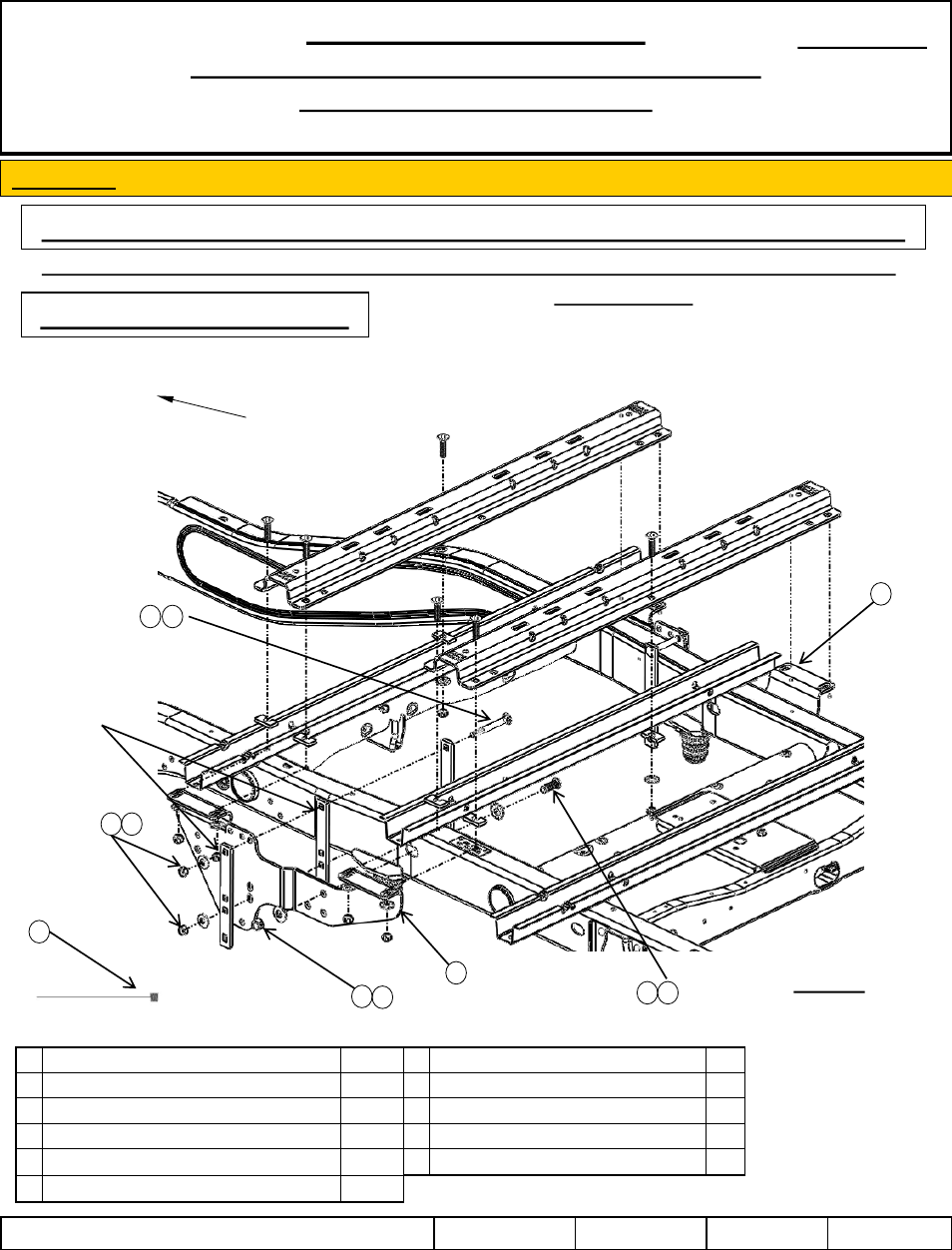

Vehicle Forward
Figure 5
Any hardware shown in
Figure 1, but not
described in table below
were supplied with
30153 kit.
Installation Instructions
REESE ® CUSTOM QUICK INSTALL MOUNTING KIT
FOR 30153 REESE ® RAILS ONLY
2007 & Up “New Body Style” 1500 GMC Pickups
WARNING:
Under no circumstances do we recommend exceeding the towing vehicle manufacturers recommended vehicle towing capacity.
READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION
REESE ® Custom Quick Install mounting brackets only include the hardware to attach the custom brackets to the frame.
10 BOLT INSTALLATION
Equipment Required:
Fastener Kit: 56007F
Wrenches: 3/4”, 15/16”
Drill Bits: 1/8”, 9/16”
Other Tools: Center Punch, Measuring Tape, 3/8” Allen
Head Socket
Part Number:
56007
1
2
6
3
9
5
8
4
4
10
11
# Description QTY # Description QTY
1 Driver Side Mounting Bracket 1 7 1/2"-13 Hex Nut 4
2 Passenger Side Mouting Bracket 1 8 1/2" Concial Washer 4
3 5/8"-11 Hex Nut 2 9 1/2"-13 X 5.5" Gr. 8 Carriage Bolt 4
4 5/8" Concial Washer 2 10 Reinforcement Block 4
5 Angle Bracket 1 11 5/8" Pull Wire 2
6 5/8"-11 Gr. 8 Button Head Cap Screw 2
Sheet 5 of 7
Depending on Truck
Model, Reinforcement
Block Location
Could Change
