Reese 30061 RAIL KIT User Manual

Page 9

30061IN – 08-29-08D

PCN11348

Litho in USA

11.

Remove 5/8” x 1 1/2“ bolts attaching frame bracket to mounting rails. Move rails rearward or forward to prevent

interference with hole drilling or punching of the truck bed.

12.

Drill pilot holes in truck bed at prick mark locations. With hole saw or knockout punch create 2 1/2” hole

centered at pilot holes. Note: Consult installer for recommended curing time on spray-in liner before cutting

holes through bed. Optional: Spray under coating around 2 1/2” holes to prevent rusting.

13.

Loosely reattach rails to frame bracket.

14.

From truck bed attach pucks and trim rings to rails (

Figure 21

) using 5/8” button head screw and lock washer.

Tighten to 100ft.lbs. torque.

15.

Insert puck plugs in plugs whenever pucks are not in use. (

Figure 22

)

16.

Install

Signature Series

5th wheel per hitch assembly instructions.

17.

Torque hitch assembly bolts per hitch instructions.

18.

Torque all 5/8” rail kit hex bolts to 170ft.lbs

19.

Replace any brake lines and spare tire that may have been removed/relocated.

WARNING:

DO NOT lubricate threads. It may cause bolt failure.

CAUTION:

Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural

members, etc.

CEQUENT TOWING PRODUCTS

does its best to communicate tow vehicle manufacturer

changes; however, it is ultimately the responsibility of the installer to prevent damage due to installation.

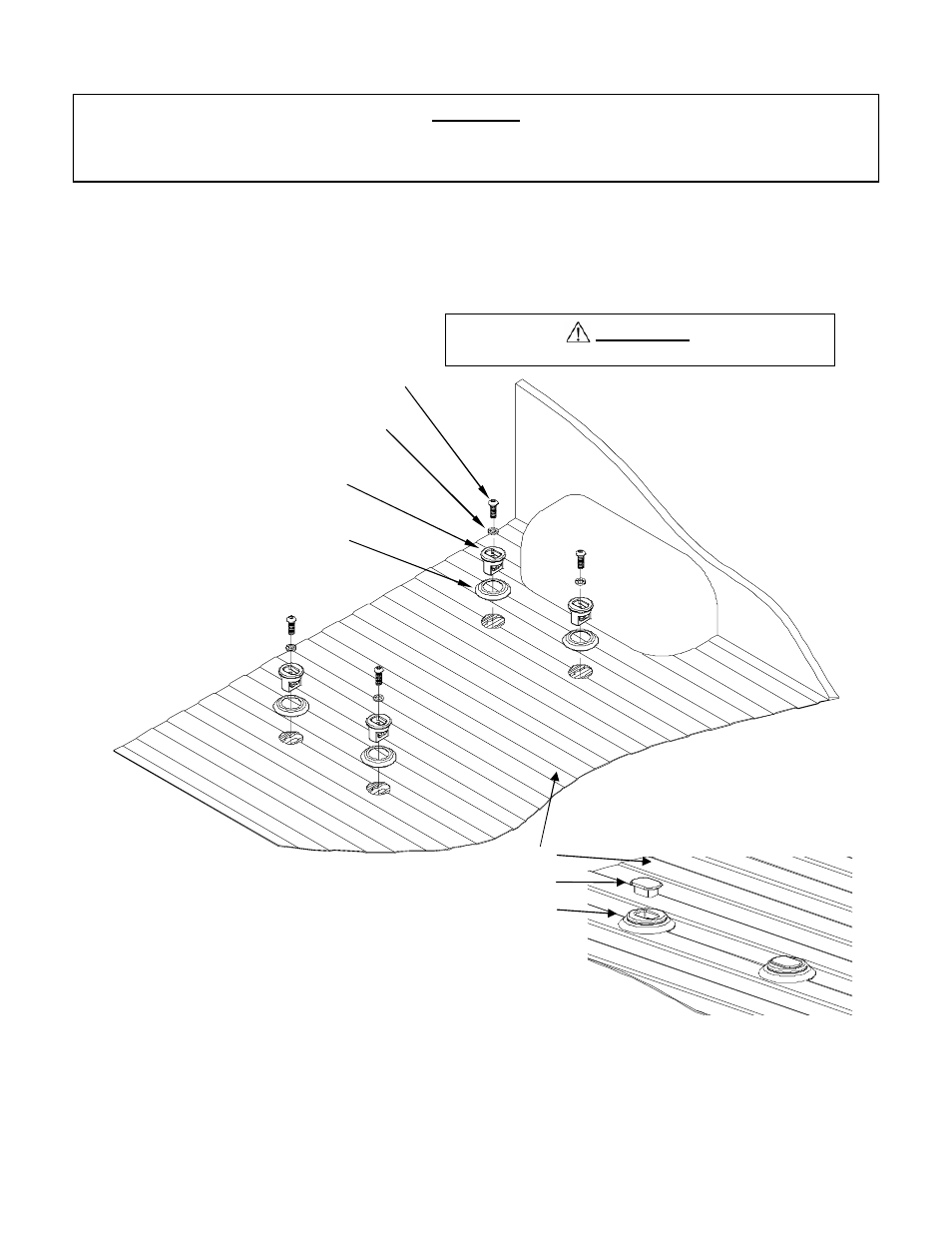

Figure 21

5/8” button head
4 places

Puck
4 places

Trim ring
4 places

5/8” lock washer
4 places

Figure 22

Truck Bed

Puck Plug

Puck Assembly
