Reese 30061 RAIL KIT User Manual

5’8” & 6’6” beds only

background image

30061IN – 08-29-08D

PCN11348

©2005, 2008 CEQUENT TOWING PRODUCTS, INC.

Litho in USA

INSTALLATION INSTRUCTIONS

MOUNTING KIT

GM ’99-’07 “CLASSIC”

1500 (LD/HD) and 2500

5’8” & 6’6” BEDS ONLY

Front of

vehicle

For Installation Assistance or Technical Help, Call 1-888-521-0510

DEALER/INSTALLER:

(1) Provide this Manual to end user.

END USER:

(1) Save this Manual for future reference.
(2) Pass on copies of Manual to any other user or owner of Hitch.

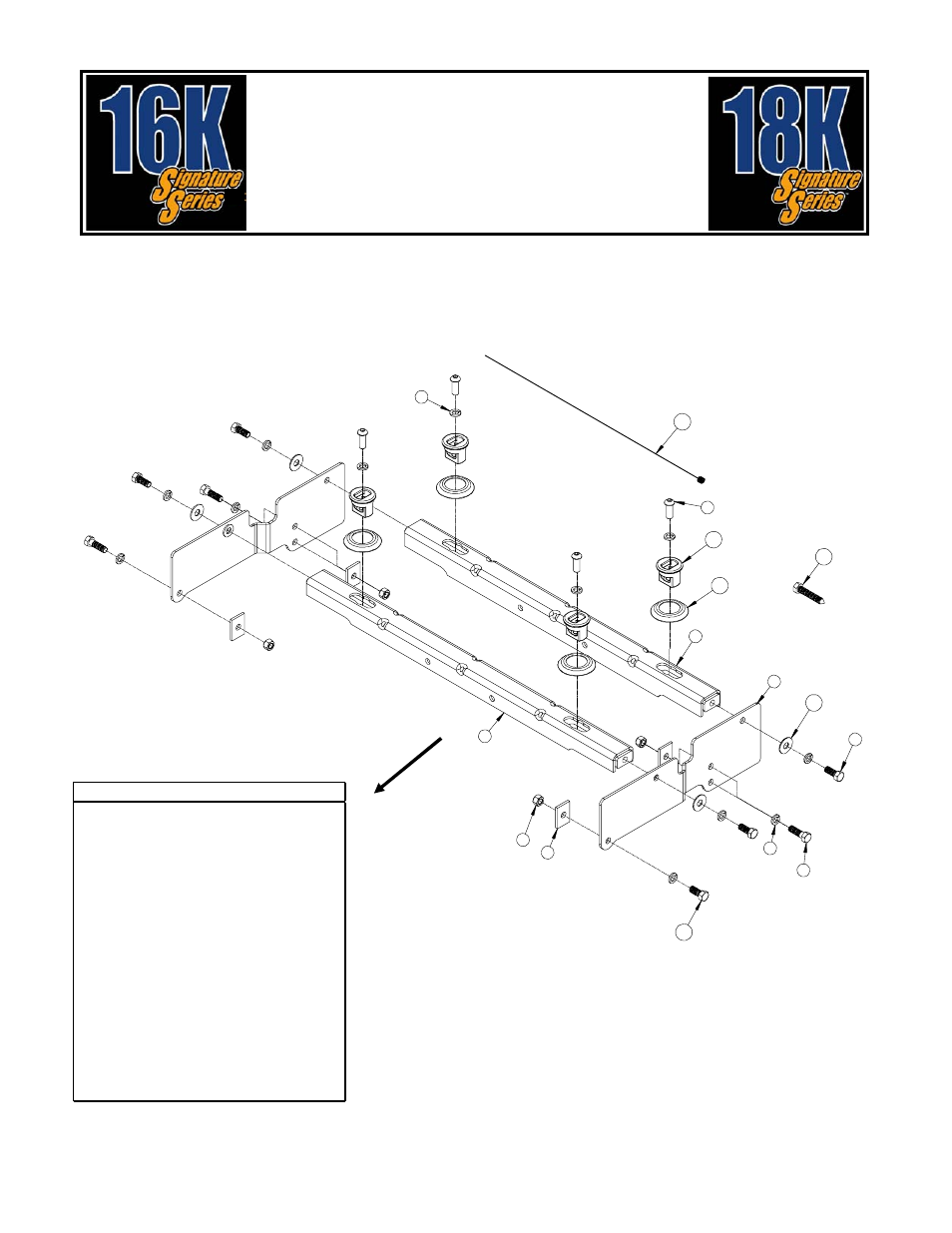

Figure

1

4

2

11

12

3

5

6

8

9

7

1

14

8

13

10

15

PART

QTY.

1. FRONT BASE RAIL (LONG)

(1)

2. BACK BASE RAIL (SHORT)

(1)

3. FRAME BRACKET

(2)

4. 5/8-11 BUTTON HEAD SCREW

(4)

5. 5/8-11 GR8 BOLT 1 1/2" LONG

(4)

6. 5/8-11 GR8 2” LONG

(3)

7. 5/8-11 GR8 NUT

(4)

8. 5/8 LOCK WASHER

(12)

9. SPACER

(4)

10. PULL WIRE

(1)

11. PUCK

(4)

12. TRIM RING

(4)

13. 5/8 FLAT WASHER

(4)

14. 5/8-11 GR8 BOLT 1 1/2" LONG

(1)

W/ LOC-TITE PATCH

15. 5/8-11 X 3 1/2" WITH POINT

(1)
