Reese 44594 PROFESSIONAL RECEIVER - Manual

Installation Instructions
ACURA MDX
Fits with mini spare tire stowed under vehicle.
Will not fit with full size spare.
Part Numbers:
87474
75614
44594
78217
U-Haul
D N E d L f T i V hi l
Fascia/Bumper
Hitch Shown In Proper Position
Equipment Required:
Fastener Kit: 75614F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 5000 (2270 Kg) 500 (227 Kg)
Weight Carrying
Ball Mount
4000 (1816 Kg) 400 (182 Kg)
Wiring Access Location: SUV 1, SUV 2
Fascia/Bumper
Wrenches: 19 mm, 17mm, 10mm
1
Existing weldnuts
Both sides
Heat Shield

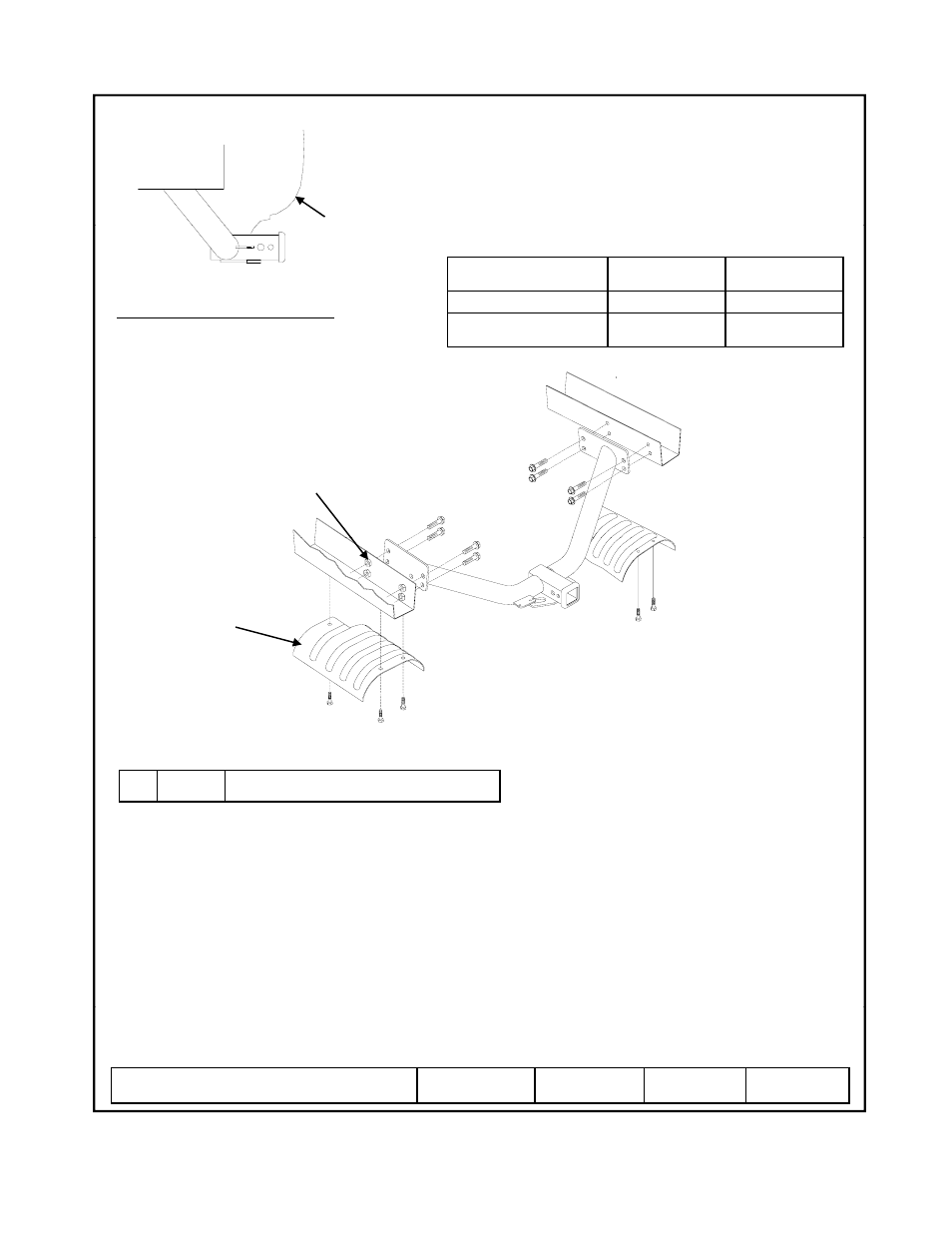

1. Remove spare tire.
2. Lower vehicle exhaust by removing the two rearmost rubber hangers – both sides.
1 Qty. (8) Flanged Hex Bolt, M14 x 1.50 x 40mm CL10.9
Fits with mini spare tire stowed under vehicle. Will not fit with full size spare.
3. Remove heat shields.
4. Raise hitch into position and install (8) M14 flanged hex bolts into existing weldnuts as shown.
5. Tighten all M14 bolts to proper specification.
6. Re-install heat shields – tighten bolts. Re-install exhaust.
7. Re-install spare tire.
Tighten all M14 CL10.9 fasteners with torque wrench to 90 Lb.-Ft. (122 N*M)
Note: check hitch frequently making sure all fasteners and ball are properly tightened If hitch is removed plug all holes in trunk pan or other body panels
z 2007, 2010, 2011 Cequent Performance Products Sheet 1 of 3 75614N 1-7-11 Rev. C
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels
to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when
working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.
Regulation V-5 and SAE J684.
Form: F205 Rev A 5-6-05
